TCT wood boring bits
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- shenzhen, shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | china |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 100000000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| HS Code: | 8205300000 |
| Transportation: | Ocean,Land,Air |
| Port: | shenzhen,shanghai |
Product Description
Product Description

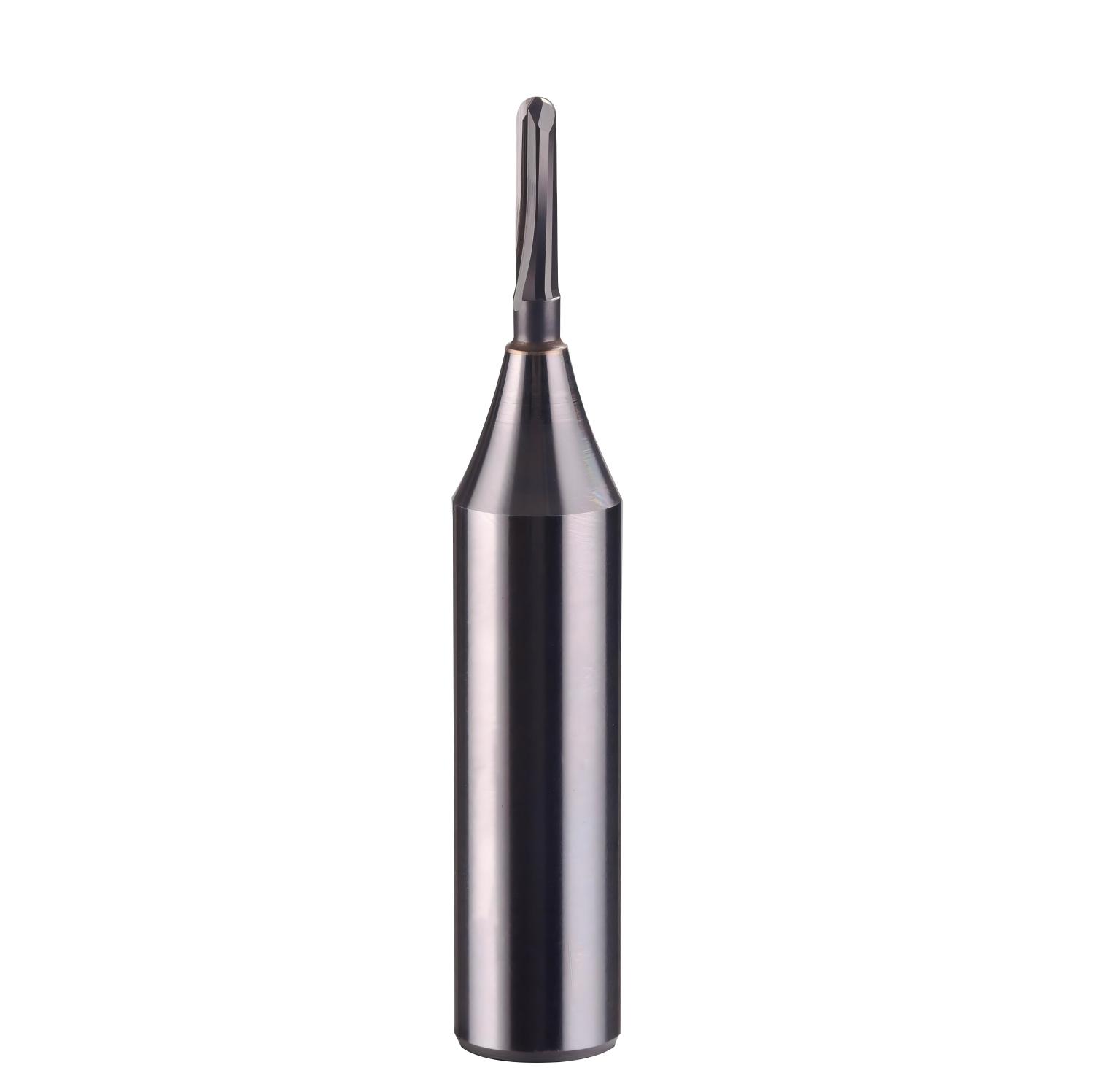

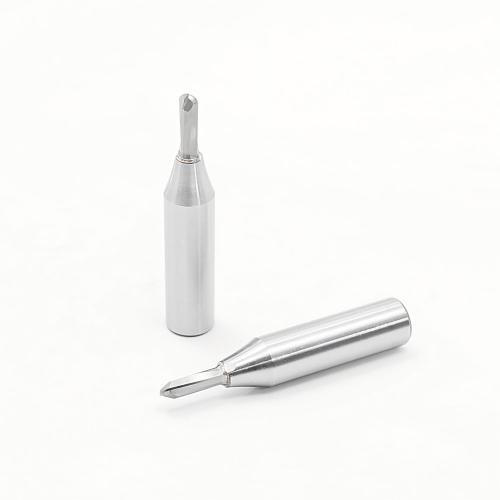

TCT wood boring bits
The design parameters of TCT round bottom cutter include front angle, back angle, end tooth angle, helix angle, and core diameter. These parameters have a significant impact on the cutting performance, durability, and service life of the tool. For example:
Front angle: has a significant impact on cutting force, chip discharge, and tool durability. For processing soft materials such as wooden boards, a larger front angle should be selected, usually between 17 ° and 25 °.
Rear corner: The cutting edge adopts a straight rear corner design to reduce friction between the tool and the workpiece surface, and reduce cutting heat. The design of the rear angle is usually between 13 ° and 25 °.
End tooth angle: The design of end tooth angle helps to improve the cutting ability of the tool, but excessive end tooth angle can lead to rapid wear of the cutting edge. Therefore, the design of the end tooth angle is usually between 2 ° and 10 °.
Spiral angle: The larger the spiral angle, the longer the contact line between the workpiece and the blade, and the smaller the load applied to the blade per unit length, which is beneficial for extending the life of the tool. However, excessive helix angle can also lead to an increase in the axial force of cutting resistance, making the tool more prone to detachment. Therefore, the helix angle of the TCT helical milling cutter is designed between 15 ° and 25 °.
Core diameter: The size of the core diameter has a significant impact on the rigidity and chip space of the cutting tool. A too small core diameter can lead to poor rigidity of the cutting tool and make it easy to break; If the core diameter is too large, there is not enough space for chip storage, which can easily lead to chip blockage.
drill bit for wood carving,wood carving drill bits,wood grinding drill bit
| JLTCTY03082/JLTCTY03081 | 3mm | 8mm | 1/2、1/4 |
| JLTCTY04082/JLTCTY04081 | 4mm | 8mm | 1/2、1/4 |
| JLTCTY05082/JLTCTY05081 | 5mm | 8mm | 1/2、1/4 |
| JLTCTY06082/JLTCTY06081 | 6mm | 8mm | 1/2、1/4 |
| JLTCTY08082/JLTCTY08081 | 8mm | 8mm | 1/2、1/4 |
| JLTCTY142/JLTCT141 | (1/4)" | 8mm | 1/2、1/4 |
| JLTCTY182/JLTCTY181 | (1/8)" | 8mm | 1/2、1/4 |
| JLTCTY3162/JLTCTY3161 | (3/16)" | 8mm | 1/2、1/4 |
| JLTCTY5162/JLTCTY5161 | (5/16)" | 8mm | 1/2、1/4 |
