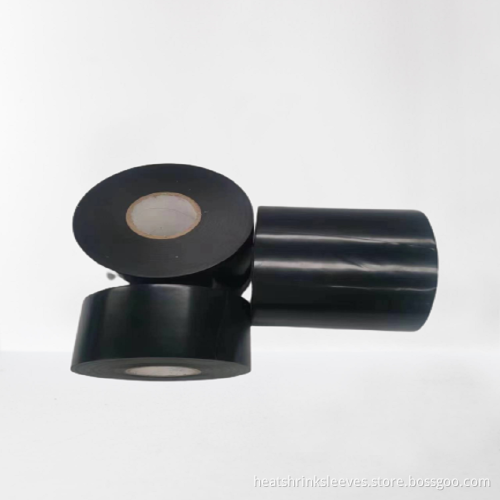

Cold-applied Polymeric Tape Coatings
-
$10.00≥50 Roll
- Min. Order:
- 50 Roll
- Min. Order:
- 50 Roll
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai, Qingdao, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000 Rolls one day |
| Supply Ability: | 3000 Rolls one day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP,Express Delivery |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai,Qingdao,Shenzhen |
Forever’s cold-applied polymeric tape coating are manufactured with polyethylene or polypropylene as the main coating material coated with a layer of proprietary formulation consisting of butyl rubber and with suitable primers to obtain the required coating properties under the prevailing installation and operating conditions.Forever’s cold-applied polymeric tape coating system providing reliable corrosion protection and mechanical resistance to metal pipes, underground steel pipes, and bare bends and girth weld joints of PE, Epoxy & PP coated pipes by manual and mechanical application.
The installed product provides outstanding adhesion and elastic properties. It has excellent anti-aging and UV resistance properties. The high tensile strength and elongation of the backing material offers superior mechanical protection.
Forever’s cold-applied polymeric tape coating system are used Innerwrap tape, Outerwrap tape and Joint wrap tape by customers’ requirements with various sizes
Typical Physical Properties
Innerwrap tape
|
Properties |
Unit |
Test Method |
Series No.& Values |
|||||||
|
T100/15 |
T100/20 |
T100/25 |
T100/30 |
|||||||
|
Total Thickness |
mm |
ASTM D1000 |
0.38 |
0.51 |
0.64 |
0.75 |
||||
|
Backing Thickness |
mm |
ASTM D1000 |
0.25 |
0.25 |
0.31 |
0.35 |
||||
|
Adhesive Thickness |
mm |
ASTM D1000 |
0.13 |
0.26 |
0.33 |
0.40 |
||||
|
Tensile Strength |
N/cm |
ASTM D1000 |
＞60 |
＞60 |
＞60 |
＞60 |
||||
|
Elongation |
% |
ASTM D1000 |
＞550 |
＞550 |
＞550 |
＞550 |
||||
|
Adhesion Strength |
To P.E Lining |
N/cm |
ASTM D1000 |
5 |
5 |
5 |
5 |
|||
|
To Steel Pipe |
N/cm |
ASTM D1000 |
20 |
23 |
27 |
28 |
||||
|
Dielectric Breakdown |
Kv |
ASTM D1000 |
35 |
35 |
35 |
35 |
||||
|
Insulation Resistance |
Ω.cm |
ASTM D257 |
1012 |
1012 |
1012 |
1012 |
||||
|
Water Vapor Transmission |
perms |
ASTM E96 |
＜0.13 |
＜0.13 |
＜0.13 |
＜0.13 |
||||
|
Water Absorption |
% |
ASTM D570 |
＜0.05 |
＜0.05 |
＜0.05 |
＜0.05 |
||||
|
Recommended application temperature |
℃ |
-- |
-5 to +50℃ |
|||||||
|
Max temperature |
℃ |
-- |
-40 to +85℃ |
|||||||
Sichuan Forever main products has heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping materials application tooling. Cold-Applied Polymeric Tape covered ,Innerwrap Tape,Outerwrap Tape,UV-Resistant Tape,Petrolatum Coating System,Double Sided Adhesive Tape
