3 Lpp Coated Pipe Joints Field Materials
-
$100.00≥100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- Shenzhen, Qingdao, Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 sets |
| Supply Ability: | 5000 sets |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO |
| HS Code: | 3919 |
| Transportation: | Ocean,Land |
| Port: | Shenzhen,Qingdao,Tianjin |

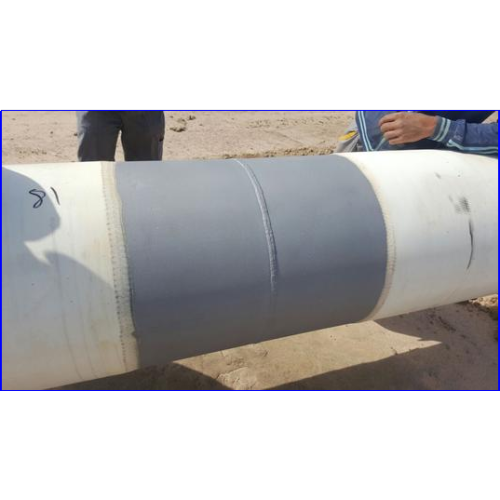

3LPP High Temperature Wrap Around Sleeve
System Description
The pipeline 3 LPP 110C heat shrink coating system designed for 3LPP corrosion protection of high temperature of straight pipes, fittings, bends, elbows and other irregular configurations, designed for three layer field joint coating system for polypropylene coated pipeline and a three layer bend coating.
The shrink sleeves consist of a heat shrinkable polypropylene material pre-coated internally with an adhesive. The closure patch is coated with a heat activated, high shear adhesive .
When heated the backing layer shrinks and the adhesive flows and forms a reliable corrosion protection seal onto metal and adjacent coating surfaces.
Epoxy primer is a specially formulated 100% solid two components is applied to all exposed metal surfaces without leaving holidays, runs or sags. The prime is applied in a uniform coat by brush or roller to obtain a dry film thickness in accordance with the instructions.
Product Features
3LPP is comprised of the same materials as, and offers equivalent performance to, the 3LPP factory-applied coating as follows:
3LPP sleeve offers the hardness, mechanical protection and resistance to moisture absorption required on critical higher temperature, and often deepwater, pipelines.
High Temperature Epoxy on the Steel provides resistance to corrosion and to cathodic disbandment while allowing relatively low installation temperatures.
PP Adhesive bonds the polypropylene sleeve to the epoxy layer and fuses to the 3LPP factory-applied coating where the joint coating overlaps to eliminate the possibility of moisture ingress.
|
Item |
Test items |
Test standard |
Unit |
3LPP HSS |
|
Configuration |
Operating Temperature |
- |
℃ |
Up to 120 |
|
|
Liquid epoxy (heat cured) |
ASTM D 1000 |
μm |
≥200 |
|
|
Polypropylene adhesive layer |
ASTM D 1000 |
mm |
≥0.8 |
|
|
Polypropylene outer sheath layer |
ASTM D 1000 |
mm |
≥1.2 |
|
|
Sleeve width |
ASTM D 1000 |
mm |
150-600 |
|
|
Total thickness |
ASTM D 1000 |
mm |
2.0-3.0 |
|
Adhesive |
Thickness as supplied |
ASTM D 1000 |
mm |
≥ 0.8 |
|
|
Density |
ASTM D792 |
kg/dm3 |
0.89-0.99 |
|
|
Melting point |
ASTM D3418 |
℃ |
130~140 |
|
|
Lap Shear, at 23±2℃ |
EN 12068 |
N/cm |
≥500 |
|
|
Lap Shear, at 120±2°C |
EN 12068 |
N/cm |
≥10 |
|
Backing (PP) |
Density |
ASTM D792 |
kg/dm3 |
0.89-0.99 |
|
|
Tensile Strength, at 23±2℃ |
ASTM D638 |
MPa |
≥25 |
|
|
Elongation, at 23±2℃ |
ASTM D638 |
% |
≥300 |
|
|
Hardness |
ISO 868 |
Shore D |
≥.65 |
|
|
Water Absorption,per 24 hrs |
ASTM D570 |
% |
<0.5 |
|
|
Dielectric Strength |
ASTM D149 |
kV/mm |
≥25 |
|
|
Melting point |
ISO 3146 |
℃ |
≥150 |
|
|
UV Resistance |
EN12068,Annex F ISO 4892-2 DIN 30670 |
- |
According to standard |
|
|
Brittleness temperature |
ASTM D 746 |
℃ |
＜-20 |
|
|
Volume Resisitivity |
ASTM D 257 |
Ω.m |
2.0X1015 |
In a nutshell,Heat Shrinkable Sleeves covered
