Permanent Change Indicator Heat Shrinkable Sleeve WPC 60
-
$10.00≥100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- Shenzhen, Shanghai, Qingdao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 2000 SETS PER DAY |
| Supply Ability: | 2000 sets per day |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO 9001,ISO 14001,OHSAS 18001 |
| HS Code: | 3920 |
| Transportation: | Ocean,Land |
| Port: | Shenzhen,Shanghai,Qingdao |

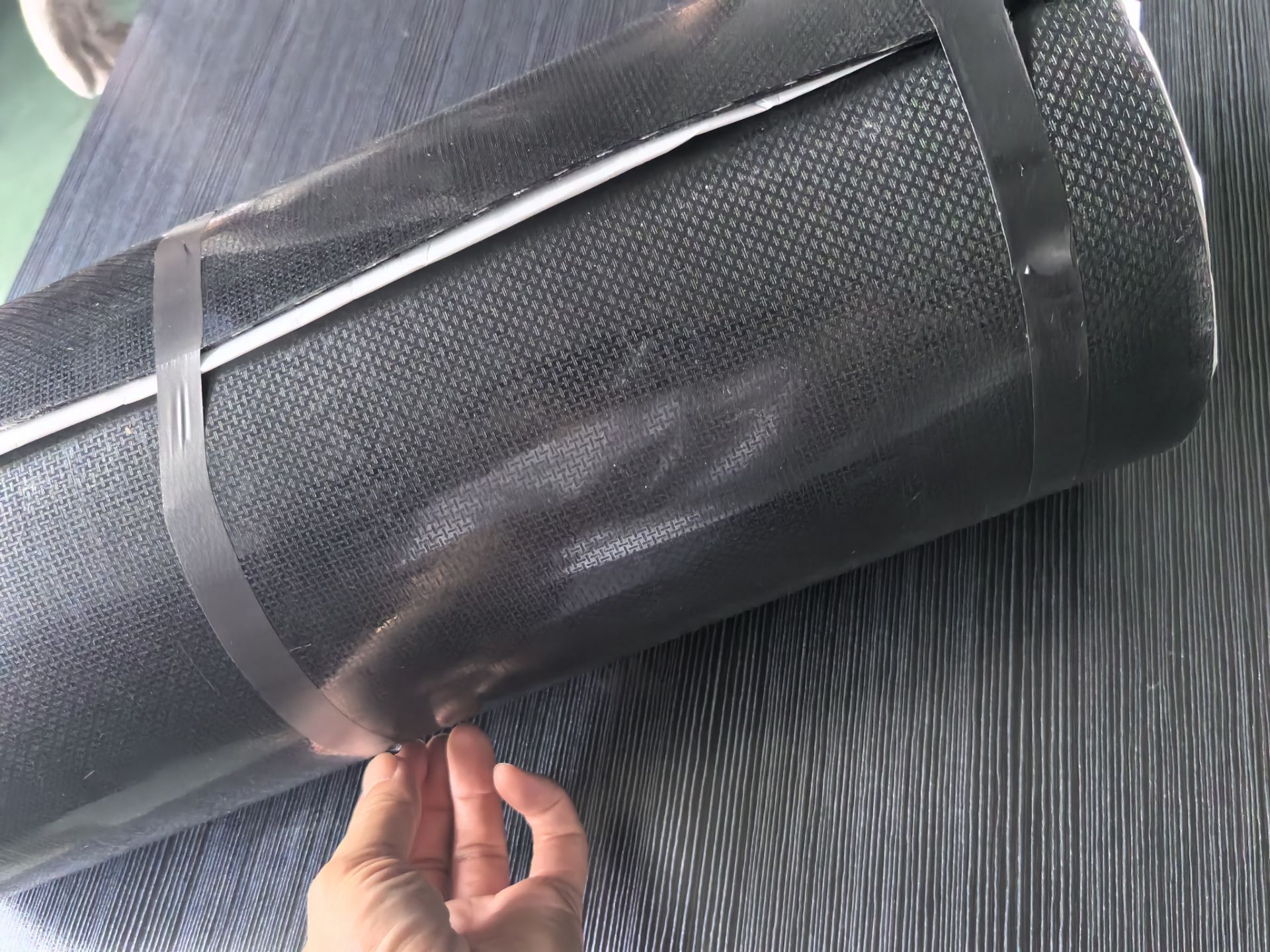

Product Profile -PCI HEAT SHRINKABLE SLEEVE
HT60 is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 65°C
The inner layer is two-components epoxy primer which coated on steel pipe; Intermediate level is special hot melt adhesive ;
Outer layer is modified radiation crossing linking polyethylene backing.
3LPE 60C Heat Shrink Sleeves is developed by this Company on the basis of the original product. It is the first of the same kind in China. Currently, the product is well above the domestic anti corrosive professional standards and reaches the standard requirement of EN12068,ISO21809-3 and ASTM as well.
3LPE 60C Heat Shrink Sleeves product uses the polyethylene produced by ATOFINA of France and many other auxiliary materials as base materials. The mechanic performance targets such as indentation resistance, impact resistance and tensile strength have reached EN12068 standards. And its aging-resistance and ultraviolet rays-proof performance have met the requirements of ASTMD638 standards.
Features & Benefits -PCI HEAT SHRINKABLE SLEEVE
●Heat shrink wrap Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbandment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature,,long term protection against corrosion.
● HT60 is a wraparound sleeve with a separate closure
● Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
● High performance adhesive provides excellent resistance to Cathodic Disbandment to ensure long-term corrosion protection
● Just-in-time customized lengths allow bulk rolls to be field cut top protect any pipe size
● Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.
● HT 60 Heat shrink wrap sleeves compatible with PE/FEB,COAL TAR/DFBE line coatings
| Compatible Line Coating | PE/FBE/Coal Tar/DFBE |
| Standard | ASTMD 638,ASTM D 2240,ASTM D 149,ASTM D 570,ASTM D 1000,ASTM D 870,ASTM D 2671,ASTM E 28,ASTM G 14,EN 12068,ISO 21809-3 |
| Sleeve Backing thickness | 0.80mm,1.0mm,1.2mm,1.5mm |
| Hot melt adhesive thickness | 0.60mm,0.7mm,0.8mm,1.0mm,1.2mm,1.5mm |
| Sleeve Width | 300mm,350mm,450mm,470mm,500mm,520mm,600mm |
| Sleeve Length for one joints | DIX1.07+0.12m |
| PE Backing Density | ≥0.95 gm/cc |
| Hardness of PE backing | ≥50 Shore D |
| Ring and Ball Softening Point of adhesive | ≥90°C |
| Lap Shear Strength at 10mm/min | ≥3.0N/sq.mm |
| Peel Strength of installed sleeve 10mm/min | ≥5.0 N/mm |
