Customized Bop VBR RAM Assembly Rubber Sealing Packers
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 800000 pieces / year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | EXW,CIF,CFR,FOB |
| Certificate: | API |
| Transportation: | Ocean,Air,Express,Land |
Product Description
Product Description
Customized Bop VBR RAM Assembly Rubber Sealing Packers
Xinwei Rubber Co., Ltd. is a professional oil and gas drilling equipment well control rubber seals and passenger ropeway wheel lining, research and development, manufacturing, sales of modern manufacturers. Its technology won the national high-tech enterprise skills. With international advanced production specialized equipment, the annual output of more than 800,000 pieces of oil drilling and production well control rubber sealing equipment and passenger ropeway. Sufficient supply of domestic and foreign merchants purchasing needs. Our products and domestic and foreign mainstream blowout preventer manufacturers supporting equipment and can be used interchangeably.
Product Description
| Model Number | Ordinary ram packer |
| Application | Oil Field Drill Through |
| Features | High-Quality& Independent R & D |
| Condition | Used |
| Production Capacity | 500/M |
| Applicable Industries | Energy & Mining |
| Core Components |
Vbr Rubber Packer&Seal Kit
|
| Certification | API ISO |
| Advantage |
1. Increase the integral packing performance of RAM. 2. Will not be washed away by borehole fluid 3. After the closure of the hydraulic control pressure to maintain the seal |

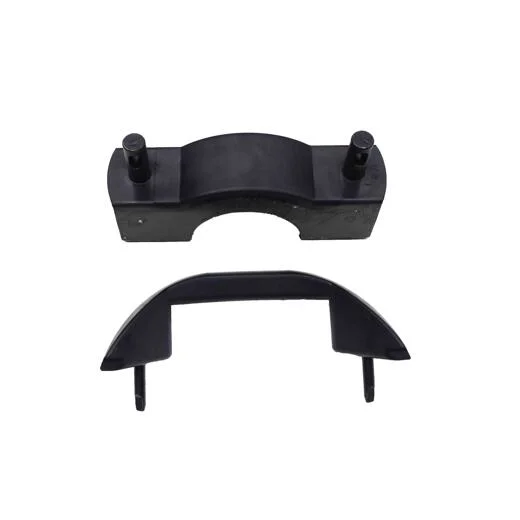

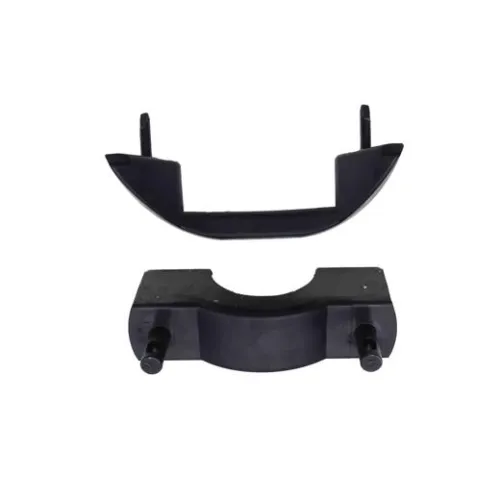

This kind of VBR Packer is installed on the maximum specification of ordinary ram blocks( for example,5"-5 1/2" packing should be installed on the 5 1/2" ram block),thus can seal on different sizes pipes within the diameter range.The two small inserts in the middle along with the big insert fan shaped slide outward as pipe size become larger and along with the big insert fan shaped slide inward as pipe size become smaller.
1,It is applicable to existing well control BOP ordinary ram block, as long as the existing ordinary ram block is available, it can be used to install the new utility model variable packer.
2,a kind of VBR packer can be applied to seal on a variety of specifications drill pipe within a certain range.For 3 1/2"-5" VBR packerit,it can be installed on 5" ordinary ram block to seal on 3 1/2",4",4 1/2" and 5" drill pipe,thus reduce the store and change of these three k inds of ordinary ram packers and ram blocks; save and reduce the store and change of these three kinds of ordinary ram packers and ram blocks: save and reduce a lot of manpower ,material resources and financial resources; speed up the drilling progress; when change the ram assembly, greatly reduced the risk of well
control.
2,a kind of VBR packer can be applied to seal on a variety of specifications drill pipe within a certain range.For 3 1/2"-5" VBR packerit,it can be installed on 5" ordinary ram block to seal on 3 1/2",4",4 1/2" and 5" drill pipe,thus reduce the store and change of these three k inds of ordinary ram packers and ram blocks; save and reduce the store and change of these three kinds of ordinary ram packers and ram blocks: save and reduce a lot of manpower ,material resources and financial resources; speed up the drilling progress; when change the ram assembly, greatly reduced the risk of well
control.
1. Q: Does the temperature of sealing element can reach -40ºC~ -50ºC?
A: Sure, what's the environment temperature of your working conditions? It's also depends on your storage conditions. Don't put them in open space. When you replace the packing unit, you should let it reach the room temperature, then you can install it. Otherwise, it would crush easily.
2. Q: What's the temperature range of your products?
A: -45ºC~180ºC
3. Q: Which company do you supply for?
A: Our products can match and interchange most of domestic BOP manufactures, such as Goldenman, Dongying Lake, Dongying Jintan,Dongying Robust, Dongying Sino, Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoshi Drilling, Jiangsu Xinde, Jiangsu Sanyi, Baoji Saifu etc. Over the years usage in the oil fields, It has been proved that all the technical requirements and performance of our products can reach the standard of Shaffer, Hydril, Cameron sealing elements for replacement.
4. Q: Are you factory or Trading Company?
A:We are factory. Our company is specialized in producing bop rubber packer ,such as annular bop packer ,ram bop packer ,shearing ram packer ,vbr ram packer.
5.Q: Handling time for an order
A: Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
6. Q: After Services
A: 1. Our sales team will response for your question within 24 hours (Holidays Excluded).
2. Technical Support will be available in any time.
3. Free replacement will provide once the failure confirmed caused by our product quality.
7. Q: Ports of Shipment
A: Tianjin,Qingdao,Shanghai or other required ports.
2. Q: What's the temperature range of your products?
A: -45ºC~180ºC
3. Q: Which company do you supply for?
A: Our products can match and interchange most of domestic BOP manufactures, such as Goldenman, Dongying Lake, Dongying Jintan,Dongying Robust, Dongying Sino, Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoshi Drilling, Jiangsu Xinde, Jiangsu Sanyi, Baoji Saifu etc. Over the years usage in the oil fields, It has been proved that all the technical requirements and performance of our products can reach the standard of Shaffer, Hydril, Cameron sealing elements for replacement.
4. Q: Are you factory or Trading Company?
A:We are factory. Our company is specialized in producing bop rubber packer ,such as annular bop packer ,ram bop packer ,shearing ram packer ,vbr ram packer.
5.Q: Handling time for an order
A: Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
6. Q: After Services
A: 1. Our sales team will response for your question within 24 hours (Holidays Excluded).
2. Technical Support will be available in any time.
3. Free replacement will provide once the failure confirmed caused by our product quality.
7. Q: Ports of Shipment
A: Tianjin,Qingdao,Shanghai or other required ports.
