Trolley Ultrasound Machine Color Doppler Scanner

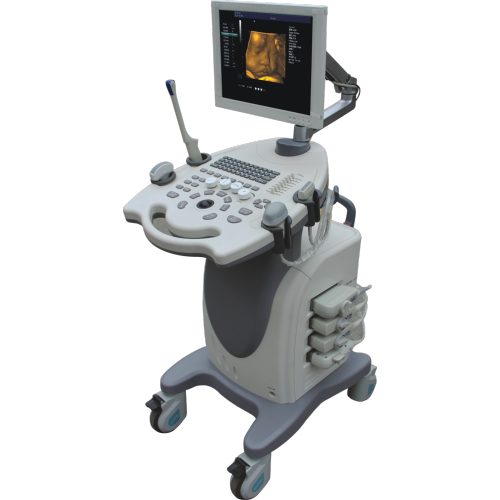

MDK-9800 Trolley Ultrasound Machine Color Doppler

MDK-9800 adopts the core technology of United Stats. It is a kind of ultrasound imaging system based on PC and ultrasound front-end combined with kinds of advanced image processing technology of the United States.

MDK-9800 is not only applied to kinds of conventional ultrasonic diagnosis as black and white ultrasound scanner, it is also applied to the diagnosis with high image quality as CVD, and so on.

Functionally, it is equipped with the functions of image scanning, measurement, calculation, display, query, body mark, annotate, printing, medical records storage, edit the inspection report, system settings, etc. It supports DICOM (Digital Imaging and Communication in Medicine) protocol, which is a medical imaging with international standard and widely accepted.

Data and information communication can be easily carried out. It also can connect to PACS（Picture Archiving and Communication System）as a terminal. PACS is a medical picture archiving and communication systems, which greatly facilitates network management system of the hospital. It is convenient for remote diagnosis. The machine is powerful, convenient and easy to operate, supports B, B/B, B/4B, B/M, B/PWD, CFM, CDE, B/CFM/D.

Meanwhile, the display can be moved from up and down, forward and backward, turn to left and right, that is really convenient.

Our products：
Black and White Ultrasound Scanner
Color Doppler Ultrasound Scanner
Veterinary Ultrasound Scanner

Field of Application

The instrument mainly applies in the dynamic image diagnosis of liver, gallbladder, spleen, kidney, pancreatic gland, heart and other organs, as well as gynecology, obstetrics examinations, pregnancy and contraception examination.

Probes:

Convex array probe: 128 elements, R50 (Frequency=2.0/3.0/3.5/4.0/5.5 MHz);

High Frequency Linear Array Probe: 128 elements, R40 (Frequency = 6.0/ 6.5/ 7.5/ 10/ 12 MHz);

Trans Vaginal Probe: 128 elements, R10 (Frequency=5.0/6.0/6.5/7.5/9.0 MHz);

Phased Array Probe: 64 elements, R20 (Frequency=2.0/2.1/3.5/4.0/5.0 MHz).

Transducer Ports: 2

Depth: ≥300mm

Lateral Resolution: ≤1mm (Depth≤80mm)

  ≤2mm (80< Depth≤130mm)

Axial Resolution: ≤1mm (Depth≤80mm)

  ≤2mm (80< Depth≤130mm)

Blind Area：≤5 mm

Geometry Position Precision: horizontal≤10%

      vertical≤10%

Channels: 64

Displayer: 15 inch LCD (PAL displayer is optional)

External Display: PAL, VGA

USB Ports: 2

Gray scale: 256 levels

Voltage: AC220V  ±10％

Current: 3A

UPS-DP: DC12.8V, 11.5A

Input power: ≤ 300VA

Continuous working hours: ≥8h

Scanning mode: B, B/B, 4B, B/M, M, B+C, B+D, B+C+D, PDI, CF
