Hot Sale Full Digital Diagnostic Ultrasound Scanner

Hot Sale Full Digital Diagnostic Ultrasound Scanner

$745.00 - $1240.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Land, Ocean, Air, Express, Others

Port:: Ningbo, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500
Supply Ability:	500 pieces per month
Payment Type:	T/T
Incoterm:	FOB
Transportation:	Land,Ocean,Air,Express,Others
Port:	Ningbo,Shanghai,Shenzhen

Product Description

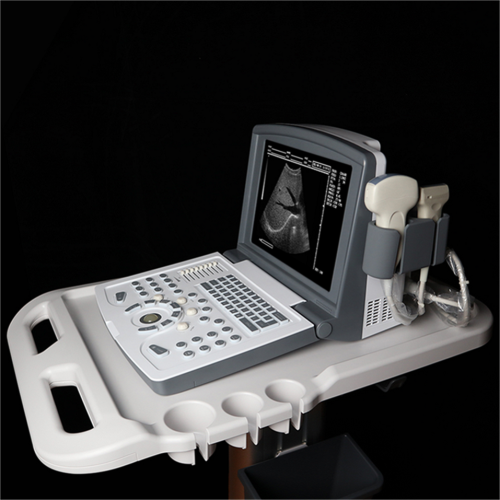

Hot Sale Full Digital Diagnostic Ultrasound Scanner（Built-in battery）

Clinical Application

Applied to clinical ultrasound examination of abdomen, obstetrics, gynecology, small organ, superficial organs, urology, cardiology and cardiovascular.

Main Features :

◆The device has well compatibility, transplantable character, and flexible expansibility.

◆It adopts advanced full digital beam-forming, real time dynamic aperture, real time dynamic receiving apodization, real time dynamic receive focusing, frame correlation, modern image processing technology etc., which improves image quality.

◆The system can be taken conveniently for notebook type, built-in battery, high integration of unit, small volume, light weight. ◆It adopts flexible and shortcut trackball operation, which greatly quicken the test speed.

◆Neat and convenient image managing function which can print report directly.

◆It includes rich measuring software packages:obstetrics, gynecology, cardiology, urology, small parts. Many probes can be chosen, and wide application can satisfy the clinic diagnostic need fully.

◆Total gain can be adjustable.

◆Can be connected to the video printer

Images

Technical Specifications

Probe		C3-1/60R/3.5MHz Convex probe	L3-1/7.5MHz High frequency liner probe	C1-6/20R/5.0MHz Micro convex probe	EC1-1/13R/6.5MHz Transvaginal probe
Display Depth（mm）		adjustable
Scan Depth（mm）		≧160	≧50	≧80	≧40
Resolution（mm）	Lateral	≦3（depth≦80） ≦4 (80＜depth≦130）	≦2 （depth≦40）	≦2 （depth≦40）	≦2 （depth≦30）
	Axial	≦2（depth≦80） ≦3（80＜depth≦130）	≦1 （depth≦40）	≦1 （depth≦40）	≦1 （depth ≦40）
Blind Area（mm）		≦5	≦3	≦5	≦4
Geometry Position（%）	horizontal	≦15	≦10	≦20	≦10
	vertical	≦10	≦5	≦10	≦5
LCD Size		9.7 Inch/12 Inch
Display Mode		B, B+B, B+M, M, 4B
Gray Scale		256 levels
Cine Loop		N400 frames
Image Storage		64 frames
Scanning Angle Adjustment		support
Image Rollovers		up/down, left/right
Image Processing		Image Smoothing/Sharpening, tissue harmonic, Histogram, DR and Pseudo-color
Measurement		Distance, circumference, area, volume, heart, GA, FW, EDD
Character Display		Date, clock, name, PID, age, Sex, hospital name, doctor
Notation		full-screen character editor, body mark, position indication
Report Type		4
Power Consumption（MAX）		100VA
