Portable Color Doppler Ultrasound Machine for Obstetrics

Portable Color Doppler Ultrasound Machine for Obstetrics

$2100.00 - $3500.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Ningbo, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	500 pieces per month
Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Ningbo,Shanghai

Product Description

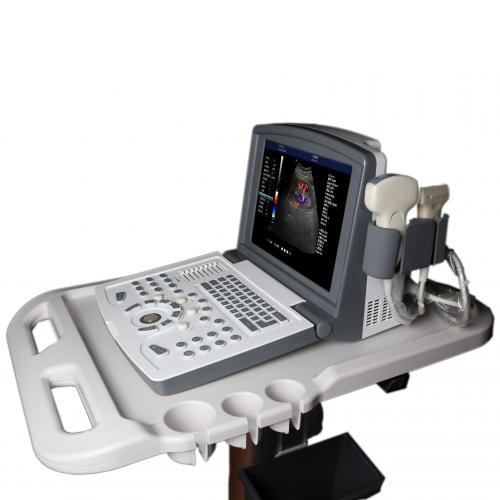

Portable Color Doppler Ultrasound Machine for Obstetrics（MDK-680）

Obstetrical color ultrasound examination is mainly to check the development of the fetus in utero. Color ultrasound can be used to measure the fetal double parietal diameter, head circumference, abdominal circumference and femur length to judge the size of the fetus. In addition, placental maturity, amniotic fluid, fetal heart movement, and whether there are obvious fetal development deformities can be observed

Five purposes of B-ultrasound during pregnancy

1, to see whether the growth and development of the fetal baby is consistent with the gestational week;

2. Look at the safety of the fetus in utero;

3, to see if the baby is deformed;

4. Predict the likelihood of premature birth;

5, to see if you will suffer from pregnancy-induced hypertension.

How many times should routine B ultrasound be done during pregnancy?

If everything is normal during pregnancy, usually, the expectant mother will do 2 to 3 B-ultrasound examinations during pregnancy, respectively in 18 to 24 weeks of pregnancy, 36 weeks of pregnancy after. Pregnancy B ultrasound examination time is not too early, under normal circumstances, it is best not to do B ultrasound within 12 weeks of pregnancy, especially in the early pregnancy.

Our products：
Black and White Ultrasound Scanner
Color Doppler Ultrasound Scanner
Veterinary Ultrasound Scanner

parameter

No.	Item	Index
<1>	Depth	≥300mm
<2>	Lateral Resolution	≤1mm (Depth≤80mm) ≤2mm (80< Depth≤130mm)
<3>	Axial Resolution	≤1mm (Depth≤80mm) ≤2mm (80< Depth≤130mm)
<4>	Blind Area	≤5 mm
<5>	Geometry Position Precision	horizontal≤10% vertical≤10%
<6>	Language	English/Chinese
<7>	Channels	32
<8>	Displayer	12” LED
<9>	External Display	PAL, VGA, USB
<10>	Gray Scale	256 levels
<11>	Voltage	AC220V ±10％
<12>	Operating System	Windows 7
<13>	Scanning Mode	B, B/B, 4B, B/M, M, B+C, B+D, B+C+D, PDI, CF, PW
<14>	Probe	Probe sockets: 2 Probe frequency: 2.0MHz ～ 10.0MHz, 8-step frequency conversion
<15>	Adjustment parameters of color blood flow image	Doppler frequency, sampling frame position and size, baseline, color gain, deflection angle, wall filtering, cumulative times, etc
<16>	Signal processing	With dynamic filtering and quadrature demodulation With total gain adjustment Gain adjustment: 8-segment TGC The total gain of Type B, Type C and Type D can be adjusted respectively B/W image gain and color blood flow gain are adjustable respectively
<17>	Doppler	Doppler baseline adjustment level 6 Pulse repetition frequency can be adjusted separately: CFM PWD With D linear speed regulation
<18>	Digital beam forming	Continuous dynamic focusing of digital beam forming image Full range dynamic aperture of image Dynamic tracing of the whole image Weighted Sum of Image Whole Process Receiving Delay Support half step scanning and ± 10 ° linear receiving deflection angle Multi beam parallel processing technology
<19>	Basic measurement and calculation function	Basic measurement in mode B: distance, angle, perimeter and area, volume, stenosis rate, histogram, cross-section
		Basic measurement of M-mode: heart rate, time, distance and speed
		Doppler measurement: time, heart rate, speed, acceleration
<20>	Obstetric measurement and calculation function	G.A, EDD, BPD-FW, FL, AC, HC, CRL, AD, GS, LMP,HL,LV,OFD

Send your message to this supplier

* From:
* To:

Ms. Shirley Feng
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Color Doppler Ultrasound Machine for Obstetrics , Obstetric Color Ultrasound , Obstetrical Examination Instrument
