b/w laptop ultrasound machine for pregnancy

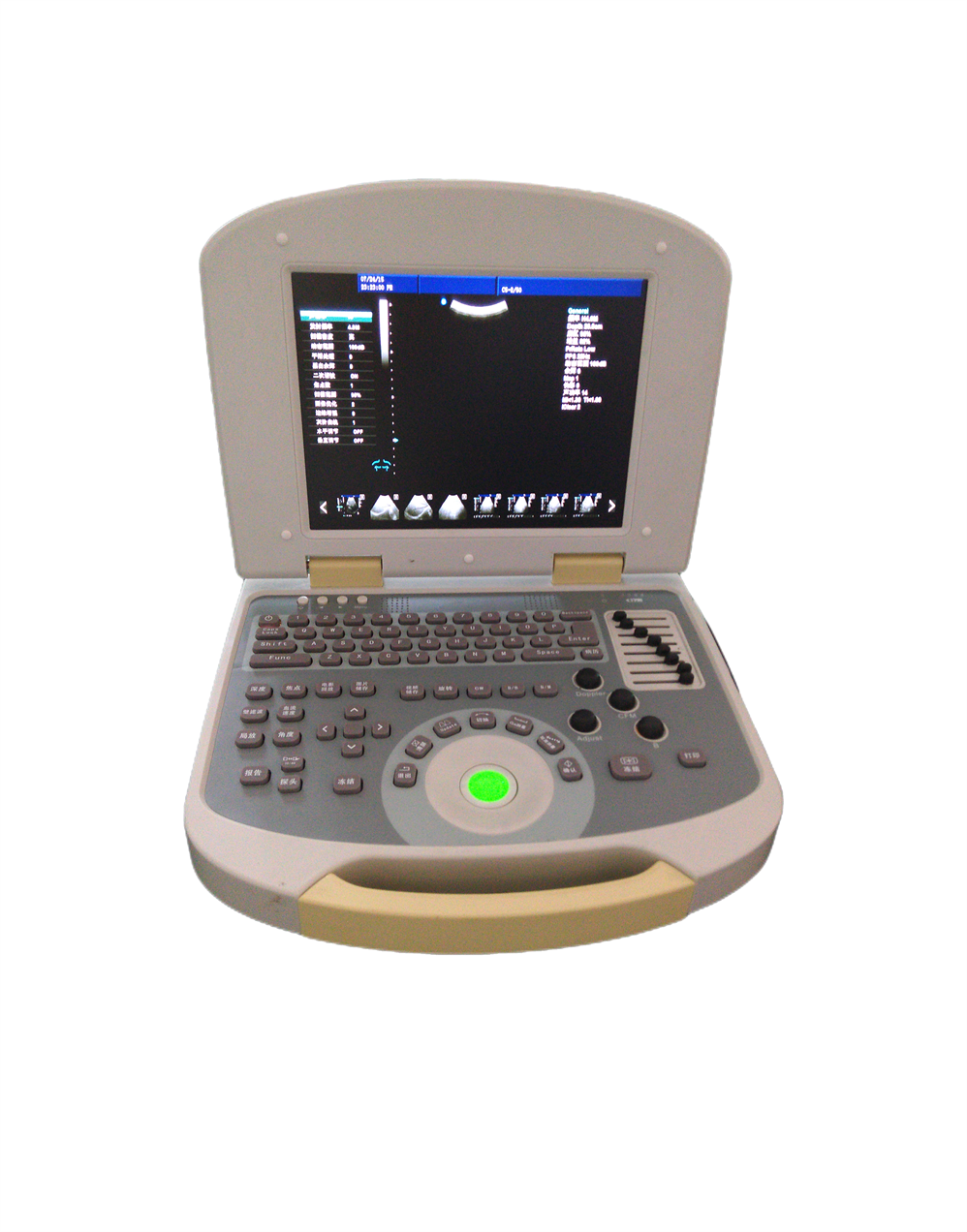

MDK-850 b/w laptop ultrasound machine for pregnancy（MDK-850）

Our products：
Black and White Ultrasound Scanner
Color Doppler Ultrasound Scanner
Veterinary Ultrasound Scanner

 Main Technical Specifications

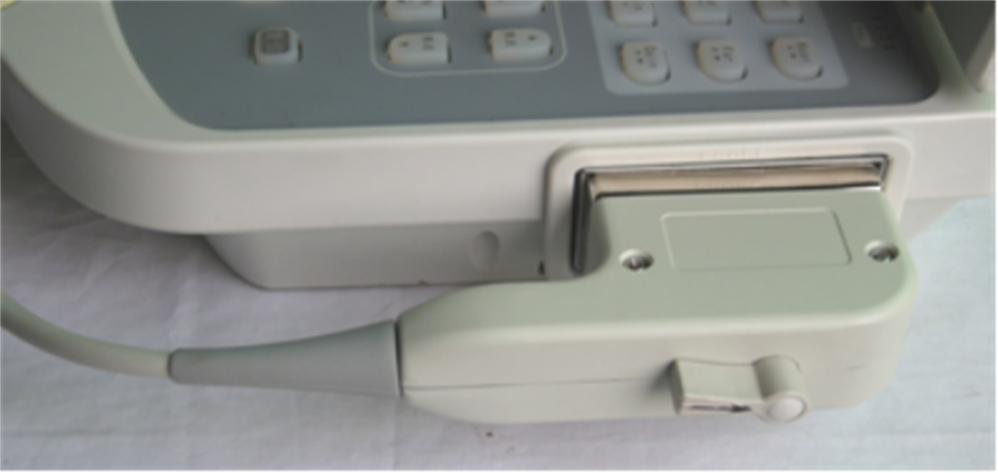

probe：     96 elements  R60.

Frequency:  3.5MHz（multi-frequency probe is optional）.

Scanning depth:   ≥170mm.

Lateral resolution:  ≤2mm(depth≤80mm).

     ≤3mm(80<depth≤130mm).

Longitudinal resolution:  ≤1mm(depth≤80mm).

                          ≤2mm(80<depth≤130mm).

Blind： ≤5 mm。

Geometric position accuracy:  lateral≤15%.

                                           Longitudinal≤10%.

Monitor： 10.4inch high-resolution SVGA screen（PAL monitor is optional）.

Grey scale： 256

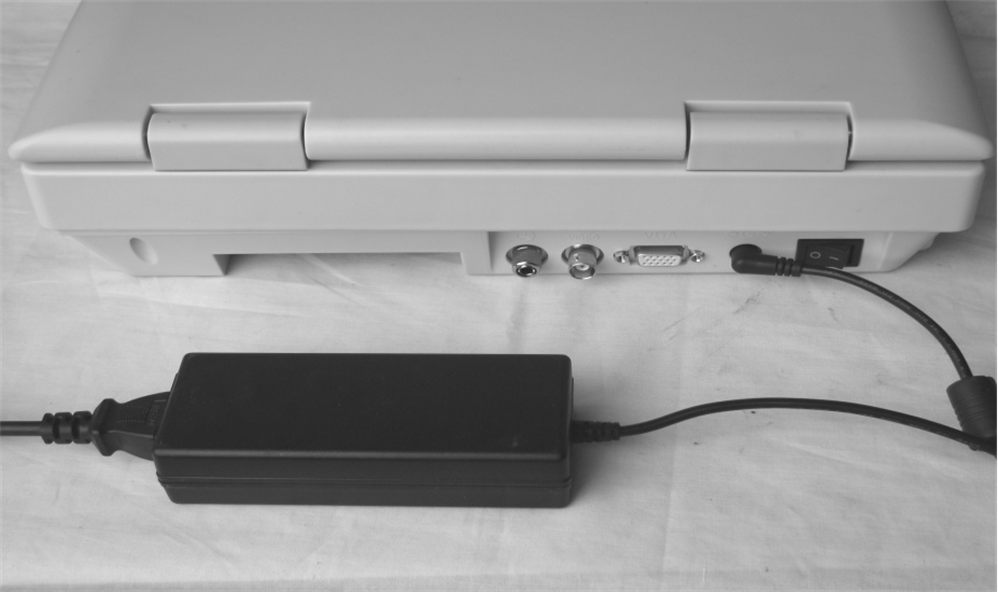

Power： AC 220V±22V 50Hz.

Input power： ≤ 300VA.

Continuous work hours： ≥8h.
