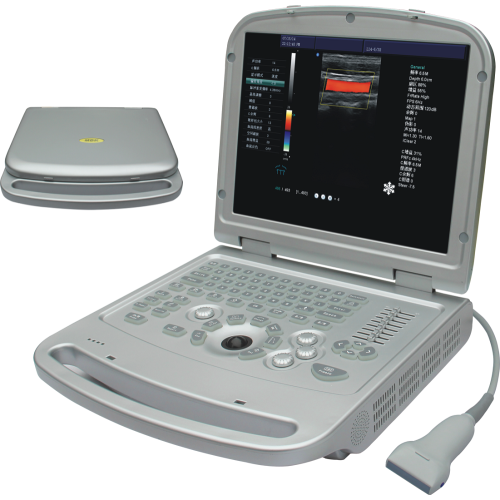

Color doppler laptop ultrasonic machine

Our products：
Black and White Ultrasound Scanner
Color Doppler Ultrasound Scanner
Veterinary Ultrasound Scanner

Probes:

Convex array probe: 80 elements, R50 (Frequency=2.0/3.0/3.5/4.0/5.5 MHz);

High Frequency Linear Array Probe: 80 elements, R40 (Frequency = 6.0/ 6.5/ 7.5/ 10/ 12 MHz);

Trans Vaginal Probe: 80 elements, R10 (Frequency=5.0/6.0/6.5/7.5/9.0 MHz);

Phased Array Probe: 64 elements, R20 (Frequency=2.0/2.1/3.5/4.0/5.0 MHz).

Depth: ≥300mm

Lateral Resolution: ≤1mm (Depth≤80mm)

≤2mm (80< Depth≤130mm)

Axial Resolution: ≤1mm (Depth≤80mm)

≤2mm (80< Depth≤130mm)

Blind Area：≤5 mm

Geometry Position Precision: horizontal≤10%   vertical≤10%

Channels: 64

Displayer: 15 inch LCD (PAL displayer is optional)

External Display: PAL, VGA

Gray scale: 256 levels

Voltage: AC220V  ±10％

Current: 3A

UPS-DP: DC12.8V, 11.5A

Input power: ≤ 300VA
