4340 Connecting rod H-beam for Honda D16A

4340 Connecting rod H-beam for Honda D16A

$20.00

≥16 Piece/Pieces

Min. Order:: 16 Piece/Pieces

Min. Order:: 16 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	1000
Supply Ability:	1000
Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air,Express
Port:	SHANGHAI

Product Description

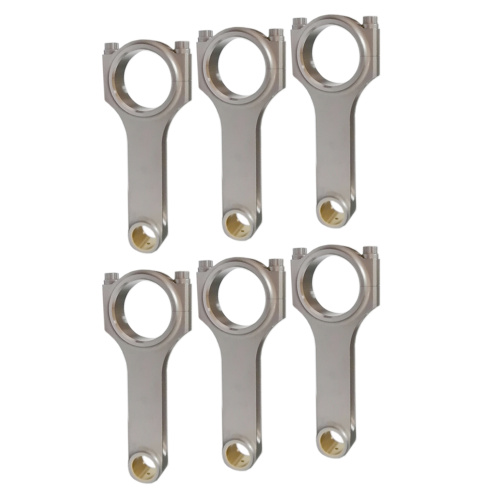

4340 Connecting rod H-beam for Honda D16A

Center to Center Length: 137.01mm/5.394"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 25.86mm/1.018"
Small End Bore Diameter: 19.02mm /0.749"
Small End Width: 18.19mm/0.716"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Quantity :4pcs/set
Approximate Connecting Rod Weight: 469g/piece
Advertised Horsepower Rating: 750hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
