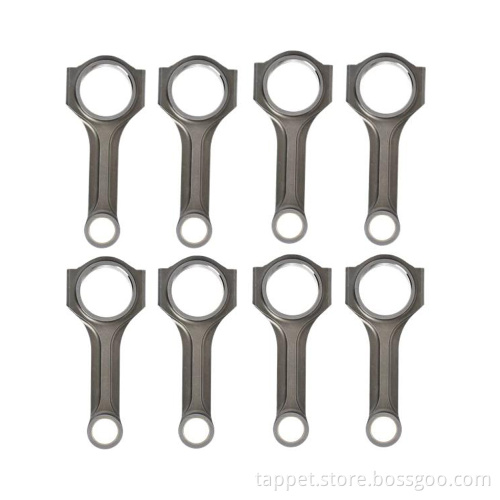

Chevrolet GM LS 6.125 X-beam Racing Connecting Rods

$30.00 - $60.00/Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHANGHAI , SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	16000 Pieces per Month
Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air,Express
Port:	SHANGHAI ,SHENZHEN

Product Description

Chevrolet LS1 6.125 X-beam Conrods Main Dimensions

Brand: TAPPET
Center to Center Length: 155.58mm/6.125"
Big End Bore Diameter: 56.52mm/2.225"
Big End Width: 23.88mm/0.940"
Small End Bore Diameter: 23.56mm /0.928"
Small End Width: 26.95mm/1.061"
Beam Style: X-beam

GM LSx 6.125" X-beam Conrods Features

Connecting Rod Bolt Diameter	7/16 "
Approximate Connecting Rod Weight	XXX
Advertised Horsepower Rating	1200hp
Quantity	Sold as 8 pieces /set
Material	Forged 4340 steel
Connecting Rod Finish	Shot-peened, Polished
Pin	Bronze wrist pin bushings
Wrist Pin Style	Floating
Cap Retention Style	Cap screw
Weight Matched Set	Yes ,Balanced +/- 1g
Magnafluxed	Yes
Private Label	Yes ,available
Custom design	Yes, accept

Those GM Chevy LS LS1 LS2 LS3 LS7 LSx 6.125" Connecting rods can be installed with our 7/16'' Rods Bolts. It will also perfectly match ARP2000 7/16 bolts.

Brand: TAPPET
Stud Diameter: 7/16''
Under Head Length: 1.600 inch
Material: forged 40CrNiMoA steel
Torque: 95 N*M
Tensile Strength: 212,000PSI
Weight: 34g per piece
