Product Description

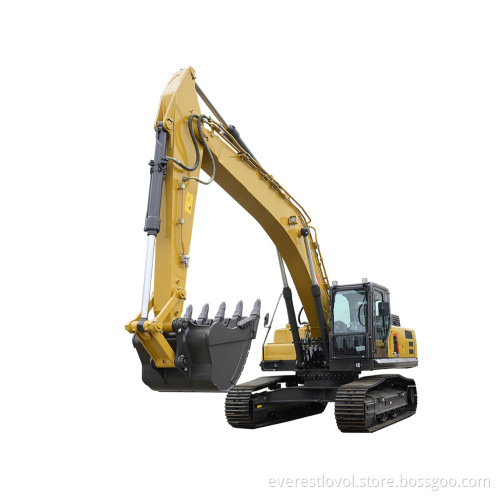

35 ton Hydraulic Crawler Excavator FR350E2-HD

Original Isuzu engine imported from Japan which is specially design for mining applications, the rated power is 212KW. Excavator diggerthis engine meets the emission standard of US Tire3F and also EU Stage III A. 35ton medium wheeled excavator

equipped with original YANMAR engine imported from Japan which can provide strong power with low fuel consumption, excavator machine the fuel efficiency has been improved dramatically.

TECHNICAL SPECIFICATIONS

3300-23

PRODUCT PARAMETERS

Item	Unit	Parameter
Rated Power	kW/rpm	212/2000
Bucket Capacity	m³	1.65 Rock bucket
Operating Weight	kg	35800
Engine Model	-	ISUZU 6HK1XKSC
Number of Cylinders	-	6
Max. Torque/Speed	N·m/rpm	1080/1500
Displacement	L	7.79
Bucket Digging Force	kN	218
Arm Digging Force	kN	169
Max. Traction Force	kN	289
Max. Walking Speed	km/h	5.4
Min. Walking Speed	km/h	3
Rotary Speed	r/min	7.8
Gradeability	°	35
Ground Pressure	KPa	69
Max. Main Pump Flow	L/min	640
Main Safety Valve Pressure	MPa	34.3
Fuel Tank	L	630
Hydraulic Tank	L	340
Engine Oil	L	38

RELIABILITY

— Powerful Engine

Original Isuzu engine imported from Japan which is specially designed for mining applications, the rated power is 212KW. This engine meets the emission standard of US Tire3F and also EU Stage III A.

— Electric Control Positive Flow System

During the design stage, has utilized latest technologies to develop an integrated hydraulic system. The positive flow control system adjusts the displacement of pump and the motion of valve spool simultaneously, delivering optimal operating experience for the operator with smooth and responsive control.

— Core Components

Relying on Japan Engineering Center, has establishing solid partnership with world-renowned enterprises and improve the quality and service life of these components. The supply of the core components like engine, pump, valve, motor, cylinder and forth also can be priority guaranteed.

PRODUCTIVITY

The constantly reinforced working device and structure make theproduct rugged and durable.

— Superb Match

Each component in powertrain system, such as engine, gear, rotary motor, working pumps and hydraulic cylinder are specially customized to achieve perfect match with one another, the whole system features are more reliable.

— Outperformance

To carry out the mining applications, the machine equips with powerful engine combining with large flow hydraulic system, together with electric-positive flow hydraulic control system to make machine more suitable for tough projects.

— Great Digging Force

On the premise of ensuring static digging force, dedicate to research of dynamic digging force. The system will automatically detect the pressure when face big frustration during digging, and automatically adjusts output pressure to keep the powerful force in digging process.

ROBUSTNESS

— Rigorous Test and Experiment

Machine test: CL-6 machine testing yard covers more than 200,000 square meters, it can simulate various applications like earthmoving, aggregate, sand, quarry and forth. The test including strengthen vibration, noise, working efficiency, oil consumption, travel and climbing tests, etc. Every new model should go through more than 2,000 working hours strengthen combination test here.

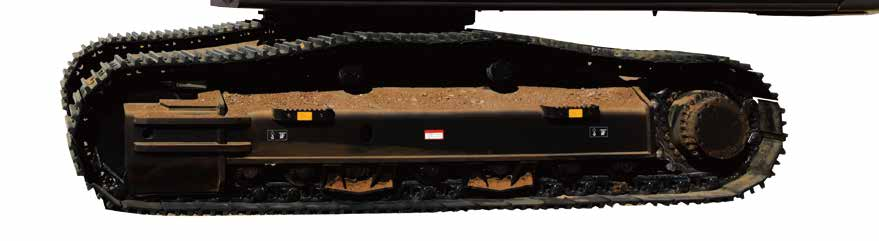

— Robust Chassis (Extensional)

Improved heat treatment of Track Roller, Carrier Roller, Idler, Drive Roller and Track’s surface, which makes each part more resistant to prolong the service life.The Track roller and Idler utilize anti-freeze grease and seals which can protect parts when working in the temperature of -40℃. Lifetime self-lubrication chain and reinforced track beam make the chassis more robust.

— Reinforced Working Device

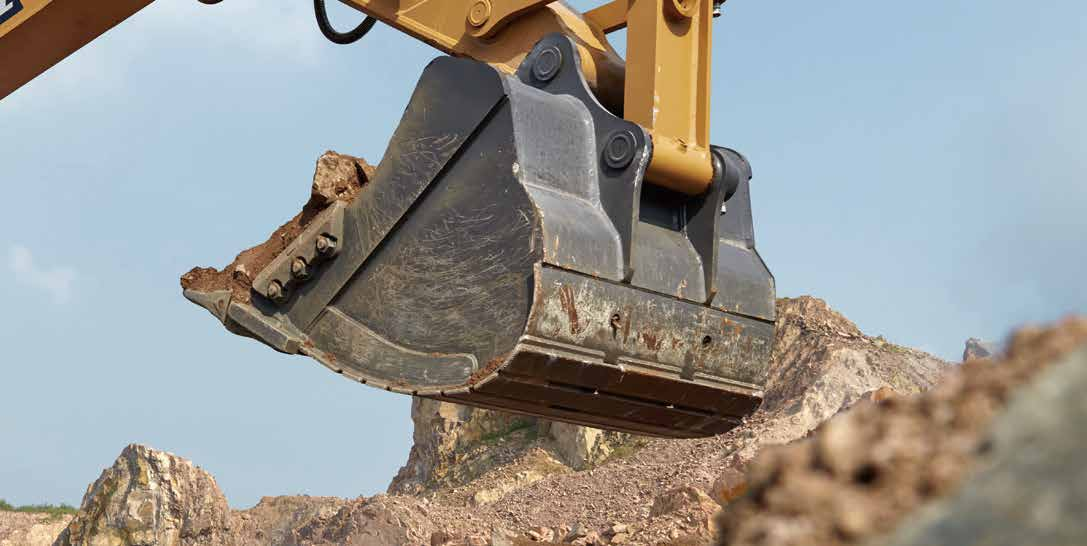

Adopts high-strength rock bucket teeth which is special suitable for the tough applications, the boom and arm are reinforced to prolong the service life. Self-lubrication shaft sleeve is used to make every linkage works smoothly with high durability

COMFORT

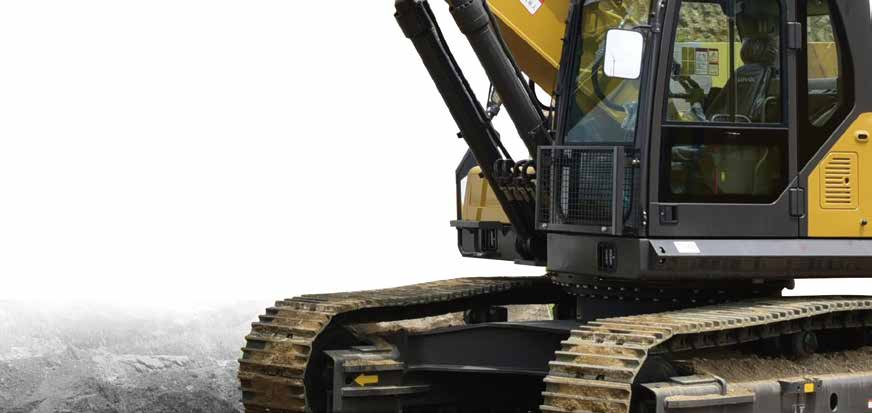

— Large Space Cab

Equipped with large cab which provides operator big space to operate machine.The premium suspension seat with armrests is very comfortable and it can reduce the working fatigue dramatically. Front windshield can be partially or fully retracted to the cab roof. Rearview camera is optional to get better rear vision in order to improve operation safety in jobsite.

— Ergonomic Design

The proportional joystick delivers sensitivity, accuracy and smoothness in operation. This joystick is specially designed to meet different operating conditions. Intelligent control system is standard which could control diverse attachments such as bucket, hammer, scarifier and hydraulic scissors.

— Low Noise and Low Vibration

In order to reduce work fatigue and improve productivity, the noise inside of cab has been controlled to the lowest level. The cab is attached to the frame with buffer that dampens vibrations and sound levels to enhance operator comfort.

3300-17k

600-4 carrier roller Quick Coupler Hydraulic Hammer Hydraulic Rammer Auger Standard Bucket Lager Wheel Loader Excavator Bucker Log Grapple Rock Bucket Pallet Fork Coal Bucket Side Dump Bucket
