4 Wheel Drive Wheel Loader FL956H

4 Wheel Drive Wheel Loader FL956H

ETX (European Technology Excellent) cabin adopts skeleton structure which has great vision, solid frame and lower noise feature，these could provide a comfortable working environment for operator.  Adopt reinforced heavy duty axle.    Use four planet gears in the wheel hub and use new material for axle spiral bevel gear to make the axle more reliable and durable.    Adopt integrated protective structure cover protect the axle caliper to increase reliability.
Adopt medium wheelbase and front articulation design which have small turning radius, flexible operation & high efficiency features.   It is more suitable for loose materials application.
Standard equipped with WEICHAI WD10G220E23 engine, small loader machine adopts multi-stage fuel filter which is suitable for various fuel to ensure the cleanliness of engine system, that raise engine’s reliability.

Item	Unit	Parameter
Rated Power	kW	162
Operating Weight	kg	16980
Bucket Capacity	m³	3.3
Engine Model	-	WEICHAI WD10G220E23
Max. Breakout Force	kN	165
Rated Load	kd	5500
Max. Traction Force	KN	160
Max. Gradeability	°	30
Max. Dump Clearance	mm	3080
Dump Reach	mm	1150
Wheel Tread	mm	2150
Wheelbase	mm	3300
Overall Dimension（L×W×H）	mm	8360×2980×3380
Type	-	Three pump flow conffluence, hydraulic flow amplification system
Steering Angle Each Direction	-	37º
Min. Turning Radius	mm	7020
Working Pressure	Mpa	18
Boom Lifting Time	s	5.7
Total Cycle Time	s	10.6
Fuel Tank	L	320
Hydraulic Tank	L	130
Engine Oil	L	20L

— Adopt medium wheelbase and front articulation design which have small turning radius, flexible operation & high efficiency features. It is more suitable for loose materials application.The first 5.5T wheel loader of Chinese brand with 3.3m3 bucket which is easier to load, achieves greater fill factors and could retain more materials.

— The bucket has an automatic leveling function which can directly load the material after landing and saving the bucket adjustment time.High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.
— Multi-stage power hydraulic control system is perfectly matched with high-efficiency powertrain system that makes machine work fast and efficient. patented Three Pump Flow confluence technology is adopted. During engine idling, the auxiliary pump works together with the steering pump to provide sufficient flow to make steering light and convenient. When steering is not required, the auxiliary pump works together with working pump to make loading more powerful and efficient.
— Low-effort joystick control system delivers high-efficiency operation with ease and fast.

 — Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
 —  Patented gearbox adopts reinforced overrunning clutch which could provide longer service time to the whole transmission system.

 — The key components of axles are reinforced which could extend service time of whole axles and makes it more suitable for heavy-duty applications.

 — The H series features many components which leverage product designs that have delivered reliable and durable machines.
 — Adopt world class engine which provides excellent service and part availability in market.

— Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.

COMFORT

 —  ETX (European Technology Excellent) cab adopts skeleton structure which has great vision, solid frame and lower noise features, these could provide a comfortable working environment for operator.
 — Ladders with self-cleaning steps are inclined which is easy to climb up and down, wild platform allows the ease of movement from front or rear of machines.
 — High-back mechanical suspension seat with headrest could make operator feel more comfortable.

Engine：

Loader standard equipped with WEICHAI WD10G220E23 engine which is specialize for the heavy-dust working environment, it adopts three-stage air filter which can avoid early wearout of engine to extend service life. It also adopts multi-stage fuel filter which is suitable for various fuel to ensure the cleanliness of engine system.

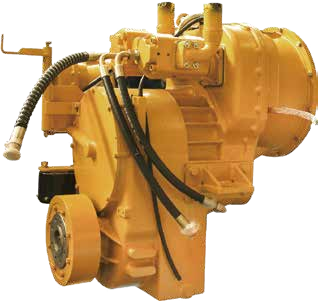

Transmission：

Axles：

Axle housing is optimized design through increasing the cross-section, the brace bearing of wheel hub is also reinforced, that make front axles capacity reaches 40T.

Frame and Articuation:

Hydraulic System:
