Mini Earth-movingl Machinery Wheel Loader FL946H

Mini Earth-movingl Machinery Wheel Loader FL946H

Get Latest Price

Transportation:: Ocean, Land

Port:: qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C,T/T,Western Union,Others
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land
Port:	qingdao

Product Description

Mini Earth-movingl Machinery Wheel Loader FL946H

patent flow amplification system makes steering system more light, stable and precise, reaches the optimized balance between the heavy loading and flexibility, saving 3%-5% energy. patented multi-valve, 24°cone seal and dual-seal technologies are adopted to avoid oil leakage of hydraulic system. Front end wheel loader the pipelines are protected by pipe clip and coverage to avoid damage caused by frication. Adopt low speed and high torque design WEICHAI WD10G220E23 engine. Oil-water separator has good filtration capacity and strong pollution tolerance to make oil cleaner. Adopt high radiating capacity aluminum plate radiator to make engine work normally under 50℃ environment.

FL946H Dimensions

Wheel Loader

PRODUCT PARAMETERS

Item	Unit	Parameter
Rated Power	kW	118
Operating Weight	kg	13100
Bucket Capacity	m³	2.3
Engine Model	-	WEICHAI WP6G160E201
Max. Breakout Force	kN	130
Rated Load	kd	4000
Max. Traction Force	KN	124
Max. Gradeability	°	30
Max. Dump Clearance	mm	3020
Dump Reach	mm	1030
Wheel Tread	mm	2054
Wheelbase	mm	2880
Overall Dimension（L×W×H）	mm	723027703350
Type	-	Double pump flow conffluence, load-sensing hydraulic system
Steering Angle Each Direction	-	38°
Min. Turning Radius	mm	6110
Working Pressure	Mpa	16
Boom Lifting Time	s	5.8
Total Cycle Time	s	10
Fuel Tank	L	220
Hydraulic Tank	L	110
Engine Oil	L	20L

948-1

PRODUCTIVITY

— Equipped with 2.3m3 bucket which is easier to load, achieves greater fill factors and could retain more materials.

— High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.

— Low-effort joystick control system delivers high-efficiency ·operation with ease and fast.

ROBUSTNESS

— Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
— Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.

RELIABILITY

— Adopt world class engine which provides excellent service and part availability in market.
— Optimized layout of pipelines and dual-seal technology canavoid oil leakage and make hydraulic system more reliable.

— Adopt ergonomic design cab to provide broad space and comfortable operation. 360° flat view glass windows provide wide vision,more beautiful and comfortable.

COMFORT

— The pedals and various control elements utilize humanized design which could reduce the long-time operation fatigue for operator.
— High-performance mechanical suspension seat with high-back could make operator feel comfortable.
— Overall view cab delivers wide vision for operator to check the surroundings during operating machines.

Engine：

Standard equipped with WEICHAI WP6G160E201 engine, it adopts multi-stage fuel filter which is suitable for various fuel to ensure the cleanliness of engine system, that raise engine’s reliability. It is applicable to the temperature from -35 degrees to 50 degrees and under 5,000 altitudes working environment.

Transmission：

Adopt industry proven planetary gearbox, it is durable and reliable.
Key bearings and seals adopt imported premium parts which have higher reliability

Axles：

he axle key parts are reinforced to improve the reliability and bearing capacity. The dry brake uses integrated clipper and LOVOL patented friction disk which make machine more safety.

Axles

Cab ：

Overall view cab provides wide vision to operator, the high-performance suspen sion seat with high back could deliver comfort to operator.

The cab has micro pressurizing air system that makes the environment cleaner and more comfortable.

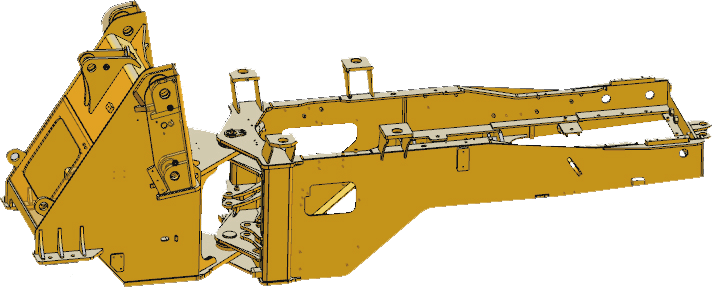

Frame and Articuation:

Reinforced central-articulated structure went through million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, reach super strong payload capacity. Central articulation design, the upper hinge uses joint bearing and lower hinge uses tapered roller bearing, this type of articulation can withstand bigger impact force with long service time.
