Industrial Passive UHF RFID Tag with Metal Shell: Effective Equipment Management Solution in Adverse Conditions

Industrial Passive UHF RFID Tag with Metal Shell: Effective Equipment Management Solution in Adverse Conditions

$4.30

50-5000 piece
$4.00

5001-10000 piece
$3.80

10001-500000 piece
$3.70

≥500001 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: Chengdu/HongKong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5000 Piece/Pieces per Day
Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Port:	Chengdu/HongKong

Product Description

Specification

RF Specifications
RF Air Protocol	EPC Global Class 1 Gen2 ISO18000-6C
Operating Frequency	UHF 902-928 MHz (FCC)
Environment Compatibility	Optimized on metal
Read Range	Up to 4 m (on metal)/Up to 4 m (off metal)
Polarization	Linear
IC Type	Impinj R6-P
Memory Configuration	EPC 128bit TID 96bit User 32bit

Mechanical Sepcifications
Tag Materials	FR4
Surface Materials	Stainless Steel
Dimensions (mm)	35 x 35 x 5 mm
Weight (g)	16 g
Attachment	Industry epoxy resin /Rivet hole
Color	Silver and Black by default

Environmetal Sepcifications
Operating Temperature	-30°C to +85°C
Ambient Temperature	-30°C to +250°C
IP Classfication	IP68
Shock and Vibration	MIL STD 810-F
Certifications	CE approved RoHS approved ATEX/IECEx certified
Warranty	1 year

Products Description

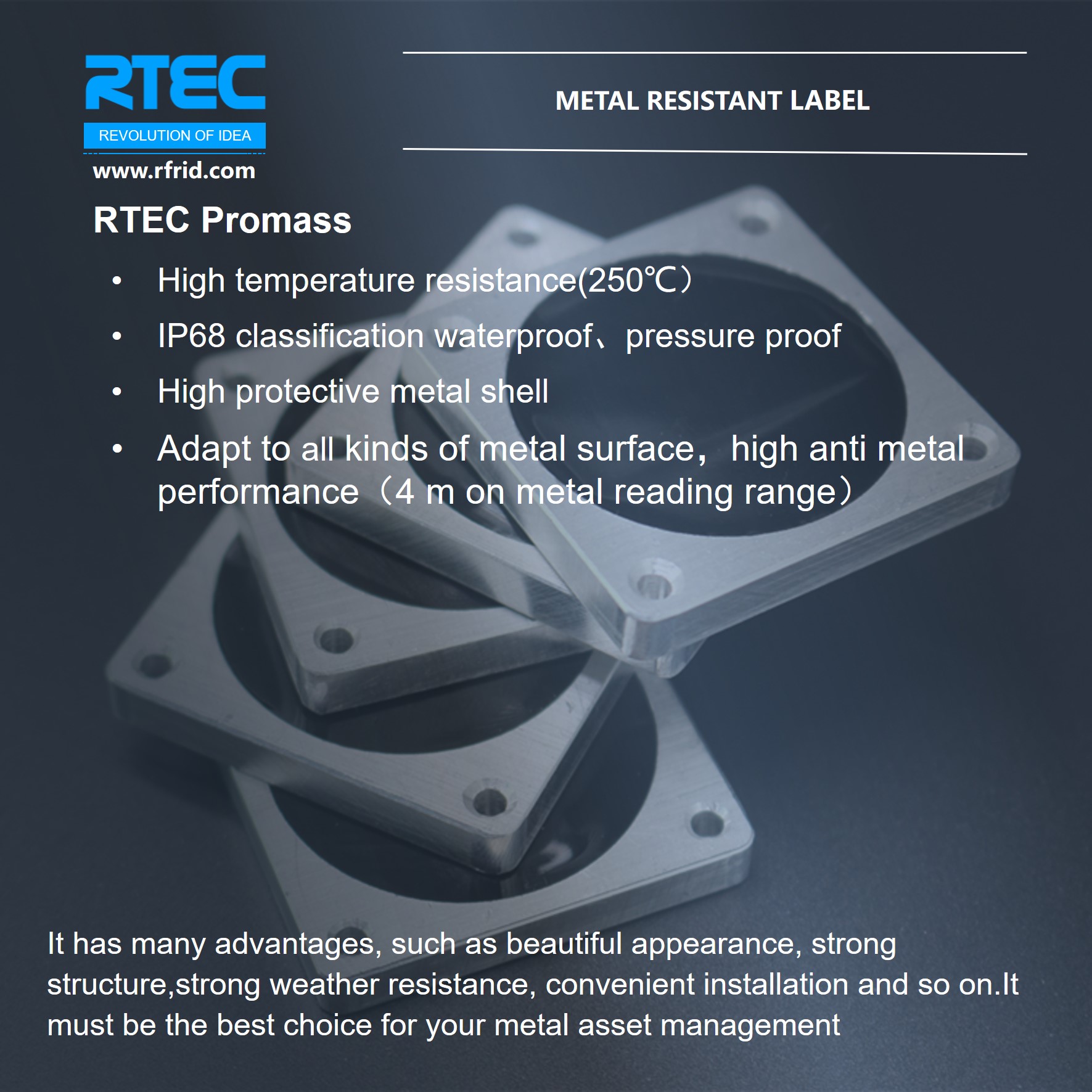

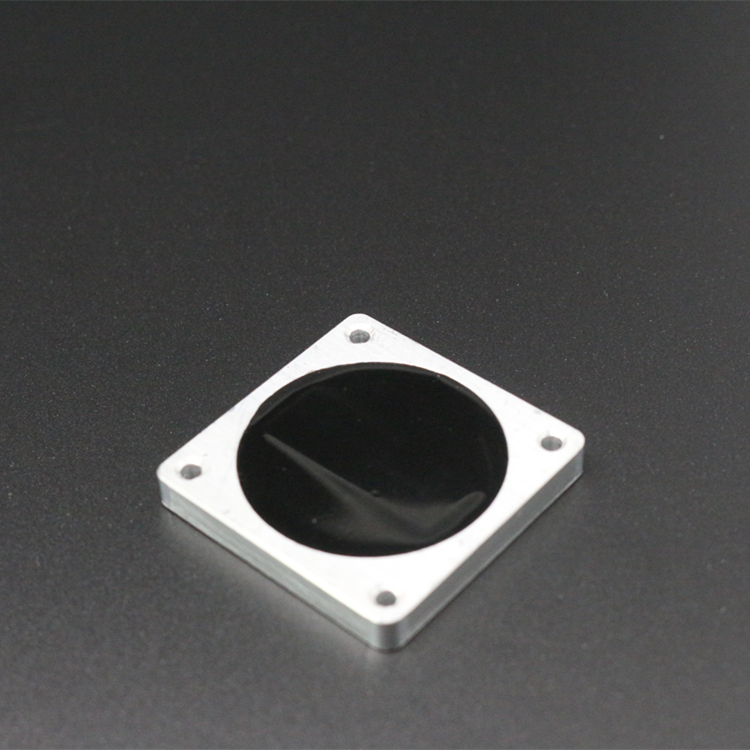

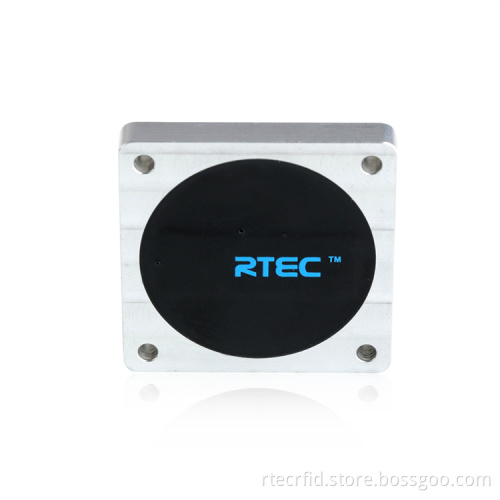

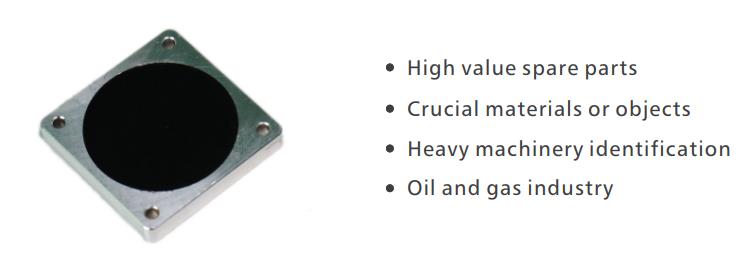

RTEC's Tough series is an absolute rugged RFID tag designed specifically for tagging objects under the most harsh environment.Withits full metal jacket, it offers the best protection to the embedded tag.It can be used almost anywhere with no limitation. and it is perfectly suitable for the oil and gas industry, and can resist high temperature and pressure.

Production Process

Scene Display

1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.

2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price.

3.HOW TO SHIP THE ORDER? We often ship by Express(DHL/Fedex/UPS/TNT), Air, Sea and Train also are ok.

4.WHY ENQUIRY US?
1)Strict QC factory—at least 4 QCs during production, product performance are ensured.
2)Strong technical team—quick to solve problems, creative to design new items, latest RFID items are from us.
3)Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
4)10-year factory — experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
