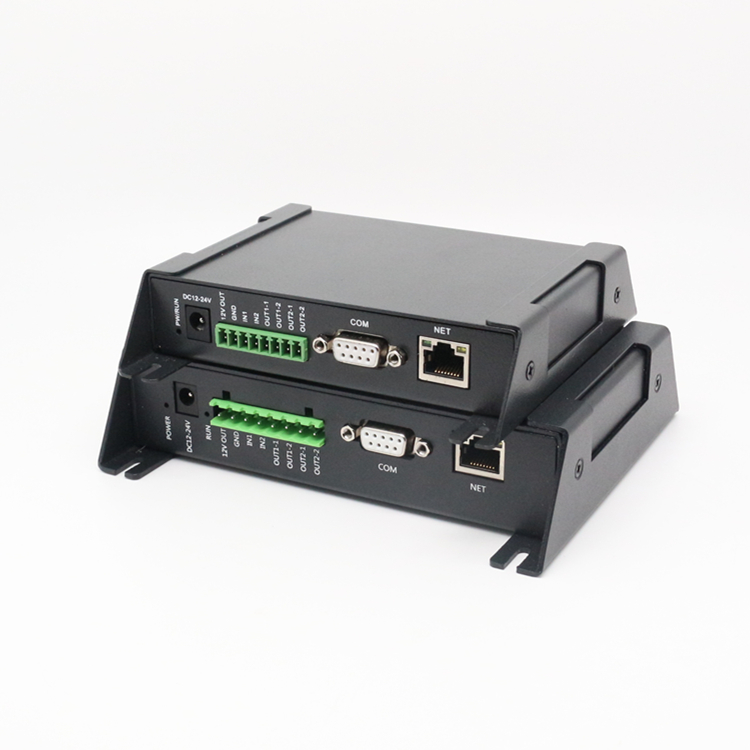

RTEC Multi-port RFID Reader-R3800-F UHF RFID Reader: a UHF RFID Tag Reader engineered for efficiency and performance. Crafted from robust die-cast aluminum, this device operates on a versatile input voltage range of DC 12~24V. At its core lies the INDY R2000 chip, ensuring reliable and swift data processing.

Details Images

Device Spec
Dimensions	156 x 130 x 39 mm
Weight	500 g
Materia	Die-cast aluminum
Input Voltage	DC 12~24V
Standby Current	<100mA
Work Current	1000mA +/-5% @ DC 12V Input
Operating Temp.	- 20 °C - + 65 °C
Storage Temp	-40 °C - + 85 °C
Humidity	-5%RH - 95%RH (no condensation)
Air Protocol	EPC global UHF Class 1 Gen 2 I50 18000-6C
Frequency	902-928MHZ FCC 865-868MHZ ETSI
Output Power	0-33dBm
Output Power Precision	± 1dB
Output Power Flatness	± 0.2dB
Receive Sensitivity	< -85 dBm
Reading Rate	> 800 tags/s
Tag Buffer Capacity	200 tags @ 96 bit EPC
Tag RSSI	Supported
Antenna Detector	Supported
Ambient Temp Monitor	Supported
Host Communication	RS-232, TCP/IP
GPIO	2 input optical coupling 2 output coupling
Band Rate	115200 bps
Cooling Mode	Air cooling
