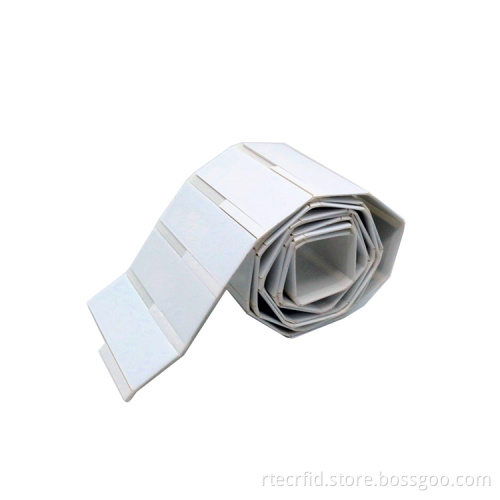

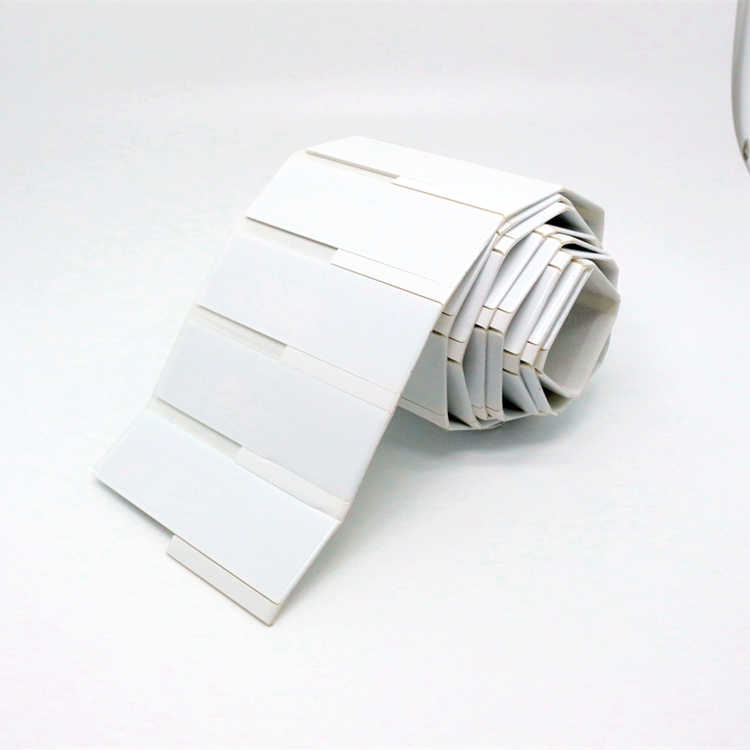

RFID UHF Sticker Tags: 12m Long Range, Flexible, Anti-metal, Printable for Asset Tracking

RFID UHF Sticker Tags: 12m Long Range, Flexible, Anti-metal, Printable for Asset Tracking

$0.27

50-5000 piece
$0.26

5001-10000 piece
$0.25

10001-50000 piece
$0.24

≥50001 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

12m long range Passive Rfid Uhf Printable Flexible Anti-metal Sticker Tag For Asset tracking

Product Paramenters

RF Specifications
RF Air Protocol	EPC Global Class 1 Gen2 ISO18000-6C
Operating Frequency	UHF 866-868 MHz (ETSI) /UHF 902-928 MHz (FCC)
Environment Compatibility	Optimized on metal
Read Range	Up to 12 m (on metal) Up to 6 m (off metal)
Polarization	Linear
IC Type	Impinj R6-P
Memory Configuration	EPC 128bit TID 96bit User 32bi

MechanicalSepcifications
Tag Materials	Foam
Surface Materials	High quality PET label
Dimensions	25 x 80 x 1.26 mm
Weight	1.6g
Attachment	Industry grade adhesive
Pitch on reel	30 (+/- 0.8) mm
Inner core diameter	76.2 mm
Standard Packing	500 pcs/ree

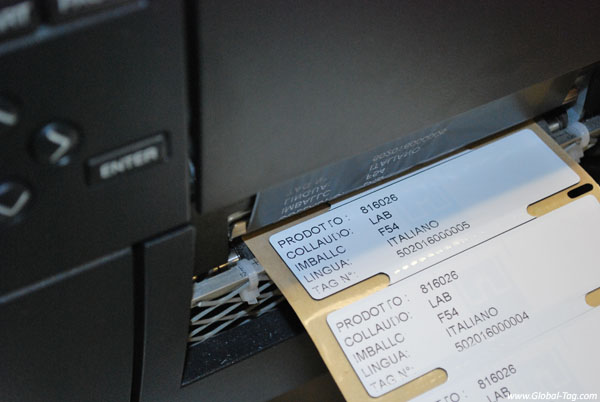

Support Printe	Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5

EnvironmetalSepcifications
Operating Temperature	-30°C to +85°C
Ambient Temperature	-30°C to +85°C
IP Classfication	IP54
Shock and Vibration	MIL STD 810-F
Certifications	CE approved RoHS approved ATEX/IECEx certified
Warranty	1 year

Products Description

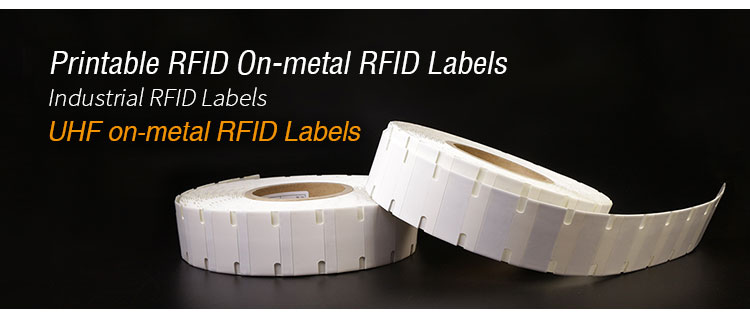

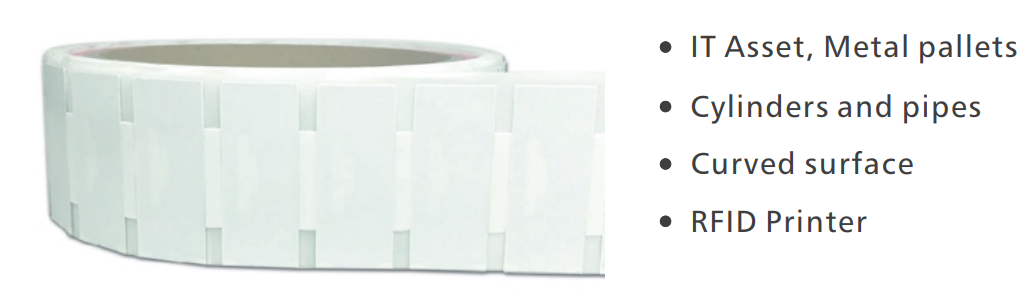

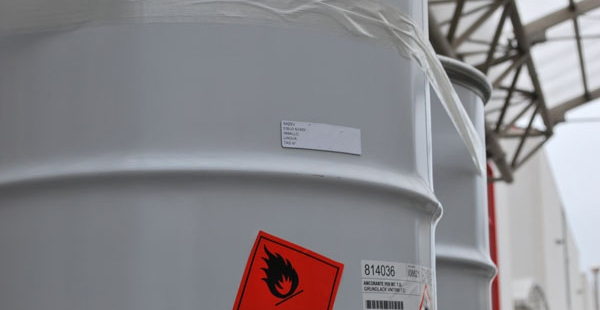

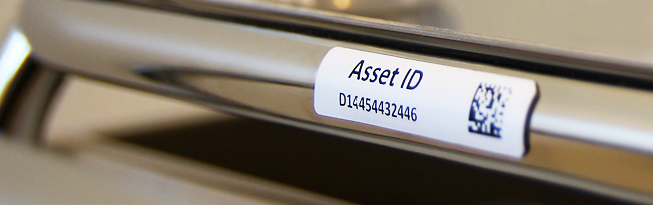

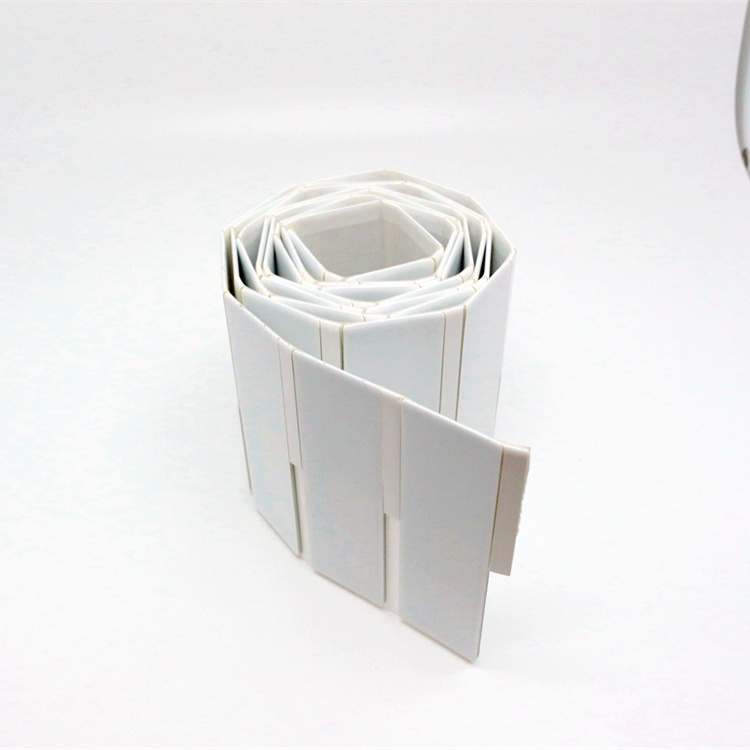

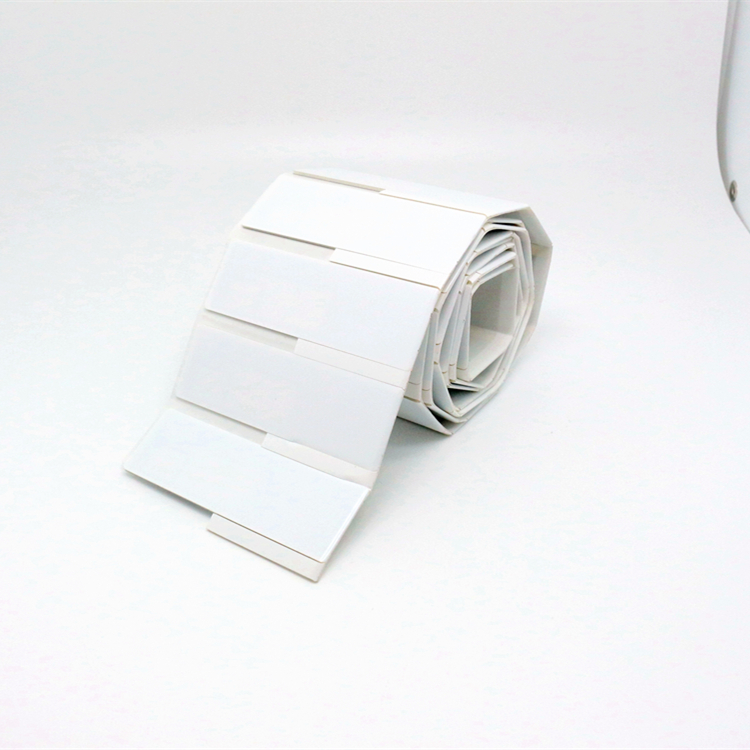

RTEC Ironlabel P8025- is a small form factor and rugged RFID tag specially designed for metal objects. Performance is so high that it can be read up to meters of range. This anti metal label is excellent option for indoor applications that demand user flexibility and affordability with low cost.Those advantages allow it can be applied to numerous types of applications, such as IT Asset, Metal pallets,Cylinders and pipes,Curved surface and metal container.

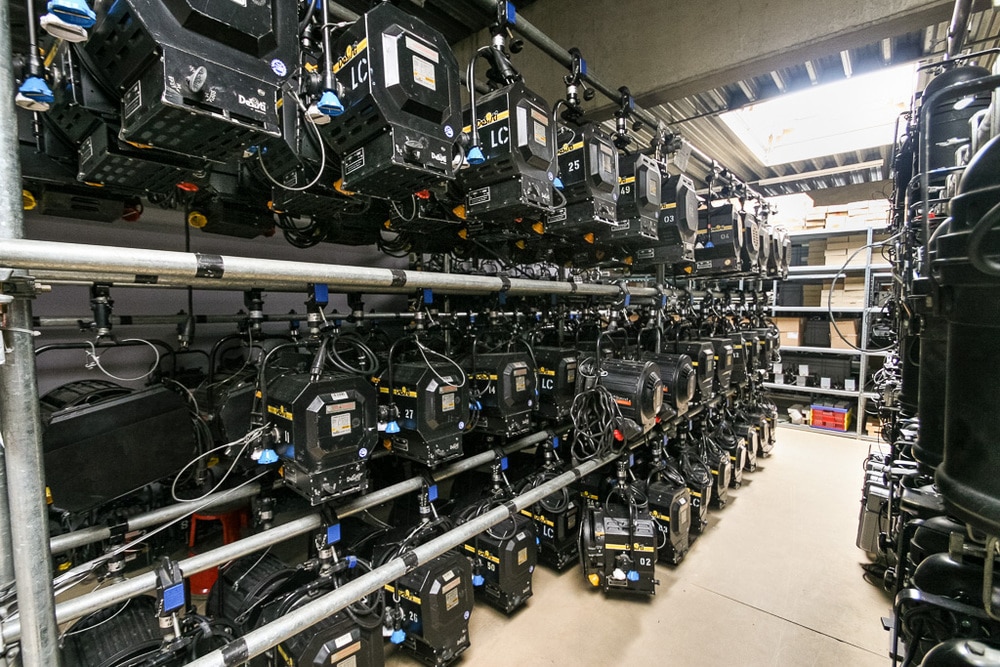

Application

Production Process

Shipping:Usually we ship your goods by express,it's also ok to choose your own freight forwarder or any other shipping ways you like. Delivery Time: 3-7 days for samples; 5-25 days for batch order

1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.

2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price.

3.HOW TO SHIP THE ORDER? We often ship by Express(DHL/Fedex/UPS/TNT), Air, Sea and Train also are ok.

4.WHY ENQUIRY US?
1)Strict QC factory—at least 4 QCs during production, product performance are ensured.
2)Strong technical team—quick to solve problems, creative to design new items, latest RFID items are from us.
3)Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
4)10-year factory — experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
