8dBi Built-In Antenna Long Range UHF RFID Access Control Card Reader: Enhanced Security and Distance in Access Control Systems

8dBi Built-In Antenna Long Range UHF RFID Access Control Card Reader: Enhanced Security and Distance in Access Control Systems

$75.00

2-100 set
$70.00

101-300 set
$65.00

301-9999 set
$60.00

≥10000 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

8dbi built-in antenna long range integrated uhf rfid access controlled card reader

Specification

Device Spec
Dimensions			228 x 228 x 65 mm
Weight			2000 g
Materia			Die-cast aluminum+Plastics
Input Voltage			DC 12~24V
Standby Current			<10mA
Work Current			1000mA +/-5% @ DC 12V Input
Operating Temp.			- 20 °C - + 65 °C
Storage Temp.			- 40 °C - + 85 °C
Humidity			5%RH - 95%RH (no condensation)
Air Protocol			EPC global UHF Class 1 Gen 2 ISO 18000-6C
Frequency			902-928MHz FCC 865-868MHz ETSI
Output Power			0 – 33 dBm
Output Power Precision			± 1dB
Output Power Flatness			± 0.2dB
Receive sensitivity			< -85 dBm
Antenna Gain			8 dBi (Circular)
Tag RSSI			Supported
Antenna Detector			Supported
Ambient Temp Monitor			Supported
Reading Rat			> 800 tags/s
Host Communicatio			RS-232, TCP/IP，Wiegand，RS485
GPIO			2 input optical coupling 2 output coupling
Band Rat			115200 bps
IP Class			IP 67

Products Description

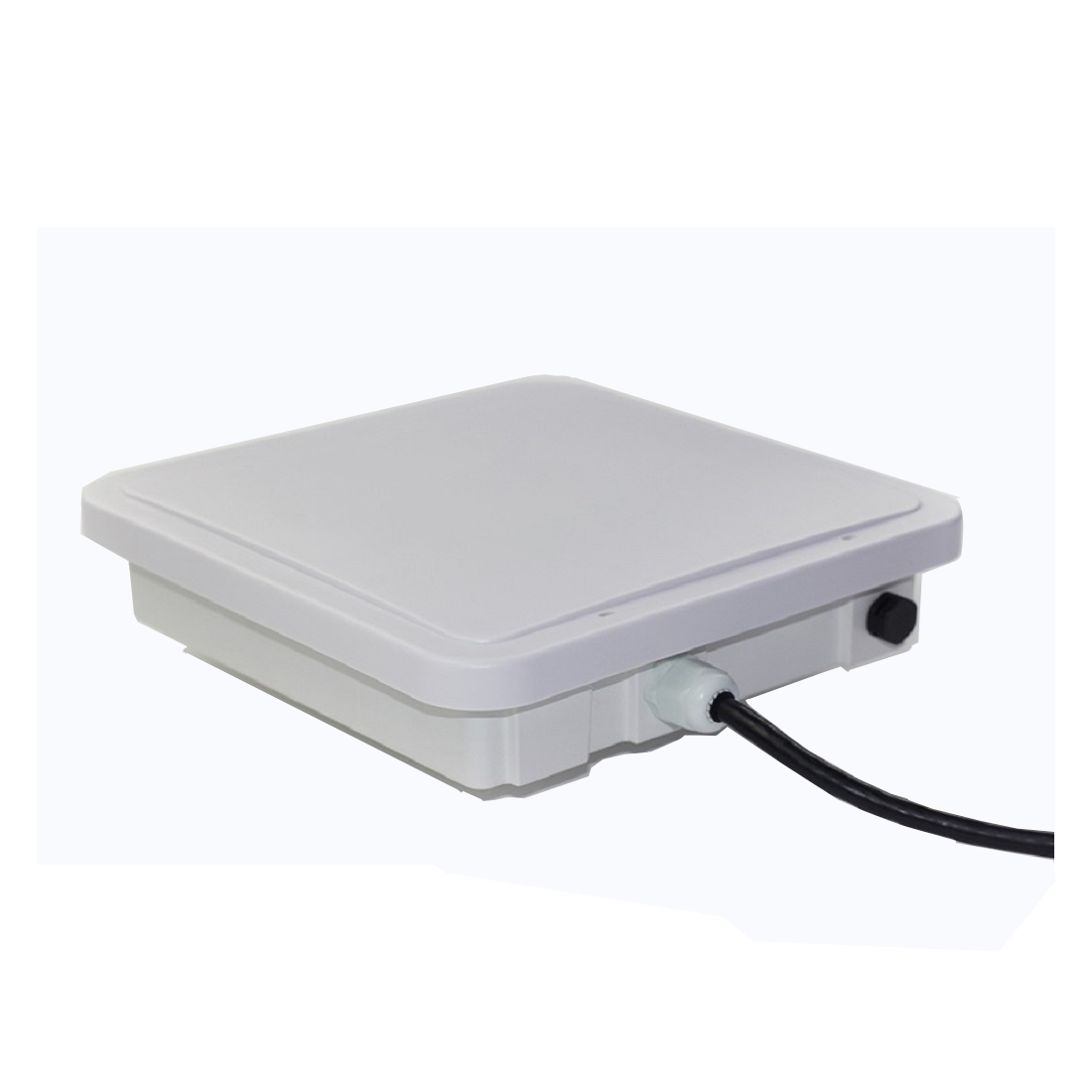

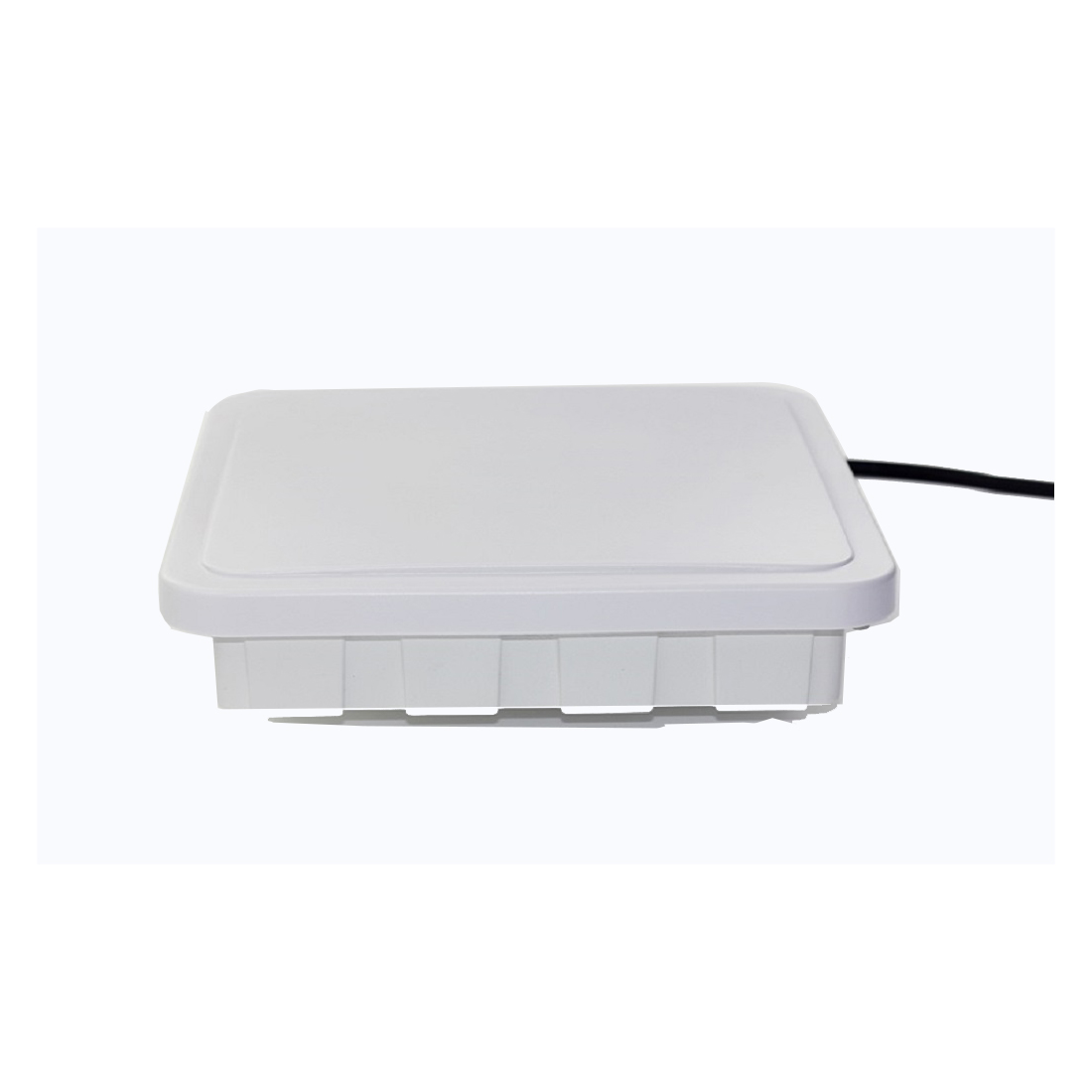

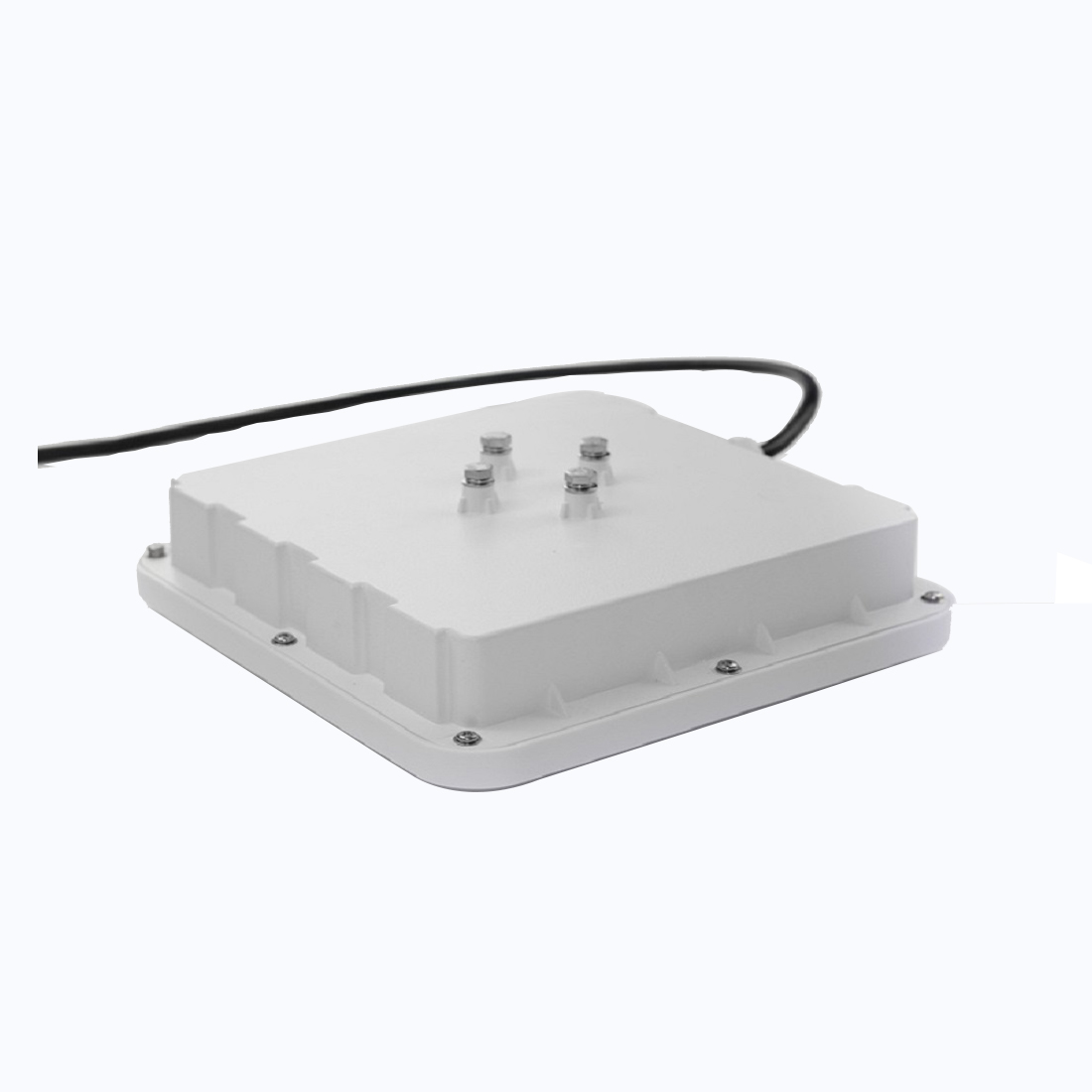

RTEC R2228-F UHF RFID Reader: is a high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and ease installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control and many other applications.

Applications
vehicle access control

automatic charging without parking

personnel access control

logistics monitoring

production automation management, etc

many models available, pls feel free to contact us to send our RFID reader catalog, thanks !

Strong part:

* Designed with low power dissipation and high integrated RFID chip solution

* Support EU 840~868MHz, US 902~928MHz working frequency
* Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.
* Optimized multiple tags inventory algorithm, speed is more than 800 tags/s
* FHSS or Fix Frequency transmission
* RF output power up to 33 dBm (1dbm step adjustable)

* Support Active mode (default), answer mode, trigger mode

* Low power dissipation with single +12 DC power supply

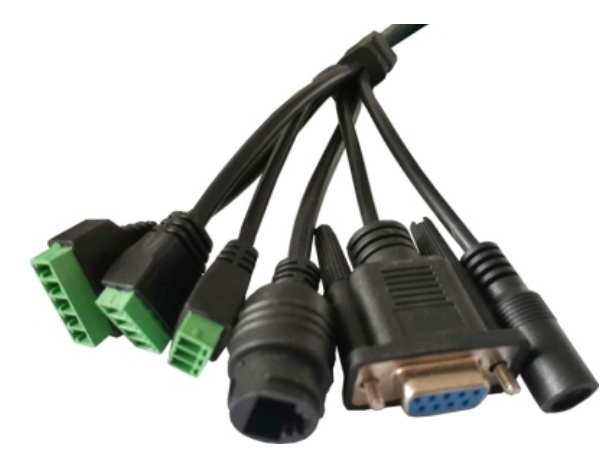

* Support USB, RS232, RS485, Weigand, RJ45(TCP/IP)
* Built-in 8 dBi circular polarized antenna with effective distance up to 20 m (adjustable)
* Provide DEMO and SDK for development
* Support development based on Windows, Android, Linux etc. and C, C#,JAVA etc.

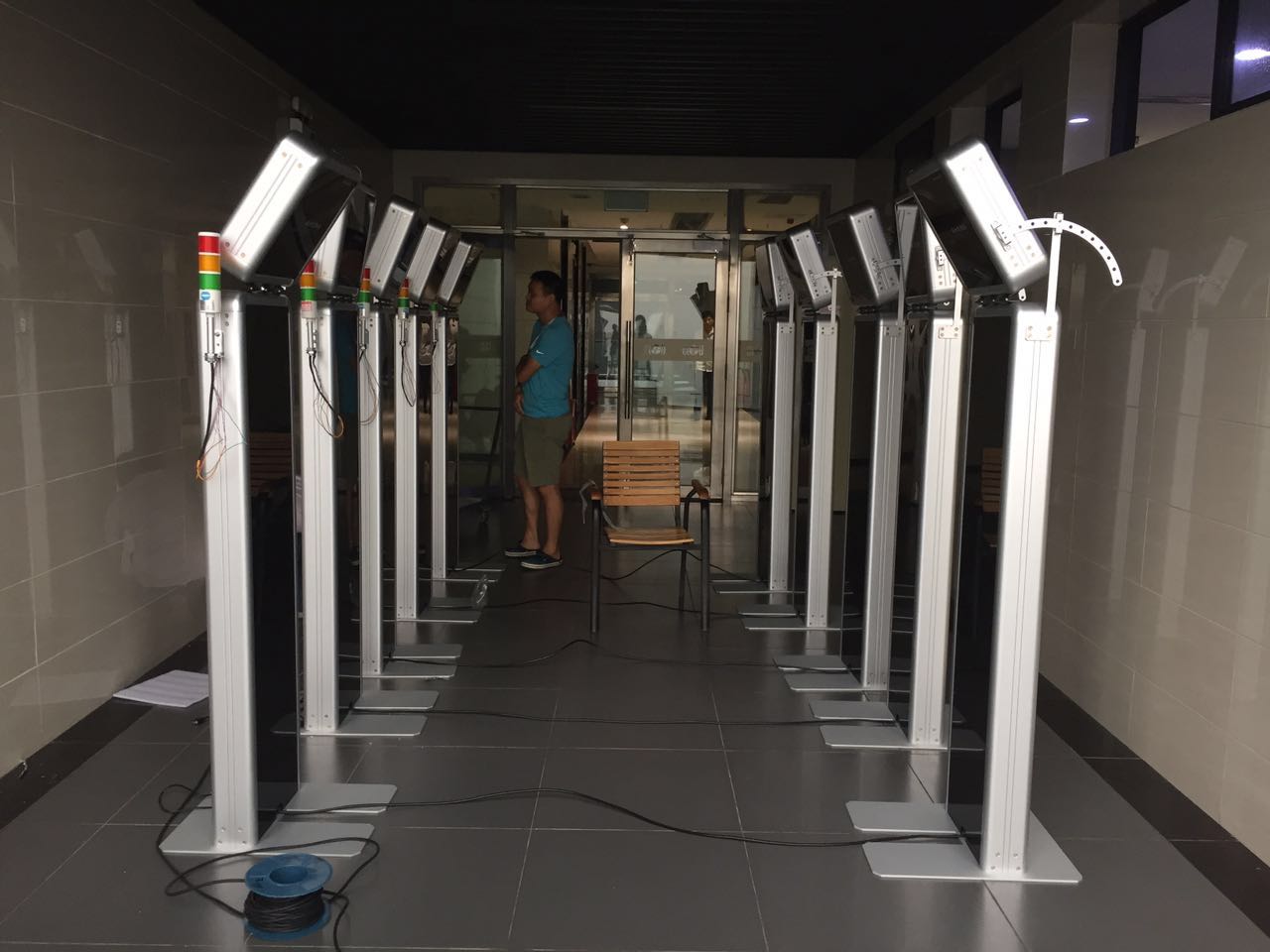

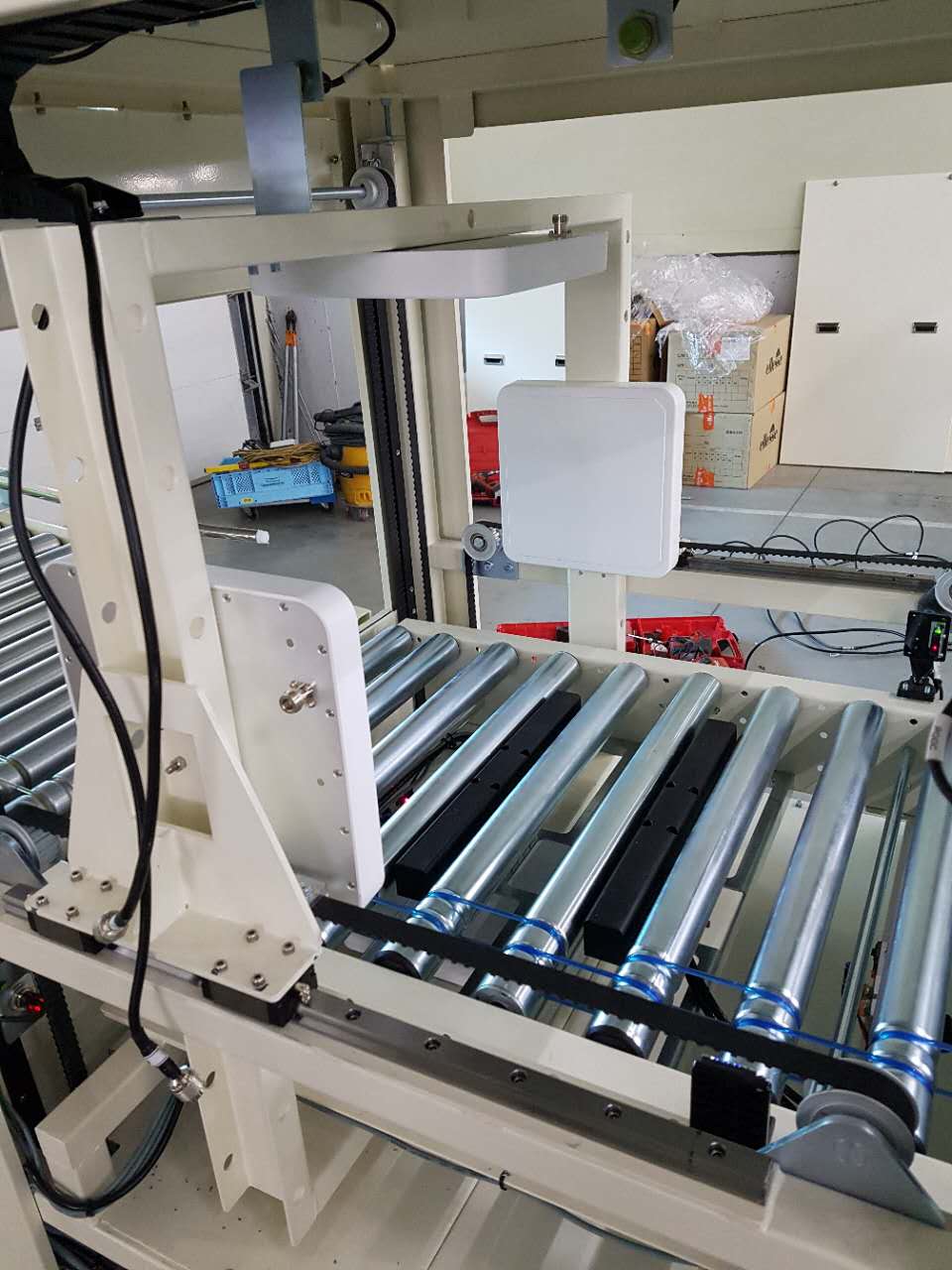

Scene Display

Production Process

1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.

2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price.

3.HOW TO SHIP THE ORDER? We often ship by Express(DHL/Fedex/UPS/TNT), Air, Sea and Train also are ok.

4.WHY ENQUIRY US?
1)Strict QC factory—at least 4 QCs during production, product performance are ensured.
2)Strong technical team—quick to solve problems, creative to design new items, latest RFID items are from us.
3)Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
4)10-year factory — experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
