UHF RFID Handheld Sled Readers with Barcode Scanners: Compatible with Android and iOS Smartphones

UHF RFID Handheld Sled Readers with Barcode Scanners: Compatible with Android and iOS Smartphones

$320.00 - $370.00/set

Min. Order:: 2 set

Min. Order:: 2 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

Specification

Performance
MCU	Cortex-M3 STM32 72MHz
Communication
Bluetooth	Bluetooth Low Energy (BLE) 5.0
Physical Spec
Dimensions	143 x 76 x 140mm
Weight	Sled Reader: 438 g / 15.45 oz
Color	Black
Interfaces	USB3.0 Type-C
Buzzer	Support
Indicator LED	Power, Work, Bluetooth
Product material	Plastic
Power	Battery specification: 5200 mAh removable battery Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 2.5 hours (UHF reading: 400 tags) Charging time: 4-5 hours (with standard adaptor and USB cable)
Size of adapted phone	Sled Reader: Width 68~80 mm, thickness: within 22 mm Others: Based on phone case or holder
UHF RFID
Engine	Impinj IndyR2000/Impinj E710
Frequency	865-868MHz ETSI 902-928MHz FCC 920-925MHz CN
Protocol	EPCglobal UHF Class1Gen2/ISO18000-6C
Power	5-30dBm
Antenna parameter	Circular Polarized Antenna (4dBic)
Fastest Read Rate	>900tags/s
Barcode Scanning (Optional)
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codab ar, MSI, RSS
2D Symbologies	PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QR code, Micro QR code,Aztec,MaxiCode;Postal Codes: USPostNet, USPlane t,UKPostal,AustralianPostal,Japan Postal,DutchPostal (KIX),etc.
User Environment
Sealing	IP54 per IEC sealing specifications
Drop Specification	Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Humidity	5%RH - 95%RH non condensing
ESD	±15 KV air discharge, ±8 KV conductive discharge

Products Description

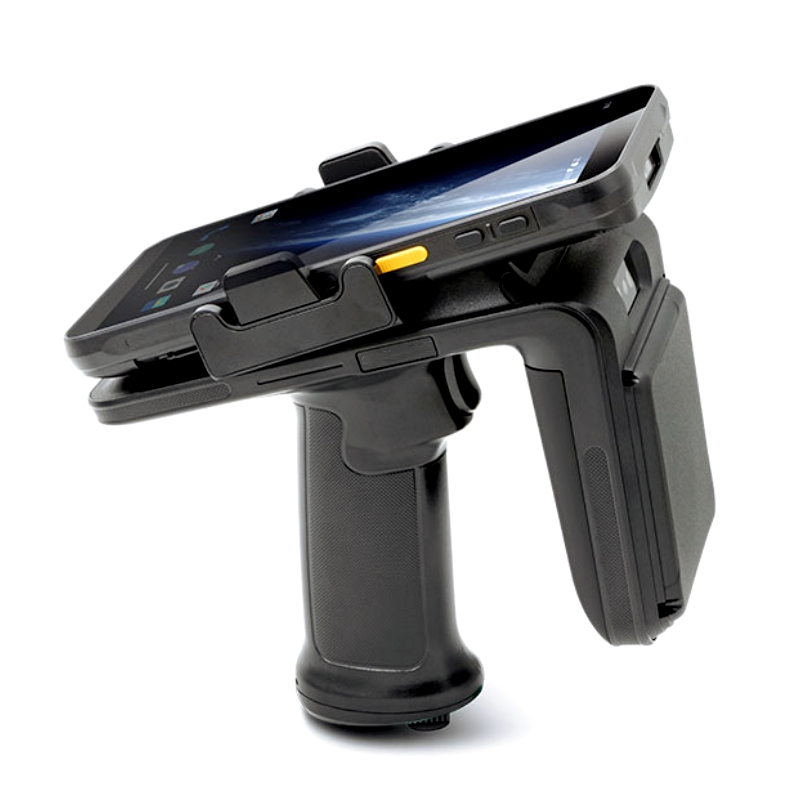

RTEC R65 UHF RFID Handheld Reader: specially designed for a complete one-piece solution with smart phone / PDA. Paired with Android / iOS-based smart phone and terminal, it can be easily transformed into a professional data collection device. Built with Impinj E710 / R2000, it features powerful UHF reading and writing that enables read distance of over 31m outdoors. The RFID reader is comfortable in hand, easily detached, and can fulfill tasks in power patrol inspection, apparel cycle-counting, warehousing, asset management, fleet management, finance, etc.

Applications
inspection

apparel cycle-counting

warehousing

apparel inventory

asset management

fleet management,

finance,pls feel free to contact us to send our RFID reader catalog, thanks !

Scene Display

Production Process

1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.

2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price.

3.HOW TO SHIP THE ORDER? We often ship by Express(DHL/Fedex/UPS/TNT), Air, Sea and Train also are ok.

4.WHY ENQUIRY US?
1)Strict QC factory—at least 4 QCs during production, product performance are ensured.
2)Strong technical team—quick to solve problems, creative to design new items, latest RFID items are from us.
3)Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
4)10-year factory — experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
