Compact Contactless RFID Reader Writer with SDK: Your Portable Solution for Efficient Data Management

Compact Contactless RFID Reader Writer with SDK: Your Portable Solution for Efficient Data Management

$85.00

2-99 piece
$80.00

100-299 piece
$76.00

≥300 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products Description

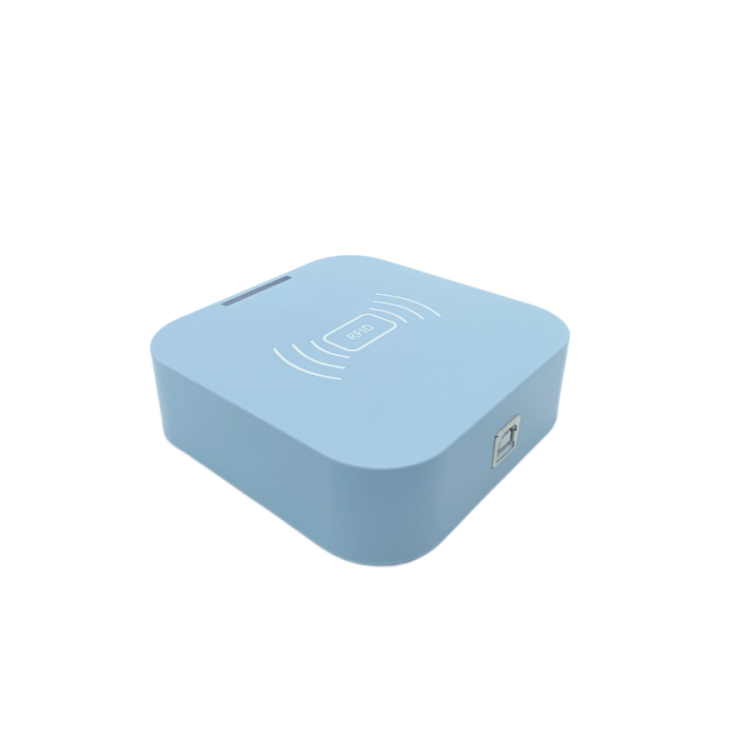

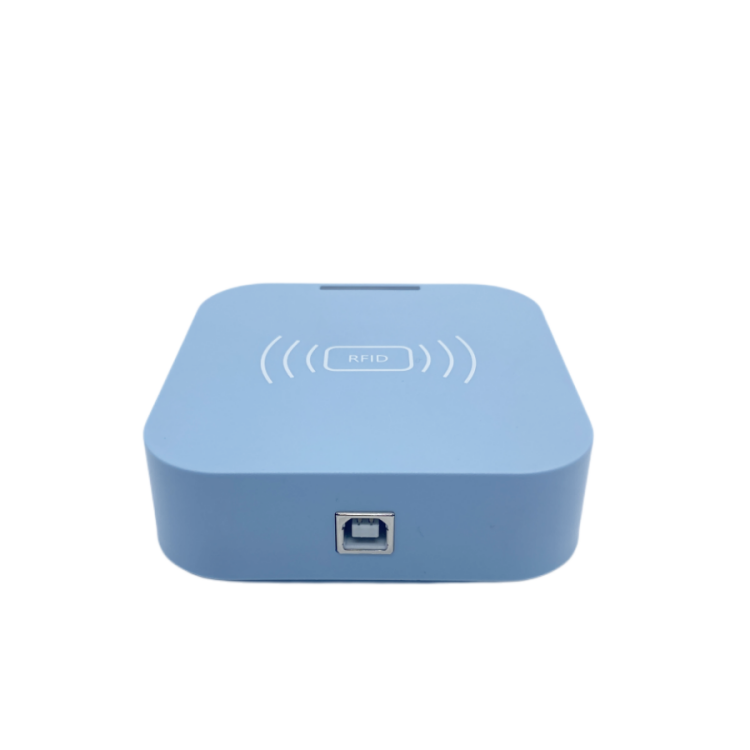

RTEC R2600-F UHF RFID Reader: fast reading speed and waterproof design to meet the demanding working environment.It can read tags
(cards) in multiple formats.The card reader is suitable for indoor and outdoor applications and is suitable for awide range of
RFID applicationsApplications
vehicle access control
automatic charging without parking
personnel access control
logistics monitoring
production automation management, etc
many models available, pls feel free to contact us to send our RFID reader catalog, thanks !

Details Images

Device Spec
Dimensions	98 x 98 x 32 mm
Weight	100 g
Materia	Plastics
Input Voltage	DC 5 V
Standby Current	<100mA
Work Current	1100mA +/-5% @ DC 5V Input
Operating Temp.	- 20 °C - + 65 °C
Storage Temp	-40 °C - + 85 °C
Humidity	-5%RH - 95%RH (no condensation)
Air Protocol	EPC global UHF Class 1 Gen 2 I50 18000-6C
Frequency	902-928MHZ FCC 865-868MHZ ETSI
Output Power	0 – 26dBm
Output Power Precision	± 1dB
Output Power Flatness	± 0.2dB
Receive Sensitivity	< -80dBm
Reading Rate	-
Tag RSSI	Supported
Antenna Detector	-
Ambient Temp Monitor	Supported
Host Communication	USB Communication Support virtual keyboard
GPIO	-
Band Rate	115200 bps
IP Class	IP54

Production Process

Scene Display

1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.

2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price.

3.HOW TO SHIP THE ORDER? We often ship by Express(DHL/Fedex/UPS/TNT), Air, Sea and Train also are ok.

4.WHY ENQUIRY US?
1)Strict QC factory—at least 4 QCs during production, product performance are ensured.
2)Strong technical team—quick to solve problems, creative to design new items, latest RFID items are from us.
3)Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
4)10-year factory — experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
