Gravimetric Mixing and Dosing Systems: Precise Control in Batch Blending Processes

800kg Per Hour Full Automatic Gravimetric Mixing Machine Weigh Scale Gravimetric Batch Blender

             Dosing And Mixing Gravimetric Blender for Plastic Granule Material
                              -----Online& offline material blending solution----

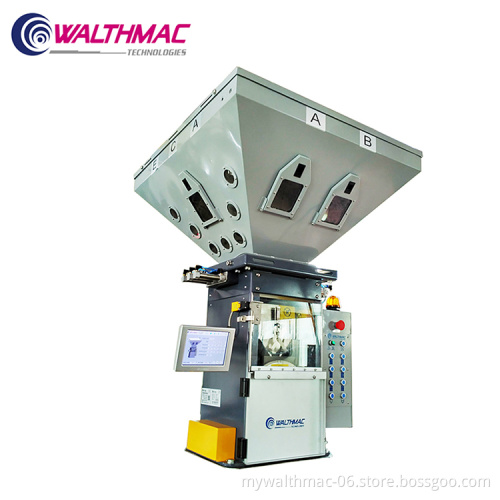

WBB Series Gravimetric Blender

A Our batch & continuous gravimetric blenders are aiming at the requirements of online and

    offline auto-blending work.

B  Our blenders can work with raw materials such as particle, powder and liquid, etc.

C  Application Field: plastic films/ cables/ pipes/ production of raw materials/ plastics modification

    and other industries such as Chemicals.

Gravimetric plastic mixer machine function features:

1.  Max components: 2,4,6,8,12 (can be customized)

2. Precision error: 0.1%.-0.3% (Varied from material and component)

3. Weighing sensor brand: HBM, SMC pneumatic elements

4. Resolution of weigh signal is as high as 4,000,000:1

5. Part of material contact is Made of stainless steel, carbon steel frame, surface treatment: plastic spaying, standard color: light gray(customized)

6. Modular design, detachable structure, free-tool maintenance, easy operation

7. 7” true color of touch screen with multi-language choices, dynamic display of mixing process .Centralized screen with 10’’,can start and stop,monitor and input recipe of the 3 blenders.

8. Special designed agitator structure with dual direction to guarantee full blending

9. Interior of hopper is smooth without any blind side. Quick cleaning window and high/low level window

10. Choices of multiple dosing mode, applicable for different applications, accurate proportion is guaranteed.

11. Position of level sensor is mixing chamber is adjustable

12. Imported energy conservation motor

13. Advanced self-adaptation control algorithm, error self-correcting to each single batch, dosing precision can be optimized even under vibration based on unique anti-vibrating structure and algorithm.

14. USB access

15. Throughout statistics function.

16. Grading password control, alarm records and save function for max.100 group of formula saving.

17. Equipped with alertor, records output is available.

18. Remote controlling function. (option)

19.Walthmac application software with self patent

 Gravimetric plastic mixer machine key specifications:
