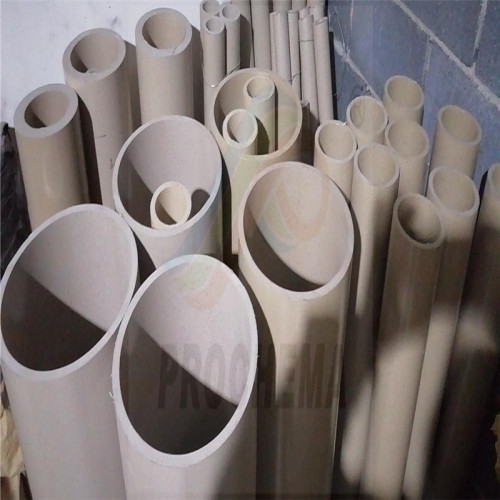

Peek High Mechanical Anticorrosive Insulative Tube

PEEK is a high-temperature , high-performance specialty engineering thermoplastics . It has good mechanical properties and resistance to chemicals, abrasion -resistant properties , hydrolysis , etc. ; its light weight, selflubricating properties , due to the very good processing properties, can be filled with carbon fiber, such as molybdenum disulfide to further improve the lubricity and mechanical strength. PEEK plastic broad application space comes tohigh-tech industries in aviation, machinery electronics, chemical, automotive , etc., may be required for the manufacture of high mechanical parts such as gears, bearings , piston rings, support rings, seals ( letter ) , valves, wear rings.

Properties:

1 . Temperature

PEEK has a high glass transition temperature and melting point (334 °C), which is one of the reasons that it requires heat resistance can reliably use the application . Its load thermal deformation temperature up to 316 °C, continuous use temperature of 260 °C.

 2 Mechanical properties

PEEK is both toughness and rigidity and balance of plastics. Particularly its excellent resistance to alternating stress fatigue is the most outstanding of all plastics , can be comparable with the alloy material.

 3 self-lubricating

PEEK has outstanding sliding properties in all plastic , suitable for demanding low coefficient of friction and abrasion purposes. Especially carbon fiber, graphite certain percentage of each hybrid modified PEEK better self-lubricating properties .

 4 chemical resistance ( corrosion )

PEEK has excellent chemical resistance, in the usual chemicals that can dissolve or destroy it only concentrated sulfuric acid , and its resistance to corrosion and nickel steel similar.

 5 flame retardant

PEEK polymer is very stable , 1.45mm thick sample , without any flame retardant can achieve the highest standards .

 6 peel resistance

PEEK excellent peeling resistance , it can be made of wire or coated with a thin wire , and can be used in harsh conditions .

 7 fatigue resistance

PEEK has the best resistance to fatigue in all resin.

 8 radiation resistance

The ability of strong resistance to γ radiation over the best general-purpose polystyrene resins radiation

resistance . You can still maintain γ radiation dose made up 1100Mrad good insulating ability when high performance wire .



9 hydrolysis resistance

PEEK and its composites from chemical effects of water and high-pressure steam , products made of this

material at high temperature and pressure water can still maintain excellent properties of continuous use



Density	1320kgs/m3
Yong's modulus (E)	3.6Gpa
Tensile strength (σt)	90-100 MPa
Elongation @ break	50%
Notch test	55 kJ/m2
Glass temperature	143 °C
Melting point	343 °C
Thermal Conductivity	0.25 W/m.K
Water absorption, 24 hours (ASTM D 570)	0.1%

PEEK tubing can be used in various industries including the Energy/Oil & Gas industry. Produced in a wide range of sizes and by several different processes, PEEK tubing can be used in many applications such as spacers, acting as a protective coating or sheath, as well as pipes for the transfer of high temperature fluids. PEEK tubing has one of the highest strength-to-weight-ratios and moreover the required strength to resist continuous use at HPLC pressure. Therefore, PEEK tubing has become a popular alternative for stainless steel tubing.
