Electrolysis Water to Produce Hydrogen PEM PFSA Membrane

Electrolysis Water to Produce Hydrogen PEM PFSA Membrane

$890.00

≥5 Square Meter

Min. Order:: 5 Square Meter

Min. Order:: 5 Square Meter

Transportation:: Ocean, Land, Air, Express, Express

Port:: shanghai , shenzhen, guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Certificate:	MSDS ISO
HS Code:	3921909001
Transportation:	Ocean,Land,Air,Express,Express
Port:	shanghai ,shenzhen,guangzhou

Product Description

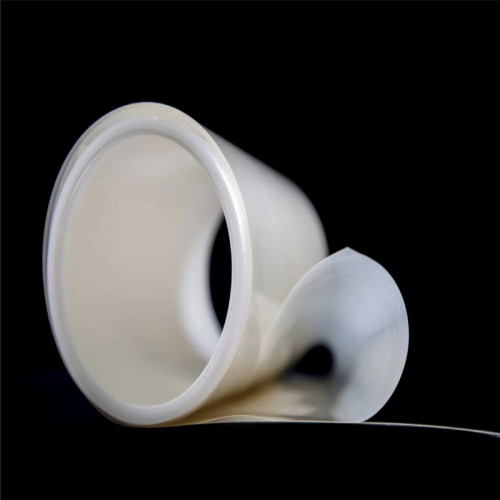

Electrolysis Water to Produce Hydrogen PEM PFSA Membrane N117 N116W

proton exchange membranes Perfluorinated ion membrane N-11 series

Perflurorinated Ion-exchange membrane is a new kind of IEM . It is made by new resin flow technology . This new technology can combine with adulterated technology.

Thus our film has many outstanding features. It not only has the high tensile strength ,high selection,isotropy,high
conductance,but also has the effect of self-humidifying and with low Linear Expansion .

Perfluorinated ion film N-11 series is a single component of Perfluorinated sulfonic acid H type perfluorinated ion film produced by steel strip casting method. As a solid electrolyte separating anode and cathode in various electrolytic cells and cells, Membrane has the property of one-way passage of cation. Due to the use of polytetrafluorin as the main chain, the most suitable molecular weight and ion exchange capacity can be adjusted, so the membrane has the characteristics of chemical resistance and durability. Widely used in: vanadium cell, liquid flow cell, fuel cell, electrolytic water hydrogen production and other fields.

Size: A. Rolling material:

Standard volume: 0.61m*100m

0.80 m * 100 m

Special specification: 0.2m/0.3m/0.4m width, arbitrary length. (The order quantity of special specifications should be more than 50 square meters)

Width: 0.30m (minimum) to 1 m (maximum)

Length: 0.30 m (min) to 1 m (Max)

Note: The supply size of the membrane is based on the dry membrane product at 23℃ and 50% relative humidity. The humidity and temperature of the air will affect its size, so we guarantee that the products to be pretreated by our company are positive tolerances, and the products to be pretreated are all sheet materials.

Type	Thickness (μm)	Weight (g/m 2 )
N-112	51	100
N-1125	64	125
N-113	76	150
N-1135	89	176
N-114	102	200
N-115	127	250
N-116(w) N-117	150 183	300 360
N-1110	254	500

Physical Properties	Technical Index	Test Method
Tensile Strength (MPa)	38	ASTM D 882
Tensile Modulu (MPa)	420	ASTM D 882
Elongation at break (%)	200	ASTM D 882
Specific Gravity	1.98	—
Other properties	Technical Index	Test Method
Conductivity (S/cm)	0.1	GB/T 20042.3-2009
Acid Capacity(meq/g)	1	GB/T 20042.3-2009

Hydrolytic Properties	Index Parameters	Test Method
Water Content (%)	5.0±3.0	ASTM D570
Water Uptake (%)	50.0±5.0	ASTM D570
Thickness Change from 50% RH, 23°C to water soaked,23°C	10	ASTM D756
Thickness Change from 50% RH, 23°C to water soaked,100°C	18	ASTM D756
Linear expansion from 50% RH, 23°C to water soaked,23°C	10	ASTM D756
Linear expansion from 50% RH, 23°C to water soaked,100°C	15	ASTM D756

1. Measurements taken with membrane conditioned to 23°C, 50% RH.
2.Conductivity measurements a 23 °C, 100% RH.
3.A base titration procedure measures the equivalents of sulfonic acid in the polymer, and uses the measurement to calculate the acid capacity or equivalent weight of the membrane.
4.Water content of membrane conditioned to 23 °C and 50% RH (dry weight basis).

5.Water uptake from dry membrane to conditioned in water at 100 °C for 1 hour (dry weight basis)

Application:
It can be applied in Fuel cell, Vanadium batteries, electrolyzer,electrodialysis,

electochmical sensors as the solid electrolytemembrane .

Vanadium Flow Battery

Packing:

Film packaging, the use of coil, the number of small no core, more volume containing core. As the size of Perfluorinated ion film will change under different temperature and humidity, the perfluorinated ion film is covered with hard protective film to facilitate MEA's spraying and reduce the size stability. The outer packing adopts plastic drum or hard carton packaging.

For special sizes and packing, please contact sales staff.

Recovery and Treatment:

As the product will volatilize toxic and harmful substances during incineration, it can be disposed by landfill method. Incineration should be allowed only if the incinerator can remove hydrogen fluoride and other acid combustion products. The disposal of this product must comply with local laws and regulations.
