CNC Tungsten Carbide Tipped Through Hole Drill Bits: Precision Drilling Solutions

CNC tungsten carbide tipped through hole drill bit  of drill

Carbide Drill Bit Features:

• Suitable for drilling wood, PVC and plastic

• Super abrasion, high precision,light cutting and no burrs around hole side

• The edge part formed in one piece by the full automatic digital control Grinder.

• Concentricity of drill is below 0.01mm

• Excellent effect for hard boards such as melamine panels

• Solid Carbide processng wood drill bit makes longer life

• Customer design offered

Application:

• Portable boring machine.
• Automatic boring machine
• Adjustable drill bit for cnc machine center
• For chip free drilling of through holes in solid wood and wood-based panels

Raw material:

• Shank is made of Steel 40Cr.
• carbide tip are made of high quality alloy which the hardness up to 93.6 HRA

Function:

• CNC processing machine
• electric power tool
• acrylic board,PVC,wood

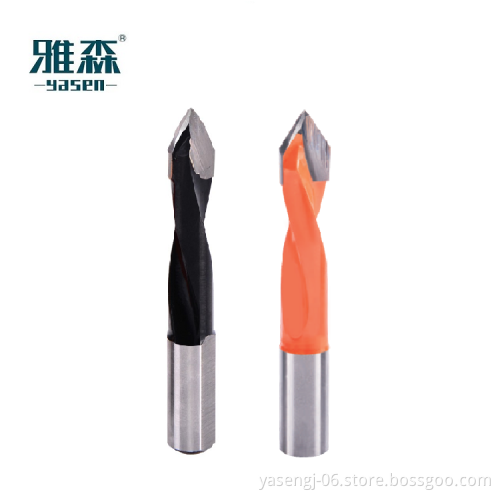

Products show:

Company show:

Our company uses the LASER MARKING MACHINE  for labelling the specification and the brand.

        Our company attend several international and domestic woodworking professional fairs every year.

Announcements for using:

1,The drill bit and the blade edge are very sharp and handling with care in the process of dismantling to avoid collisions. Back it to the special packing box, and make dust and rust prevention when it is not in use.

2,Check the blade edge before using in order to avoid unnecessary wastes.

3,Measure the adaptor and bit total length after installed. Adjust the screw in the drill shank to control the length.

4,Choose the adaptor which is suitable for the machine.  High-precision adaptor and high-precision drill is one way to ensure the quality of machining.

5,Must pay attention to the dust and rust prevention of adaptor and the screw in the drill bit. It will affect the final result or even might damage the drill bit and adaptor if screw is not lock.

6,Pay attention to the dust and rust prevention for the boring head and boring anchor when the boring machine is not in use.
