420mpa 60000psi intensifier waterjet high pressure pump
-
USD20000≥1 Set/Sets
- Payment Type:
- T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 3 Days
- Transportation:
- Ocean
- Port:
- QINGDAO
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 500 SETS/YEAR |
| Supply Ability: | 500 SETS/YEAR |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE,ISO |
| Transportation: | Ocean |
| Port: | QINGDAO |

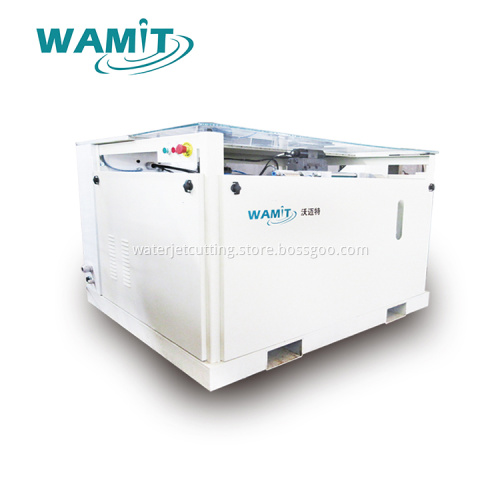

420mpa 60000psi intensifier waterjet high pressure pump for water jet cutting machine.
1. Model: WMT420
2. Maximum pressure: 60000Psi(413.8Mpa)
3. Continuous working pressure: 55000Psi(380Mpa)
4. Diameter of orifice is 0.33mm(0.013inch)
5. Max. water discharge is 3.7L/min
6. Water inlet pressure: 0.4Mpa
7. Main motor power: 37KW(50HP)
8. Automatic servo control system, output pressure control mode, intelligent start-stop function.
9. Overpressure automatic shutdown and undervoltage automatic protection function.
10. Power supply: 380VAC, 50HZ, 3 Phase. can make 415V and 220V.
company show:
We are a professional manufacturer of water jet cutting machine. We are specialized in R&D, manufacturing, sales and technical services of ultra high pressure (UHP) water jet cutting systems and relative parts.
With more than ten years of development, our "WAMIT" brand water jet cutting machine are recognized by many customers.Our main product is "Ultra High Pressure CNC Water Cutting Machine", which is the world's latest cold cutting new technology and advanced manufacturing equipment. It is also a high-tech in the fields of electrical integration, ultra-high pressure water jet technology and numerical control automation, automatic detection and compensation, computer-aided design and manufacturing, and robot application, it is a world-class high-tech product.
We have 37KW intensifier pump, 15KW servo direct drive pump, we also can provide 3 axis , 5axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting.
Our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.
1.Certificate: Our machine will be strictly according to Safety standard and passed European CE certificate.
2.Maintenance: free of charge for 12 months. Consumables are available at low price.
3.Equipment confirmation: Technicians debug the equipment carefully and confirm to the customer via videos.
4.Confirm the actual operation of the equipment before delivery.
5.Technical support: 24 hours service for free
6.Training: manual instruction and Videos for software Installation for choice, the installation and training time is generally 7-10 days.
1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally spea king is 30 days. If have stock, 7-15 days.
