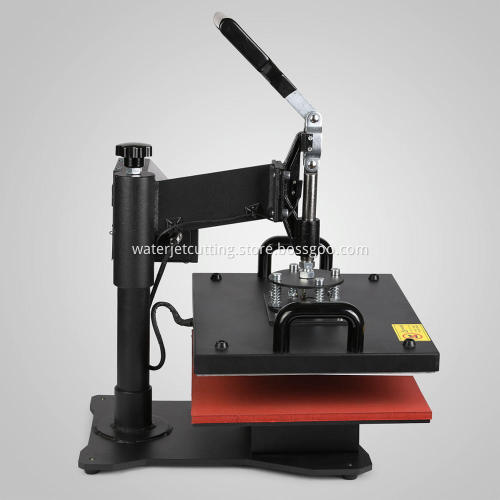

3D Cup Heat Press Machine 15"X12" (38X30cm)

6IN1 3d Heat Press Machine 15"X12" (38X30cm) Heat Platen T-shirt Sublimation Transfer machine

This 6 in 1 heat press machine can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads,

jigsaw puzzles, lettering, other misc. fabrics & materials.

It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc.

This all-in-one press includes flat platen, mugs and plates. The swing-away heat press boasts all of the must-have

attachments.

It has a built-in Tefon coated 12" x 15" (38X30cm) heat platen with a full range of heating coils to allow for consistency

throughout its surface. The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge

ranging from 0 - 250ºC (about 430ºF).

Package list

1 X Fully-assembled machine with platen press
1 X Hat press
2 X Mug presses
2 X Plate presses
1 X Removable silicone pad and cotton pad
1 X Operating Manual
T-shirts, cups and hats are NOT included

Warehouses Distribution

 1) We have ten more overseas warehouses
 2) Shanghai's warehouse covers Asian distribution
 3) Los Angeles's warehouses cover American distribution
 4) Bremen and Portsmouth's warehouses cover European

    distribution
5) Sydney's warehouses cover Oceanian distribution

Temperature range:	32 - 430ºF (0 - 250ºC)	Dimension  (w/ platen press):	15 1/4"L x 15"W x 17"H
Timer control:	0 - 999 seconds	Platen Press (telfon-coated):	12" x 15" (38X30cm)
Wattage:	1100W	Hat/Cap Press:	6"x 3" (curved)
Power input:	110V or 220V	Mug Press #1:	2.5"-3" diameter
Mug Press #2:	12OZ latte mug (Cone)	Plate Press #1:	5" max diameter
Plate Press #2:	6" max diameter

Features

1. Large 12" x 15" (38X30cm) transfer element
2. Digital LED temperature and time controller
3. Full 360-degree rotation of swing-away design
4. Fahrenheit and Celsius scale are selectable
5. Full-range pressure-adjustment knob
6. Tefon-coated platen press element
7. 2 4/5" Long arm handle
8. Detachable lower platform
9. Adjustable multi-spring balancer

10. 4/5" thick heating board
11. Upgraded aluminium alloy cradle
12. Metal and plastic construction
13. Built-in fuse for safe using
14. Adjustable feet for unevenly floor
15. CE certification
16. 2-year warranty

Packaging
Size	53 (L) * 49 (W) * 50 (D)
Weight	32.09kg
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Application

1.

Preheat temperature to 150-185℃(300℉ to 350℉)

Put the t shirts on the machine

When temperature to 160-185℃(330℉ to 350℉),Countdown 20 seconds

Transfer paper

2.

Put the mug into machine

Heat temperature to 165℃(220℉ to 325℉), Countdown 30 seconds

Sublimation paper

3.

Put the cap into machine

Heat temperature to 165℃(220℉ to 325℉), Countdown 30 seconds

Sublimation paper

4.

Put the cushions on the machine

Heat temperature to 180℃(220℉ to 380℉), Countdown 60 seconds

Sublimation paper

5.

Preheat temperature to 150-185℃(300℉ to 350℉)

Put the bag on the machine

When temperature to 160-185℃(330℉ to 350℉),Countdown 20 seconds

Transfer paper

6.

Put the mouse pad on the machine

Heat temperature to 175℃(220℉ to 375℉), Countdown 60 seconds

Sublimation paper
