3040 High Precision DIY Digital 3D Printer 220V
-
USD650≥1 Piece/Pieces
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 20000pcs/year |
| Supply Ability: | 20000pcs/year |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE,ISO |
| Transportation: | Ocean,Air |
| Port: | SHANGHAI |

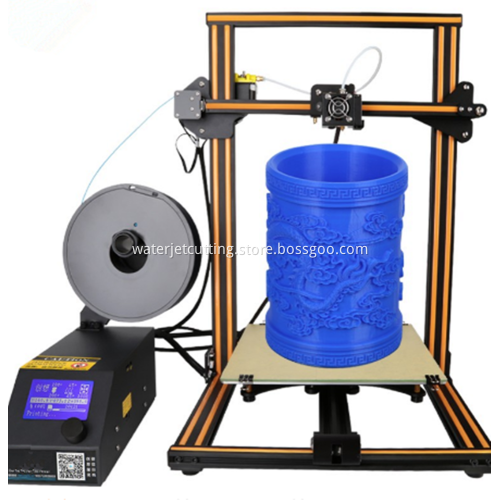

New 3040 High Precision Larger Size DIY Digital 3D Printer 220V
Single package size: 60X59X61 cm
Single gross weight:9.0 kg
Package Type:600*590*610mm
LEAD time: 10 days
Features:
1. PRODUCT HIGHLIGHTS
We have update this type 300mm ,Z axis update to 2 lead screws+motor wires+Filament Monitoring Alarm Protection.
High Accuracy, Big Printing Volume, Stable, Low noisy.
2. EASY ASSEMBLY
Deliveried with three sets, just need about 10 minutes to assemble well.
3. PRINTING SIZE (Approx.):
Prints size of 300 * 300 * 400mm / 11.81 * 11.81 * 15.75 inch,No longer will you be limited to small models.
4. MACHINE PRECISION
High precision imported Aluminum V-
slot Bearing + precision roller with high positioning accuracy, move smoothly,print faster.
5. LONG SERVICE LIFE
Industrial-grade PCB can continuously print for 200 hours without pressure, but with matures printing technology and stable performance.
6. HEATING BED
Industrial grade aluminum alloy platform&special tempered glass to ensure the formation of flat and to prevent wear and tear. Easy to take out the model.
7. EASY WIRING
All wires are attached with lables, No need to worry about wrong wiring. All you have to do is hook everything up.
Specifications:
|
Color |
Blue/orange/black |
|
Product Highlights |
Filament detector,Resume print after power off. |
|
Technology |
FDM/Fused Deposition Modeling |
|
Printing Size |
300 * 300 * 400 mm / 11.81 * 11.81 * 15.75 inch |
|
Product Size |
490 * 600 * 615 mm / 19.29 * 23.62 * 24.21 inch |
|
Weight |
9KG N.W. |
|
Printing Accuracy |
about ± 0.1 mm |
|
Printing Speed |
Normal: 70mm/s, Max: 200mm/s |
|
Nozzle Diameter |
Standard 0.4 mm / 0.02 inch ( can be changed to 0.3/0.2 mm) |
|
Nozzle Temp |
260 degree (Max) |
|
Extruder Quantity |
1 piece |
|
Extruder Temperature |
PLA: 190℃-210℃;ABS: 200-220℃ |
|
Hot Bed Temperature |
PLA: 50℃ (The maximum setting is 135 ° C) |
|
Working Condition Temp |
5-40℃, Humidity: 20-70% |
|
Materials |
1.75mm PLA, ABS, TPU, Copper, Wood, Carbon Fiber, Gradient Color etc. |
|
Operating Software |
CURA, Repetier-Host,Simplify 3D etc. |
|
Software Supporting |
Software Supporting rks, UG, 3D Max, Rhino 3D design software, etc. |
|
Format |
STL, OBJ, G-Code, JPG |
|
Printing Method |
SD card(off-line), contact to the PC(on-line) |
|
Body Structure |
Imported V-Slot Aluminum Bearings |
|
LCD Screen |
3 inch LCD screen with aircraft knob |
|
Hot Bed |
Industrial grade aluminum alloy platform + 3mm special tempered glass |
|
Power Supply |
input: 110-240V ;output: 12V |
|
Maximum Power |
230W |
|
Voltage |
220V |
|
Cura Language |
English |
|
Interface Language |
English |
|
Format |
STL, G-Code,OBJ ,AMF |
|
Operating System |
Linux, Windows, XP, VISTA, OSX, MAC. |
Package list:
3D Printer with filament monitoring alarm protection
