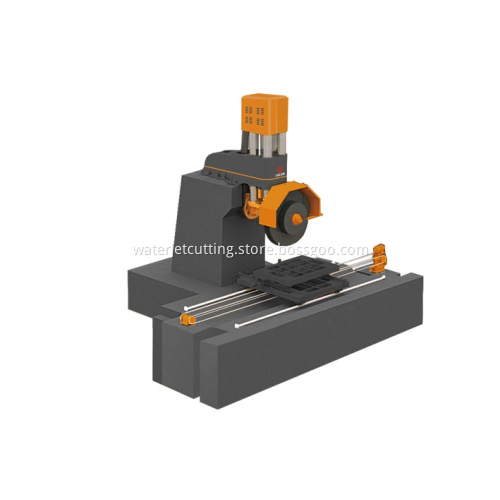

WAMAI-1600 Single Arm Multi-blades Stone Cutting Machine
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- QINGDAO
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 200 SETS/MONTH |
| Supply Ability: | 200 SETS/MONTH |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE,ISO |
| Transportation: | Ocean |
| Port: | QINGDAO |
WAMAI-1600 uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance;especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision; the machine with compact structure ,easy operation,adopts high-quality materials , especially suitable for cutting domestic granite blocks.
| Model | Unit | WAMAI-1600 |
| Max.blade diameter | mm | Φ1600 |
| Blade Number | P | 16/18/22 |
| Lifting stroke | mm | 1000 |
| Max.processing size(L*W*H) | mm | 3500×1300×900 |
| Water consumption | m3/h | 30 |
| Power of main motor | kW | 75/90/110 |
| Total power | kW | 85/100/120 |
|
Dimension(L*W*H) (from base to the highest point) |
mm | 8500×5500×6500 |
| Weight | kg | 10000 |
