Product Description
Product Description

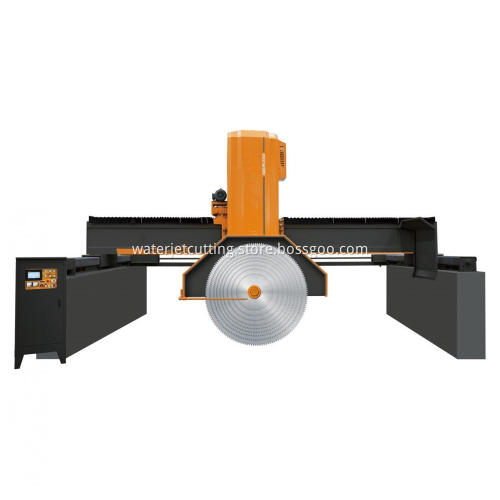

WAMAI-2200/2500/2800 uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding and adjusts the speed according to the stone material. It uses hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials; The block can be placed on the ground directly and economize the worktable and its maintenance costs; The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.


Appellation unit WAMAI-2200/2500/2800
Max.blade diameter mm Φ2200/Φ2500/Φ2800
Max.worktable length mm 3800/3500/3200
Max.worktable width mm 2200
Max.lifting stroke mm 1350
Water consumption m³/h 15
Power of main motor kw 37/45
Total power kw 47/55
Dimension(L×W×H) mm 8000×4400×3700(base to highest point)
Total power kg 12000
