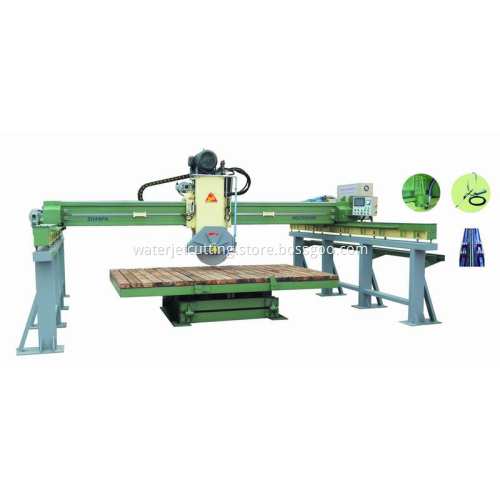

Infrared Bridge Stone Sheet Automatic Cutting Machine

https://youtu.be/sssEqH4DoBE HQJ320x220 Infrared bridge saw blade automatic cutting machine for stone and granite sheet

It adopts PLC control and automatic positioning techniques for various moves of the cutter frame & linear rolling guide driving,magnetic ruling,laser device setting.It is consists of high quality steel.The platform can be 360degree rotatable and automatically trun slate up.It can cut sizeable slabs with high precision and efficiency.

Technical parameters:

1·max.blade of diameter           φ400-600mm

2·max.stroke for transverse            3800mm

3·max.stroke for longitudinal            3800mm

4.elevation stoke for main shaft of blade   430mm

5·max.titling degree for work-bench         87°

6·max.rotation degree for work-bench      360°

7.location degree for work-bench  0°- 45°- 90°8·power of main motor                  18.5kw

9·total power of machine                23.5kw

10·water consumption                   2m3/h

11.water pressure                    >0.2 Mpa

12.overall size for machine  4800×5816×2350mm

13·total weight for machine              5800kg
