2 heads 4 axis 3D Stone CNC Router
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 20-30 Days
- Transportation:
- Ocean
- Port:
- QINGDAO
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 60 SETS/MONTH |
| Supply Ability: | 60 SETS/MONTH |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE,ISO |
| Transportation: | Ocean |
| Port: | QINGDAO |

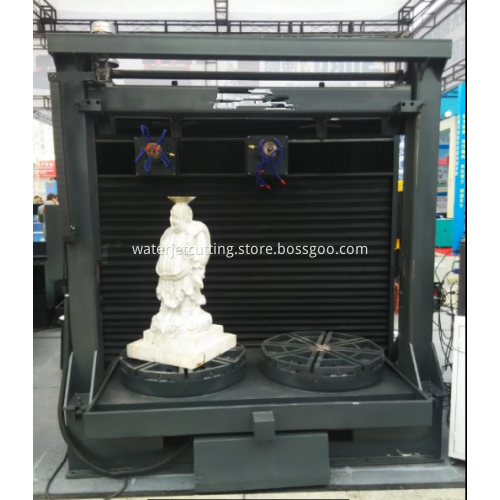

2 heads 4 axis 8013 3D Stone CNC Engraving Router Machine
Features:
1. The bed lathe is made of cast steel, analyzed and designed with FEA, relieving stress, so the working table is more stable.
2.The gantry are steel, could handle more heavy duty work and with a longer life.
3.Working table is aluminium profile.
4. Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly.
5. DSP control.
6. High speed and efficiency, empty speed is up to 25000mm/min, for engraving wave plank, the speed can reach 20000mm/min.
Application:
These machines are suitable for stone industry. Mainly used for stone carving such as granite,marbel,sandstone,cement brick,crystal,gemstone and so on.
|
Performance Parameters |
|||
|
Name |
WAMAI-0813-F2 |
||
|
Lathe Bed |
Cast |
||
|
X Y Z A Guide Rail |
X, Y, Z ball screw, linear guide rail (Taiwan), A axis is ball screw. |
||
|
X Y Transmission |
Imported Rack Gears |
||
|
Z Transmission |
Imported Ball Screw |
||
|
Spindle Motor |
6.0KW spindle cooling by water (2 set) |
||
|
Invertor |
7.5 KW(2 sets) |
||
|
Control System |
Computer control, NCSTUDIO 4 axis control |
||
|
Typeset Software |
Type (English)/Ucancam |
||
|
Motor |
Servo motor (TECO) |
||
|
Driver |
Servo Driver |
||
|
Delivery time |
35 days |
||
|
Tool Diameter |
2 ----20 |
||
|
Application |
Mainly used for 3D status, max. working diameter is 800mm, max. Working height is 1300mm. |
||
|
Quotation(FOB Qingdao) |
0813 |
800X800X1300MM |
|
|
Warranty |
One year (Spindle motor is half year. The blades, sensor, power cable are expendables, not include.) |
||
|
Payment |
30% prepayment by T/T, 70% TT before delivery after sending videos and pictures. |
||
1. Normal wrap with plastic then use wood case or can depend on customer's requirement.
2. Normally delivery the goods by sea. Also can based on customer's requirment.
1. we have exported CNC machine for more than 5 years. We are professional supplier for CNC router. Also have rich experience in after-sales service.
2. We have own design team can design and manufacture any machine base on customer`s requirement.
3. The bed lathe is made of cast steel, analyzed and designed with FEA, relieving stress, so the working table is more stable
4. Our machine accessory are purchased from famous brand company. The quality is guaranteed.
5. We have branch company and engineers in Australia, Vietnam, India. So we can provide the best and fastest after-sales service. They can help you to solve any questions at any time. We provide our customer forever service. If you have any problems about machine you can contact with us via email,skype,WeChat, Whatsapp or phone, we will reply you at once.
6. Each CNC router machine will be test and check at least 72 hours from small part to the whole machine before delivery.
7. Warranty:
1 year from cargo on board.
The main accessories like spindle, motor all are one year.
The cutting tools are consumable parts not included in warranty.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation will sending detail training video,user`s manual along wih the machine.
Q: What`s the package?
A: Normally we have 3 layers package. For the outside we use wood case with steel frame. In the middle the machine is covered with bubble wrap to protect the machine from sharking. For the inside layer the machine is covered by plastic cloth for waterproof.
Q:How can i do if the machine out of order?
A: If the machine have any problems which you cann`t fix it by yourshelf. Then pls contact ue via email,phone,whatsapp etc. We will reponse whith in 12 hours as quick as we can to solve it for you. We also can provide engineer service to your place.
