Stone Granite and Marble Slab grinding machine

Stone Granite and Marble Slab grinding machine

USD28947

≥1 Set/Sets

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: QINGDAO, SHANGHAI, NINGBO

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean
Port:	QINGDAO,SHANGHAI,NINGBO

Product Description

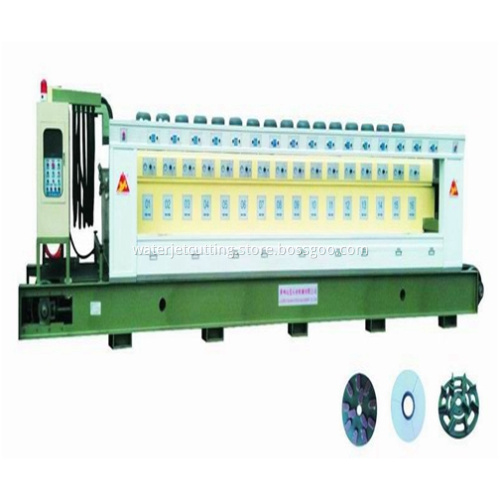

High Efficiency Marble Polishing Machine , Can be 12 heads, 16 heads, 20 heads, 24 heads.

1. Granite Stone Polisher Price surface for granite tiles,slab equipped with the resin disc special elastic polishing heads, polishing with more comprehensive,more efficient,lower abrasive wearing.
2.Using PLC system and liquid crystal display screen menu offer intelligent control.
3.Easy to operate.the working pressure,the beam travel speed and the belt advance speed can be adjusted according to the materials and the finishing gloss.
4.Establishing Auto-dodging function and shape-memory funtion,equiped with an advice to prevent the grinding hand from mistakenly hitting the belt,having high automation operation and low labor the strength.
5.Using the most advanced and high-quality construction,rational structure,high stabiity and efficiency,and energy saving operation.
6.Using central automatic lubrication system,so that all moving parts and bearings can get a good lubricating effect and longer life.

7.The power movement of polishing heads uses the narrow V belt with teeth set,to improved slabs flatness,reduced movement consumption and enhances the longer service life.

It is suitable for grinding and polishing slab.It is with logical construction;reliable performance;highly efficiency running.Control system is advanced, which adopts PLC control and with text display,which realizes intelligentize control.

It has the following features:

1.This machine is with pitch grinding disc bush which is with long life; lower failure rate; higher efficiency,lower abrasive exhaustion rate,lower slab broken rate.

2.It uses transmission belt with the same thickness to confirm slab with the same thickness.

3.The moving speed of the transmission belt and penulation speed of transverse-beam can be adjusted by transducer.

4.This machine is with lower exhaustion power,lower cost;higher grinding and polishing efficiency;easy operation;maintenance simple.

ZDM100-6HEAD

Processing width 300-1000mm

Processing thickness 10-60mm

Grinding head quantity 6pieces

Total power 50.2kw

Grinding head motor power 6*7.5KW

Transmission-belt motor power 2.2kw

Transverse-beam pendulation motor 3kw

Transmission-speed for belt 0-2200mm/min
