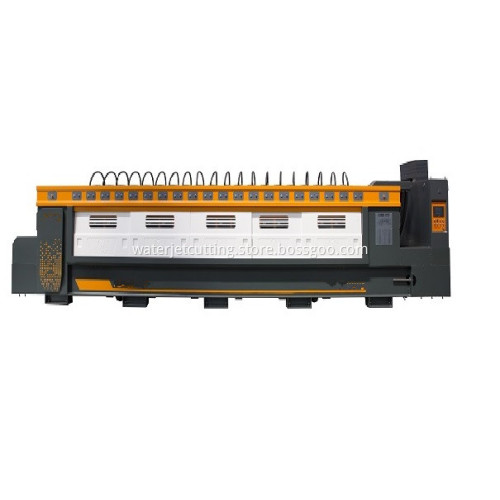

Marble Polishing Machine Use Resin Grinding Disc
-
USD66000≥1 Set/Sets
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- QINGDAO, SHANGHAI, NINGBO
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean |
| Port: | QINGDAO,SHANGHAI,NINGBO |
High Efficiency Marble Polishing Machine , Can be 12 heads, 16 heads, 20 heads, 24 heads.
1. Granite Stone Polisher Price surface for granite tiles,slab equipped with the resin disc special elastic polishing heads, polishing with more comprehensive,more efficient,lower abrasive wearing.
2.Using PLC system and liquid crystal display screen menu offer intelligent control.
3.Easy to operate.the working pressure,the beam travel speed and the belt advance speed can be adjusted according to the materials and the finishing gloss.
4.Establishing Auto-dodging function and shape-memory funtion,equiped with an advice to prevent the grinding hand from mistakenly hitting the belt,having high automation operation and low labor the strength.
5.Using the most advanced and high-quality construction,rational structure,high stabiity and efficiency,and energy saving operation.
6.Using central automatic lubrication system,so that all moving parts and bearings can get a good lubricating effect and longer life.
7.The power movement of polishing heads uses the narrow V belt with teeth set,to improved slabs flatness,reduced movement consumption and enhances the longer service life.
Technical Data
| Appellation | Unit | WAMAI1200-12C | WAMAI1200-16C | WAMAI1200-20C | WAMAI1200-24C |
|
Max.processing width(optional) |
mm | 1200 | 1200 | 1200 | 1200 |
| Max.process height | mm | 50 | 50 | 50 | 50 |
| Belt advanced speed | m/min | 0-2.6 | 0-2.6 | 0-3 | 0-3 |
|
Number of grinding head(optional) |
pcs | 12 | 16 | 20 | 24 |
| Water consumption | m³/h | 13 | 18 | 22 | 27 |
| Air consumption | m³/h | 14 | 19 | 24 | 29 |
|
Power of each polishing spindle |
kw | 9*7.5kw+3*11kw | 12*7.5kw+4*11kw | 15*7.5kw+5*11kw | 18*7.5kw+6*11kw |
| Total power | kw | 120 | 155 | 200 | 230 |
| Dimension(L*W*H) | mm | 7000*3100*2200 | 8230*3100*2200 | 9600*3300*2400 | 10900*3300*2400 |
| Weight | t | ≈13 | ≈16 | ≈20 | ≈24 |
PROCESSING
LOADING
