45 angle cutting Natural Stone Tile Cutting Machine

USD21000

≥1 Set/Sets

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean

Port:: QINGDAO, SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	150 sets/month
Supply Ability:	150 sets/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, ISO
Transportation:	Ocean
Port:	QINGDAO,SHANGHAI

Product Description

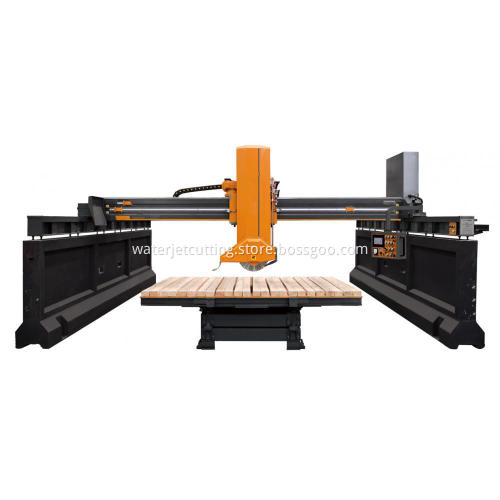

WAMAI-700X machine stone marble uses PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device , uses inverter to control left –right feeding , adjusts the speed according to the stone material . It uses hydraulic lifting system , main spare parts adopt imported good –quality materials , The head can rotate 0-50°, using a wide range . Thus the whole machine is featured as high cutting efficiency , high cutting precision , high stability , easy-operating to suit specially cutting granite and marble with high wave and big size , and shaped stone products.

Technical Data

Name	Unit	SQC-700X Natural Stone Tile Cutting Machine
Max.Saw diameter	mm	700
Lifting stroke	mm	470
Blade angle	°	0°-50°
Table size	mm	3200*2000
Table rotation range	°	0°,90°/0°-360°(set up by each 45 degree)
Tilting angle	°	85°
Main motor power	kw	18.5
Water consumption	m3/h	3
Dimensions	mm	600057003600
Total weight	kg	6400(With steel stand 7500)
