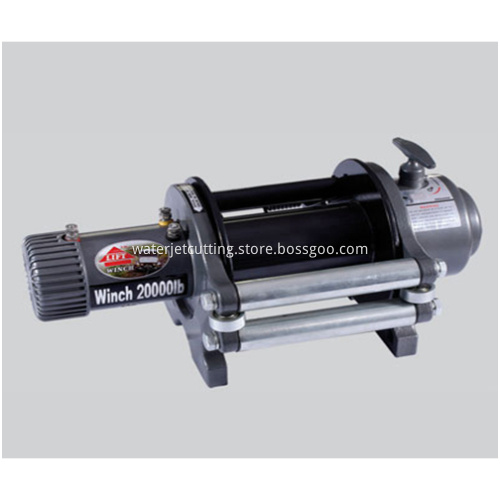

20000lbs Wire Rope Electric Winch for Truck
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 10 Set/Sets
- Min. Order:
- 10 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- NINGBO
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CHINA |
|---|---|
| Productivity: | 50000SETS/YEAR |
| Supply Ability: | 50000SETS/YEAR |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | CE |
| HS Code: | 8425319000 |
| Transportation: | Ocean,Air |
| Port: | NINGBO |
Product Description
Product Description
This is 20000lbs winch with wire rope for truck. you can choose 12V, 24V.
we can do OEM.
20000LB FEATURES AND SPECIFICATIONS
| Single line rated pull | 20000LB (9072kg) |
| Motor | 7.3hp/5.5kw(12V),6.38hp/4.8kw(24V), Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train ratio | 375:1 |
| Clutch | Slid ar |
| Braking Action | Two-way, Automatic in-the drum |
| Drum Size | Φ99mm×201.5mm |
| Cable | Φ13.5mm×30m |
| Remote Control | Wired remote control |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| MAX Current (No load) | ≥75A (12V) ≥65A(24V) |
| MAX Current (load) | ≥465A(12V) ≥410A(24V) |
| Finish | Dark gray powder coat |
| Weight | G.W:54kg (without cable), 85kg(with cable) N.W:52Kkg |
| Cable Weighth | 33kg |
| Overall Dimensions | 565×310×280MM |
| Mounting hole | 254×114.3mm, 254×194.3mm M10×30 Outside Hexagon 8.8 grade 8 pieces |
20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull |
lbs
|
NO |
8000
|
10000
|
13000
|
16000 | 20000 |
|
kg
|
load | 3629 | 4536 | 5897 | 7258 | 9072 | |
| Line Speed |
ft/min
|
19.8 | 11.6 | 9.7 | 8.58 | 6.6 | 3.96 |
|
m/min
|
6 | 3.5 | 2.95 | 2.6 | 2 | 1.2 | |
| Motor |
Amps
|
75 | 190 | 260 | 310 | 380 | 465 |
20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
| Line Pull |
lbs
|
NO |
8000
|
10000
|
13000
|
16000 | 20000 |
|
kg
|
load | 3629 | 4536 | 5897 | 7258 | 9072 | |
| Line Speed |
ft/min
|
19.8 | 11.6 | 9.7 | 8.58 | 6.6 | 3.96 |
|
m/min
|
6 | 3.5 | 2.95 | 2.6 | 2 | 1.2 | |
| Motor |
Amps
|
65 | 170 | 230 | 290 | 360 | 410 |
20000LB LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | 5 | |
| Rated line pull per layer | lbs | 20000 | 16000 | 13000 | 10000 | 8000 |
| kg | 9072 | 7258 | 5897 | 4536 | 3629 | |
| Cumulative cable capacity | ft | 16.5 | 37.3 | 61 | 89 | 99 |
| m | 5 | 11.3 | 18.5 | 27 | 30 | |
