16800lbs Electric Truck Winch for Sale

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	50000SETS/YEAR
Supply Ability:	50000SETS/YEAR
Payment Type:	T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	CE
HS Code:	8425319000
Transportation:	Ocean,Air
Port:	NINGBO

Product Description

This is 16800lbs winch with wire rope for truck. you can choose 12V, 24V.

we can do OEM.

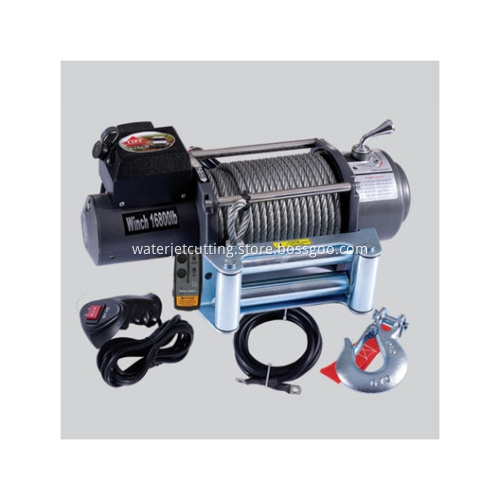

16800lbs Winch

16800 LBS FEATURES AND SPECIFICATIONS

Rated Line Pull	16800LBS (7620kg) single line
Motor	5.6hp/4.2kw,12V, 6.17hp/4.6kw,24V, Series Wound
Control	Remote switch, 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear train ratio	312.4:1
Clutch	Flexible operation,water-resistent
Braking Action	Automatic In-The-Drum
Drum Size	Φ85mm×L221.5mm(3.35"×8.72")
Cable	Φ11.5mm,28m
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(183mm)
Finish	Dark gray powder coat
Overall Dimensions	21.5"×7.09"×9.73"(547mm×180mm×247mm)
Mounting Bolt Pattern	254mm×114.3mm
Weight	N.W.54kg;G.W.56kg
Packing Size	60×23×38.5cm 1PC/CTN

16800LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

16800LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V

16800LBS LINE PULL AND CABLE CAPACITY
