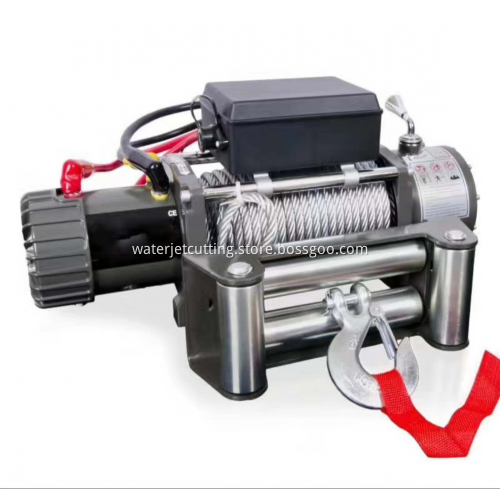

13000lbs wire rope Heavy Duty Electric Winch
  • 13000lbs wire rope Heavy Duty Electric Winch
13000lbs wire rope Heavy Duty Electric Winch

13000lbs wire rope Heavy Duty Electric Winch

  • USD250
    ≥1 Set/Sets
Payment Type:
T/T, Paypal, Money Gram, Western Union
Incoterm:
FOB, CFR, CIF, EXW, FCA, CPT, CIP
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
2 Days
Transportation:
Ocean, Air
Port:
NINGBO
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 50000SETS/YEAR
Supply Ability: 50000SETS/YEAR
Payment Type: T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate: CE
HS Code: 8425319000
Transportation: Ocean,Air
Port: NINGBO
Product Description
Product Description

This is 13000lbs auto winch can be with nylon rope and wire rope. you can choose 12V, 24V.

we can do OEM.

Car Winch

13000 LBS FEATURES AND SPECIFICATIONS
Rated Line Pull 13000LBS (5897kgs) single line
Motor 5.5hp/4.0kw 12V, 6.44hp/4.8kw 24V Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 218.4:1
Clutch Flexible operation,water-resistent
Braking Action Automatic In-The-Drum
Drum Size Φ64mm×L223mm
Cable Φ9.5mm,26m
Fairlead 4-Way Roller Fairlead
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Dark gray powder coat
Overall Dimensions 21.3"×6.3"×8.6"(540mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.39kg     G.W.41kg
Packing Size 57×19×34.5cm    1PC/CTN

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
Line Pull
lbs
0
2000
4000
6000
8000 10000 13000
kg
0
907
1814
2721
3628 4536 5897
Line Speed
ft/min
22.5 12.4 9.8 8.5 7.5 6.56 4.8
m/min
6.85 3.8 3.0 2.6 2.3 2.0 1.48
Motor
Amps
65 110 165 220 270 340 430

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
Line Pull
lbs
0
2000
4000
6000
8000 10000 13000
kg
0
907
1814
2721
3628 4536 5897
Line Speed
ft/min
24.86 12.79 10.23 8.79 8.04 6.89 5.12
m/min
7.85 3.9 3.12 2.68 2.45 2.1 1.56
Motor
Amps
52 107 146 178 205 235 305

13000LBS LINE PULL AND CABLE CAPACITY
Layers of cable 1 2 3 4
Rated line pull per layer lbs 13000 10010 8840 7410
kg 5897 4541 4010 3361
Cumulative cable capacity ft 15 34.6 58.6 85.3
m 4.58 10.54 17.87 26
