CA4030 800w Mini CNC Engraving Machine For Sale

Included Accessories:

About computer:

Method 1: you can use your own computer which is with 25 needles connector. if you have no 25 needles connector on your computer, we will send you one PCI connector for free.
Method 2: you can buy our computer. it is touch screen, solid state hard disk.

CNC controller:

800w/1.5kw/2.2kw model are with new type cnc controller.

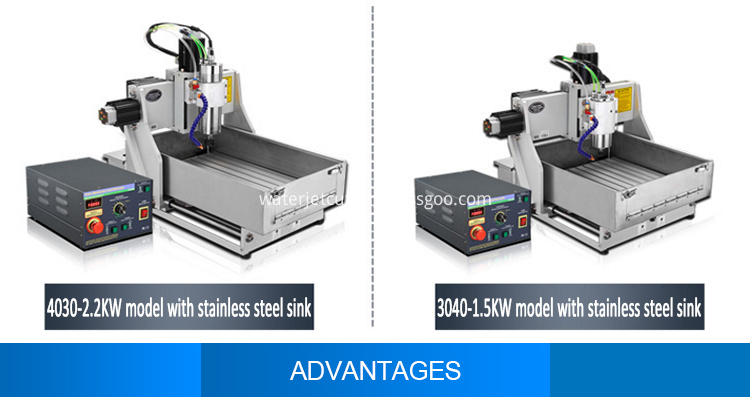

Stainless steel water tank:

1.The processing of metal and jade materials needs to be equipped with a stainless steel sink, which can cool the tool and effectively prolong the service life of the props. The processing effect is good.
2.The processing of metal and jade products can only be done by plane processing, and can not do 360-degree rotating three-dimensional processing, because the clamping force of the four-axis kit is not enough, and the three-dimensional processing products are soft materials, hardwood, olive nucleus, substitute wood, plastic and other materials.

1.Each motor is equipped with a magnetic encoder, a total of three encoders, each encoder can be manually set any limit position, the encoder can record the motor movement position in real time, no longer afraid of dust, sewage interference with the limit, reliability High, more accurate and stable.

2.Each motor is equipped with an aluminum alloy radiator. The motor runs at a faster speed. The XY axis speed is 4000mm/min. The Z axis speed is 3500mm/min. Suitable for small batch processing and production in the factory, more powerful.

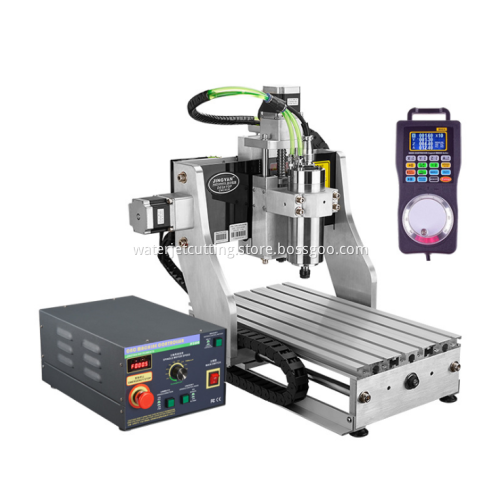

3.The handwheel communicates with MACH 3 synchronously. The handwheel operation can be synchronized with the MACH 3 coordinate value in real time. The operation is more smooth and smooth.

4.Independent R&D control system, integrated control box, driver card, and circuit board are all independent research and development, software upgrade optimization, expansion of functions, powerful functions, and increasingly stable electronic control systems.

5.The circulating water cooling system is clean and environmentally friendly. Even if it is working for a long time, the cooling effect is very good.

6.One-piece gantry base design, stable performance, more secure with the accuracy.

7.Taiwan imports TBI screw. Metal inverters are more resistant to wear and accuracy than plastic inverters, extending machine life

CUTTING SAMPLES:
