Water Jet Cutting Machine for Die CNC Cutting

1000*1000MM cutting size cnc metal abrasive small and mini water jet cutting machine

we have 11.5kw and 15kw direct drive pump and 37kw intensifier pump. direct drive pump will save your 50% electricity cost.

water jet cutting machine can cut nearly all materials:

After service department in the world

 We can provide local service in ARGENTINA, CHILE, MALAYSIA,UK,USA,VIETNAM,RUSSIA,ECUADOR,

SOUTH AFRICA and other countries.  we can arrange engineer for installation.

this model don't need installation.

Advantage:

1.37KW SIEMENS motor. can make 11.5kw and 15kw direct drive pump.
2.All electric components are Schneider brand
3.Can do special size and special design according to customer`s demand
4.Free abrasive sand feeding system
5.We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6.Imported intensifier pump
7.Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8.Soft cover for linear guider or gear and rack, can effectively prevent dust
9.Install an automatic oil tank for cutting table , no need maintenance of linear guider
10.Legitimate WINDOWS 7 system and install the Chinese newest water jet cutting system
11.TBI linear guider and ball screw
12.Variable servo pump can reduce the electricity cost
13.We have agents in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam
14.We can make machine moving speed to 10-50m/min which will improve your cutting efficiency
15.We are finding agent all over the world

16. 2 years warranty time.

17. don't need installation

 A. cutting table

1. Machine style: Bridge type

2. Processing dimension:1000mm×1000mm

3. Z-axis journey is 170mm

4. Control accuracy: ±0.01mm

5. Cutting accuracy: ±0.1mm

6. three-axis control, Auto zero positioning

7. Way of drive : Servo ( drives and motors are from WEIHONG )

8. All screw and linear guide are TBI brand from Taiwan and we install a oil tank to make the linear guider and ball screw keep precision longer.

9.Enrite body, don't need installation

X beam of cutting table applies 8mm steel that can make the accuracy longer. Support beam use 10mm steel, and the water tank is made by 6mm steel.

10. Use soft cover which can protect linear guider and ball screw better.

11.Use flow type abrasive sand hopper, it will be more stable and not easily be broken.

12. With a lubrication oil pump which can automatically supply oil to linear guider, so that the linear guider needn`t maintenance always.

13. small hole loader.

B. choice 1: waterjet pump 420mpa

1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle).

2.Max. oil discharge is 90 L/min

3.Max. water discharge is 3.8L/min

4.Max. diameter of orifice is 0.33mm

5.Max. operating pressure is 420MPa(60000 psi)

6.Continuous operating pressure is 350-380MPa

7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.

8.Type of shift is electronic

9.maintenance free accumulator whose capability is 1.0L Imported from TAIWAN

10.Intensifier is imported from USA

11.With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.

12.all electric components are Schneider brand.

choice 2: 11.5kw direct drive pump. model: WMT SDD 15.( can save at least 50% electricity cost)

continuous working pressure : 36000-40000psi

max pressure: 46000psi

Orifice diameter: 0.3mm

water dischage: 2.5L/MIN

Water income pressure: 0.4mpa

motor power: 11.5kw

pump size: 1250*660*950mm

Choice 3: 15 kw direct drive pump. model: WMT SDD 20 ( can save at least 50% electricity cost)

continuous working pressure : 46000-55000psi

max pressure: 60000psi

Orifice diameter: 0.3mm

water dischage: 3.0L/MIN

Water income pressure: 0.4mpa

motor power: 15kw(20hp)

380V,50HZ,3 PHRASE

size: 1600x800x900mm

C. CNC controller

1. CNC control, apply 15 inch LCD

2. Adopt specialized WEIHONG water jet cutting software, have autosave function for next operation.

3. Apply  SIEMENS PLC instead of relay, buttons are Schneider

4. Legal Windows 7 based, Support DXF file and any auto programming software to produce NC code

D. abrasive sand feeding system, sand consumption is 25kg/hour

 Other optionals please ask us freely. we can do special design.

 this model water jet cutting machine is delivered by one 20'FCL container.

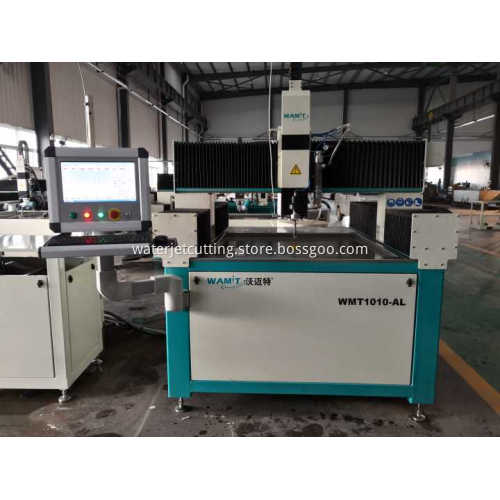

WMT1010-AL ( soft packing)

PUMP:1700×1160×1450=2.8594  950KG
cutting table :2200×2470×2200=11.9548  1150KG

ABRASIVE FEEDER:φ640×1100=0.3536  84KG

oil cooler: 65kg, 0.5CBM.

Total weight: about 2249kg

Total size: about 15.6678CBM

1. Are you manufacturer or trading company?

we are manufacturer of water jet cutting machine in JINAN city, China. but we have our own trading company which is HARBIN QIAN FAN XI FENG MACHINERY CO.LTD

2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?

Generally speaking is 30 days. if have stock, 15 days.
