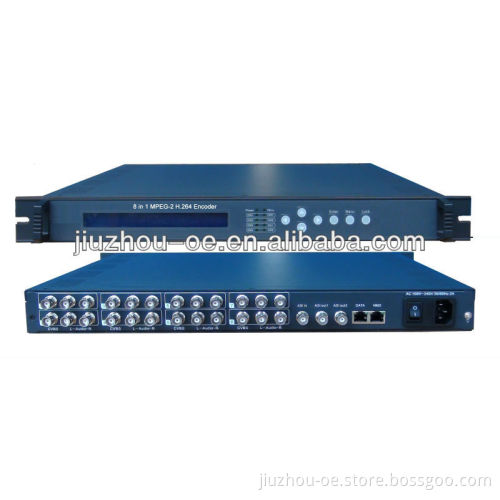

8 in 1 MPEG-2/H.264 SD encoder
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Sichuan, China (Mainland) |
|---|
JZOE-T08 8 in 1 MPEG-2/H.264 SD encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It has 4 independent channels of unbalanced audio & CVBS video input interfaces or SD-SDI input interface, supporting MPEG-2 and H.264 encoder type. Furthermore, it can support the MPEG-1 Audio layer 2, LC-ACC, HE-AAC, and each channel can support ultra low bit-rate (0.25~15Mbps for H.264 encoding, and 0.5~15Mbps for MPEG-2 encoding). Moreover, it has an ASI input and can multiplex the input TS with the 8 encoded SPTS to generate a MPTS output, and users can select the MPTS and 8 SPTS through the front panel operation. Features Support H.264,Mpeg2 video encoding Support MPEG1 Layer 2,LC-AAC,HE-AAC(v2) audio encoding Applicable for one seg(ISDB-T) utilization Support PSI/SI editing and inserting Supports VBR/CBR video bitrate mode Supports MPTS or 8 SPTS UDP IP Output Real-time output bit-rate monitoring LCD / keyboard and SNMP/web management Technical Specifications
Input | 8 × CVBS inputs , BNC interface 8 pairs unbalanced stereo audio inputs, BNC interface 8 x SD-SDI input with embedded audio(Optional) | |
1×ASI input, BNC interface | ||
Video | Resolution | PAL:720*576i/352*288i/320*240i/320*180i/ 176*144i/160*120i/160*90i @50Hz 176*144i/160*120i/160*90i @59.94Hz |
Encoding | MPEG-2 /H.264 | |
Bit rate | 0.25~15Mbps for H.264 encoding 0.5~15Mbps for MPEG-2 encoding | |
Rate Control | CBR/VBR | |
GOP Structure | IPPPP, IBPBP, IBBPB,IBBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG1 Layer 2, LC-AAC,HE-AAC(v2) |
Sampling rate | 48Kbps | |
Resolution | 24 bit | |
Bitrate | 32Kbps~384Kbps (each channel) | |
Multiplexing | 1 ASI Input for multiplexing | |
Stream output | 2 × ASI outputs, BNC interface | |
MPTS or 8×SPTS over UDP, 10/100Base-T Ethernet interface | ||
System function | LCD/keyboard operating, SNMP/web management Chinese-English control interface | |
Ethernet software upgrade | ||
General | Dimensions(WxDxH) | 482mm×455mm×44.5mm |
Approx weight | 4kg | |
Temperature range | 0~45°C(operation),-20~80°C(storage) | |
Power Supply | AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz | |
Power consumption | 25W | |
