Optical Line Protection System (OLP)
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Sichuan, China (Mainland) |
|---|

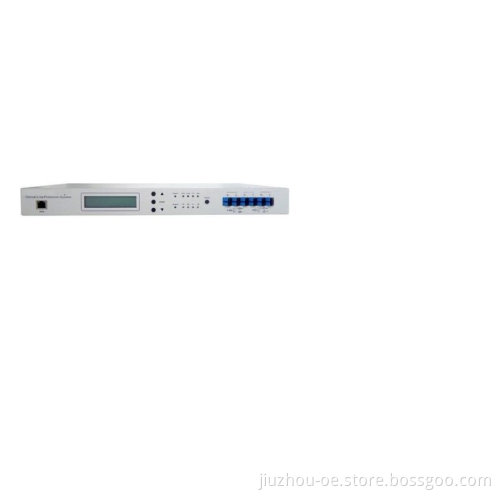

Optical Line Protection System (OLP) uses vacant optical fiber from different route to build a backup path. By real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold . OLP will provide you a more reliable, flexible and high secure optical transmission network .It is widely used for protecting backbone and important business line. OLP Shown as the figure below Specifications
| 1:1 | 1+1 | 1-1 |
Work Working wavelength nm | 1310±50nm and 1550±50nm | ||
Monitoring Power range dBm | +23~-50 | ||
Monitoring power accuracy dB | ±0.25 | ||
Monitoring power resolution dB | ±0.01 | ||
Return loss dB | ≥55 | ||
PDL dB | ≤0.05 | ||
WDL dB | ≤0.1 | ||
Insertion loss dB | TX<1.2,RX<1.2 | TX<4,RX<1.2 | <1.2 |
Switching time ms | <35 | <15 | <15 |
Durability(Life) times | >107 | ||
Operating temperature °C | -10~+60°C | ||
Storage temperature °C | -20~+75°C | ||
Power supply V | DC(36-72)V and AC(85-264)V/50~60Hz,dual power supply | ||
Power-down Condition | hold in working path or switch to backup path | ||
Optical connectors | SC/PC | ||
Size | Standard 19' 1U/4U | ||
| Ordering Type | |||
1U | GJ-OLP-1U-1:1 | GJ-OLP-1U-1+1 | GJ-OLP-1U-1-1 | |
4U | Chassis | GJ-OLP-4U | ||
Module | GJ-OLP-M-1:1 | GJ-OLP-M-1+1 | GJ-OLP-M-1-1 | |
4U OLP system with the chassis (including power module and manage module) and pluggable module. | ||||
