8 wires 6.2 inch resistive touch screen

  1.Product Name:  8 wires 6.2inch resistive touch screen G65-01     2.Specification:

Property	Value
Outside Dimension	Design drawing available
Viewing Area	Design drawing available
Active Area	Design drawing available
Surface Hardness	3H
Optical Clarity	80%↑
Operating Temperature	-20~60  Celsius degree
Endurance Test Strikes	Overlmillion
Circuit grade	DC5V
Lineraity	≤ 1.5%
Film Thickness	0.188mm
Class Thickness	1.8mm
Total Thickness	about 2.2mm
Operation Pressure	20g~110g
Storage Temperature	-20~70  Celsius degree
Isolation Resistance	20MΩ↑@ DC25V
Sealable against	dust,water,oil,static
Advantage	10 years manufactures
Warranty	One year

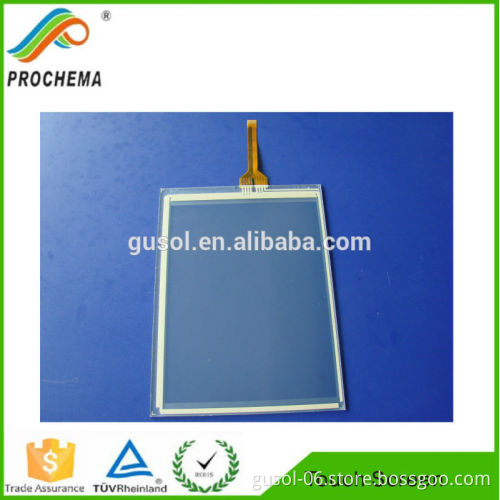

  3.Picture Show:   Mianyang Prochema Supplies 4 wire, 5 wire,8 wire resistive touch screen,in form of regular economical film+glass touch panel, film+film flexible touch, film+film+optical plastic backup unbreakable (anti burst) touch panel and OEM single layer capacitive touch key for wearable electronics touch and smart electronics
