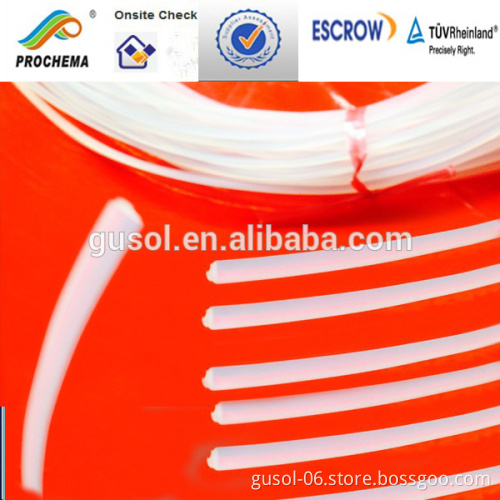

FEP 5mm triangle welding rod

 FEP  5mm triangle welding rod   FEP rod is made from FEP resin and prepared by the technology of extrusion and molding. It can be machined into various sealing parts and electric components. It can be used at the temperature range of -80 through +200    application:   1.Petrochemical and chemical processing    2.Electrical applications    3.Semi-Conductor Industry   4.Food, Beverage and Pharmaceutical industries    5.Laboratory applications     It is mainly used to  weld kinds of FEP products .   Characteristic 1. High and low temperature preservation 2. -200~200°C high temperature intensity better than F4 3. No-begriming ,and no-stagnant in tube 4. Security and insulation 5. Under 60HZ—60MHZ high and low temperature , permittivity is 2.1 6. If firing, and will still insulate 7. Voltaic are>165 seconds insulation 8. Erode preservation 9. Under high temperature, fluorin and alkali will reaction with PFA, no reaction with other acid. 10. Low water absorption<0.01% 11. No firing in air( oxygen index>95 vol.%)   Properties :

FEP
Items	Properties	Indicators
physical properties	specific gravity(g/cm³)	2.12~2.17
	meltingpoint(°C)	207
	melt index(g/10min)	5~25
electrical properties	tensile strength(Mpa)	27~29
	elongation at break(%)	250~300
	rigidity(SH)	D60~70
	coefficient of kinetic friction	0.2
mechanical properties	volume resistivity(CM)	≥10 18
	insulated breaking voltage(0.2mm)/(mv/m)	20
	dielectric constant 1MHz	2.1
	dielectric loss angle tangent 1MHz	≤0.003

    FEP electrode material performance:
1. Molten enhanced bonding, melt viscosity decreased, and there were no changes in performance compared with ptfe.This kind of resin can be directly processed into products using common thermoplastic molding method.
2. long-term use of FEP electrode temperature - 80-200 degrees, have excellent chemical corrosion resistance, for all chemical corrosion resistance, friction coefficient, the lowest in the plastic and good performance, the electric insulation is not affected by temperature, is regarded as "plastics king".Its resistance to chemicals and ptfe are similar, is better than partial fluorine ethylene.
3. the creep resistance and compression strength is better than teflon, high tensile strength, elongation of up to 100-300%.Good dielectric properties, resistance to radiation performance.Flame retardancy.

FEPelectrode product parameters
Core diameter: 3-10 (mm)
Welding current: 220 (A)
Working temperature: 100-200 (°C)
Type: FEP electrode
Diameter: 3-5 (mm)
Current amplitude: 100 (A)
Scope: electrical, plastic and other industries
Length: 1000000 (mm)    It is predominantly used in the constchemicalruction/fabrication of semiconductor wafer baskets, aggressive  baths/wet benches & custom made inert liquid enclosures.
Applications
Lining Bearing pads, seals, and electrical insulation Lining Bearing pads, seals, and electrical insulation, liner tube, insulator tubing. Specification  and  usage  of  FEP  rod:

Name	Diameter(mm)	Length(mm)	Application
Molded  rod	5-20	200	Anti-corrosion, sealing, antifriction, electric  insulating  parts
	25-100	100-150
FEP rods  are  compatible  to  corresponding  standard.


 Package : Plastic bag &carton  .  Customized is acceptable         Payment and shipping:         We also can offer you the following products :       PFA film ,PFA transparent tube, PFA capillary tube,PFA heat shrinkable tube,PFA rod, PFA welding rod,PFA rectangle tube, PFA Lab things, PFA processed parts etc       FEP film ,FEP sheet, FEP transparent tube, FEP capillary tube, FEP heat shrinkable tube, FEP rod, FEP welding rod, FEP rectangle tube, FEP Lab things,FEP gas sample bag, FEP processed parts etc.       PCTFE sheet, PCTFE rod,  PCTFE tube, PCTFE processed parts etc       PVDF film ,PVDF tube, PVDF rod, PVDF welding rod, PVDF PIEZO film ,PVDF processed parts etc.       Perfluorinated ion-exchanging  film ,ETFE film , PVF film    For quotation, please kindly contact us with below detail information to speed up our service:       1.Diameter   2.usage   3.Color   4.Quantity       Once we get your detail inquiry,we will reply you in 10 hours.   Wish you good business.
