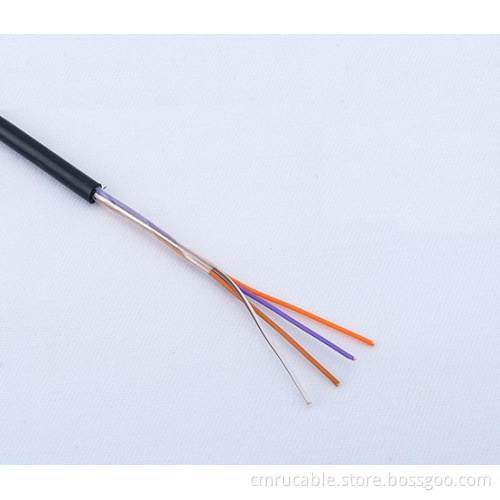

Plastic Insulated Telephone Communication Cable used in the Urban Area
1. Application:
This product is suitable to the telephone communication system in the urban area.
2. Cable Types & Structures:
HYV: Solid copper conductor, PVC insulation, PVC sheath telephone cables
HYA: Solid copper conductor, PVC insulation, tide-shield type comprehensive sheath telephone cables
HYAC: Solid copper conductor, Polythere insulation,PVC sheath telephone cables
3. Specification data and weight:
HYV Type
|
Pair No. |
Solid wire diameter |
|||||
|
0.5 mm |
0.6 mm |
0.7 mm |
||||
|
O.D. (mm) |
Weight (kg/km) |
O.D. (mm) |
Weight (kg/km) |
O.D. (mm) |
Weight (kg/km) |
|
|
5 10 |
9.0 11.0 |
88.1 124.4 |
10.0 12.0 |
104.2 152.7 |
11 13 |
124.2 187.5 |
|
15 20 |
12.0 13.0 |
161.1 196.3 |
14.0 15.0 |
202.2 248.9 |
15 17 |
250.8 311.6 |
|
25 30 |
14.0 15.0 |
229.6 365.8 |
16.0 17.0 |
294.2 339.2 |
18 20 |
370.6 496.6 |
|
40 50 |
17.0 19.0 |
330.3 430.0 |
20.0 22.0 |
465.9 552.4 |
23 25 |
588 702.3 |
|
80 100 |
23.0 25.0 |
620.4 740.7 |
27.0 29.0 |
811.4 975.3 |
31 34 |
1102.1 1324.6 |
|
150 200 |
31.0 35.0 |
1096.8 1391.9 |
35.0 40.0 |
1449.8 1855.3 |
40 45 |
1873.9 2410.9 |
|
300 400 |
41.0 47.0 |
2020.7 2620.7 |
48.0 55.0 |
2560 3635.1 |
55 |
3572.3 |
HYAC Type
|
Specification |
Rope structure |
Approx. dimension of cable (mm) |
Calculated weight (kg/km) |
||
|
D1 |
D2 |
H |
|||
|
10x2x0.5 15x2x0.5 |
7/1.3 7/1.6 |
6.5 8.0 |
11.0 13.0 |
19 24 |
230 352 |
|
20x2x0.5 25x2x0.5 |
7/1.8 7/1.8 |
8.5 8.5 |
14.5 15.5 |
25 26 |
420 460 |
|
30x2x0.5 50x2x0.5 |
7/1.8 7/2.0 |
8.5 9.9 |
16.5 19.5 |
27 31 |
490 560 |
|
80x2x0.5 100x2x0.5 |
7/2.0 7/2.0 |
10.0 10.5 |
24.5 26.5 |
37 40 |
930 1100 |
HYA type
|
Specification |
Approx. dimension of cable (mm) |
Calculated weight (kg/km) |
Specification |
Approx. dimension of cable (mm) |
Calculated weight (kg/km) |
|
10x2x0.4 50x2x0.4 |
9 13 |
75.2 229.2 |
100x2x0.5 600x2x0.5 |
22 46 |
591.3 3062.9 |
|
100x2x0.4 600x2x0.4 |
18 38 |
412.2 2044.1 |
1000x2x0.5 1600x2x0.5 |
58 72 |
4979.5 7867.7 |
|
1000x2x0.4 2400x2x0.4 |
48 72 |
3314.8 7708.1 |
10x2x0.6 50x2x0.6 |
11 19 |
153.2 457.7 |
|
10x2x0.5 50x2x0.5 |
10 17 |
97.1 230.0 |
600x2x0.6 1000x2x0.6 |
55 70 |
4416.5 7226.8 |
