Radio frequency coxial cable
1. Application:
The cable is applicable for radio frequency signal transmission of radio communication and relative electronic equipments.
2. Operating:
Operating temperature: SYV type cables – 40 ℃ ~ + 70℃
Relative humidity: 98% at temp of 40℃
Min. insulation temperature: -15℃
E.min bending radium: no less than 5 times of cable O.D. in door, no less than 10 times of cable O.D. outdoor.
3. Type and structure:

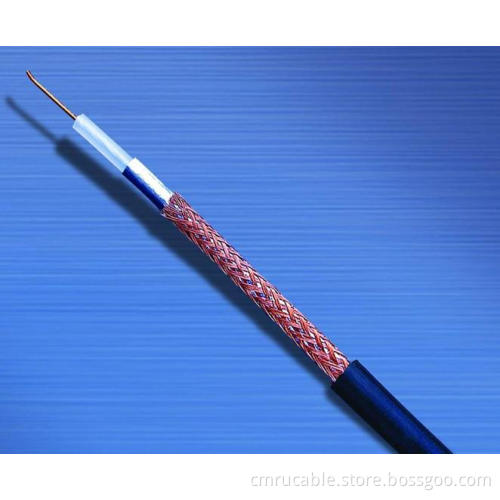

SYV: copper conductor, PE insulated, PVC sheath coaxial radio frequency cable
4. Specification data:
|
Type |
Inner cond. (mm) |
Insulation dia. (mm) |
Outer cond. (mm) |
Sheath (mm) |
Weight (kg/km) |
|||
|
Wire no./dia. |
O.D. |
Type |
Max. O.D. |
Thickness |
O.D |
|||
|
SYV-50-2-2 |
7/0.09 |
0.27 |
0.87±0.05 |
Single layer braid |
1.40 |
0.29 |
19±0.1 |
7.56 |
|
SYV-50-7-2 |
7/0.76 |
2.28 |
7.3±0.25 |
Single layer braid |
9.30 |
1.0 |
11.2±0.3 |
244.2 |
|
SYV-50-23-1 |
19/1.37 |
6.85 |
23±1.0 |
Single layer braid |
25.4 |
2.2 |
28.8±0.7 |
1181.8 |
|
SYV-50-28-2 |
19/1.65 |
8.25 |
28±1.0 |
Braid and steel tape |
30.6 |
2.4 |
34.5±0.8 |
1501.2 |
|
SYV -75-2 |
7/0.08 |
0.24 |
1.5±0.15 |
Single layer braid |
2.10 |
0.43 |
2.90±0.1 |
15.77 |
