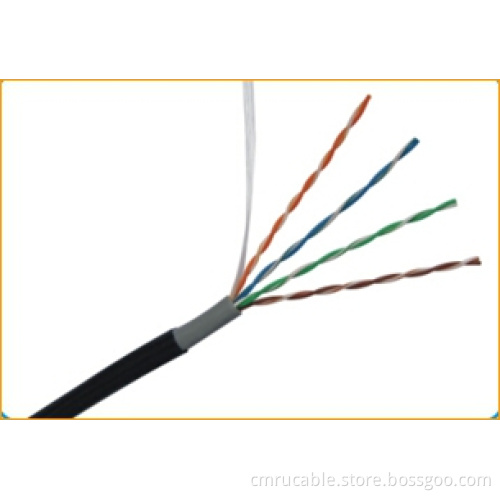

Cat.5 4prs unshielded outdoor water - proof cable
Your message must be between 20 to 2000 characters
Contact Now
Product Features:
Structure: Single bare copper wire, polyethylene (PE) insulation, two separately insulated conductors twisted together, PET film and weather – proof black polyethylene jacket
Standard: ISO YD/T 1019-2001; ANSI/TIA-568-B.2-2001; ISO/IEC1801, suitable for outdoor overhead and pipeline utilization and moistureproof. It supports 10Baset, 100Baset, ATM ethernet, token-ring TP-PMD audio, telephone and multimedia of all kinds network.
Product Property:
|
Frequency MHZ |
Characteristic impedance ohm |
Return loss dB |
Attenuation dB/100m |
NEXT dB |
PSNEXT dB |
ACR dB |
ELFEXT dB |
PSELFEXT dB |
|
0.772 |
100±15 |
19.4 |
1.8 |
74.1 |
64.0 |
65.0 |
66.0 |
63.0 |
|
1.0 |
100±15 |
20.0 |
2.0 |
67.7 |
62.3 |
63.0 |
63.8 |
60.8 |
|
4.0 |
100±15 |
23.0 |
4.1 |
60.2 |
53.3 |
62.0 |
51.7 |
48.7 |
|
8.0 |
100±15 |
24.5 |
5.8 |
59.2 |
48.8 |
46.0 |
45.7 |
42.7 |
|
10.0 |
100±15 |
25.0 |
6.5 |
57.9 |
47.3 |
44.0 |
43.8 |
40.8 |
|
16.0 |
100±15 |
25.0 |
8.2 |
55.5 |
44.3 |
39.0 |
39.7 |
36.7 |
|
20.0 |
100±15 |
25.0 |
9.3 |
53.5 |
42.8 |
37.0 |
37.7 |
34.7 |
|
25.0 |
100±15 |
24.3 |
10.4 |
51.8 |
41.3 |
34.0 |
35.8 |
32.8 |
|
31.25 |
100±15 |
23.6 |
11.7 |
46.7 |
39.9 |
31.0 |
33.9 |
30.9 |
|
62.5 |
100±15 |
21.5 |
17.0 |
44.7 |
35.4 |
21.0 |
27.8 |
24.8 |
|
100 |
100±15 |
20.1 |
22.0 |
38.1 |
32.3 |
13.0 |
23.8 |
20.8 |
