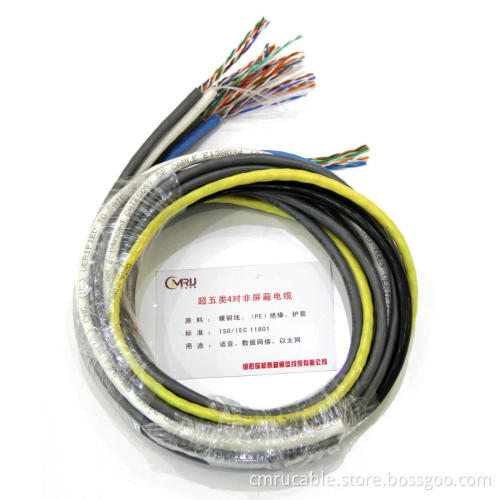

Cat.5 4prs unshielded cable(single-stranded)
Your message must be between 20 to 2000 characters
Contact Now
Product Features:
Structure: Single bare copper wire, polyethylene insulation, two separately insulated conductors twisted together, PVC or low smoke halogen-free and flame resistance cable jacket.
Standard: ISO/IEC 11801, including audio data, ISDN, fast ethernet.
Product Property:
|
Frequency MHZ |
Characteristic impedance ohm |
Return loss dB |
Attenuation dB/100m |
NEXT dB |
PSNEXT dB |
ACR dB |
ELFEXT dB |
PSELFEXT dB |
|
0.772 |
100±15 |
19.4 |
1.8 |
74.1 |
64.0 |
65.0 |
66.0 |
63.0 |
|
1.0 |
100±15 |
20.0 |
2.0 |
67.7 |
62.3 |
63.0 |
63.8 |
60.5 |
|
4.0 |
100±15 |
23.0 |
4.1 |
60.2 |
53.3 |
52.0 |
51.7 |
48.7 |
|
8.0 |
100±15 |
24.5 |
5.8 |
59.2 |
48.8 |
46.0 |
45.7 |
42.7 |
|
10.0 |
100±15 |
25.0 |
6.5 |
57.9 |
47.3 |
44.0 |
43.8 |
40.8 |
|
16.0 |
100±15 |
25.0 |
8.2 |
55.5 |
44.3 |
39.0 |
39.7 |
36.7 |
|
20.0 |
100±15 |
25.0 |
9.3 |
53.5 |
42.8 |
37.0 |
37.7 |
34.7 |
|
25.0 |
100±15 |
24.3 |
10.4 |
51.8 |
41.3 |
34.0 |
35.8 |
32.8 |
|
31.3 |
100±15 |
23.6 |
11.7 |
46.7 |
39.9 |
31.0 |
33.9 |
30.6 |
|
62.5 |
100±15 |
21.5 |
17.0 |
44.7 |
35.4 |
21.0 |
27.8 |
24.8 |
|
100 |
100±15 |
20.1 |
22.0 |
38.1 |
32.3 |
13.0 |
23.8 |
20.8 |
|
Frequency MHZ |
Characteristic impedance ohm |
Return loss dB |
Attenuation dB/100m |
NEXT dB |
PSNEXT dB |
ACR dB |
ELFEXT dB |
PSELFEXT dB |
|
0.772 |
100±15 |
20.5 |
1.8 |
72.1 |
68.0 |
70.0 |
72.0 |
71.0 |
|
1.0 |
100±15 |
23.0 |
2.1 |
70.9 |
65.3 |
68.0 |
70.4 |
68.0 |
|
4.0 |
100±15 |
23.6 |
4.0 |
68.0 |
58.5 |
65.5 |
69.3 |
63.5 |
|
8.0 |
100±15 |
24.5 |
5.6 |
61.3 |
52.3 |
53.0 |
59.0 |
54.1 |
|
10.0 |
100±15 |
27.0 |
6.2 |
57.3 |
49.1 |
53.0 |
56.4 |
52.8 |
|
16.0 |
100±15 |
27.0 |
7.7 |
53.6 |
47.5 |
50.0 |
51.3 |
49.6 |
|
20.0 |
100±15 |
27.0 |
8.6 |
51.2 |
45.3 |
48.0 |
50.0 |
46.4 |
|
25.0 |
100±15 |
27.0 |
9.6 |
49.5 |
43.3 |
45.0 |
48.0 |
45.2 |
|
31.25 |
100±15 |
21.4 |
10.5 |
49.1 |
41.0 |
30. |
45.0 |
41.3 |
|
62.5 |
100±15 |
19.5 |
15.6 |
44.7 |
38.4 |
30.0 |
36.5 |
35.7 |
|
100 |
100±15 |
14.0 |
22.3 |
40.1 |
35.3 |
28.0 |
32.4 |
30.0 |
